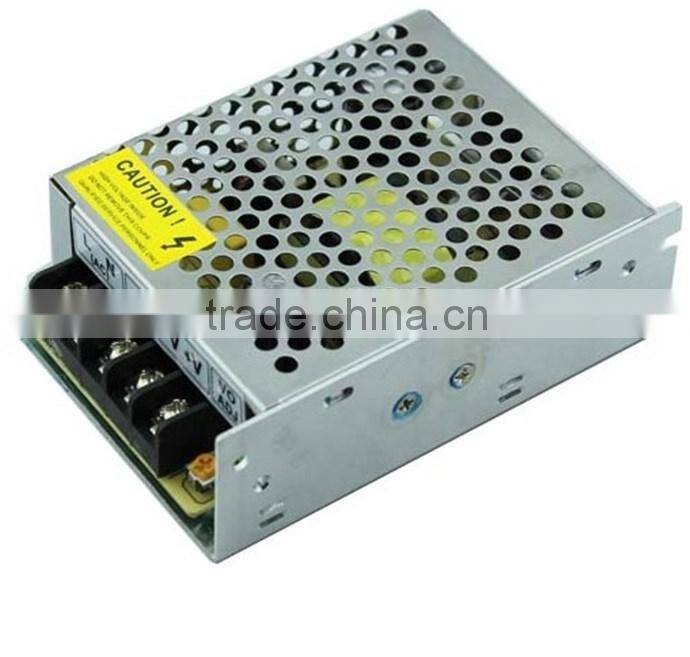

Help CenterLED Driver and Power Supply 24V 60W for Led Strip Light,led Module,led Wall Washer,led Cabinet Light
Related Products
-
LED Driver and Power Supply 24V 100W for Led Strip Light,led Module,led Wall Washer,led Cabinet LightNegotiableMOQ: 100 Pieces -
LED Driver and Power Supply 12V 100W for Led Strip Light,led Module,led Wall Washer,led Cabinet LightNegotiableMOQ: 100 Pieces
-
LED Driver and Power Supply 24V 400W for Led Strip Light,led Module,led Wall Washer,led Cabinet LightNegotiableMOQ: 100 Pieces
-
LED Driver and Power Supply 12V 25W for Led Strip Light,led Module,led Wall Washer,led Cabinet LightNegotiableMOQ: 100 Pieces
-
LED Driver and Power Supply 24V 25W for Led Strip Light,led Module,led Wall Washer,led Cabinet LightNegotiableMOQ: 100 Pieces
- 1. Model: 60W LED driver constant voltage model
- 2. Average life span: 50000hours
- 3. Waterproof level: IP20 level
- 4. Transform efficiency: more than 83%
- 5. Enter the time withstand 300VAC surge for 5 seconds.
- 6. The Constant Voltage design.
- 7. Certification:CCC
- 8. Warranty: 2 years
- 9.The use of the AC input.
- 10.Characteristics: high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. Suitable for LED lighting and moving sign applications.
| Products Model | PV-60-24 | |
| Output | Output Voltage | 24V±0.5V |
| Rated Output Voltage | 24V | |
| Output current | 0-2.5A | |
| Power | 60W | |
| Voltage Precision | ±5% | |
| Output Ripple | 480mVP-P | |
| Load Reulation | ±2% | |
| Start/Rise time | 500ms,20ms/230VAC | |
| Retention time | 20ms/230VAC | |
| Input | Input Voltage range | AC:110-265V |
| Input Frequency range | 50-60Hz | |
| PF values | >83% | |
| Leak Current | 0.25mA/240VAC | |
| Protection | Overload Protection | 110%-150% Output Current |
| Protection type : Hiccup mode | ||
| Working Protection | Working Temperature | -25℃-50℃ |
| Storage Temperature | -40℃-80℃ | |
| IP Rate | 20~90%RH non condensing, refer to IP20 | |
| Shake Proof | 10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes | |
| Temperature Coefficient | ±0.03%℃ (0-50℃) | |
| Others | Mean Free Error Time | 50KHours (25℃) |
| Dimesnsion | 110*78*37mm(L*W*H) | |
| Weight | 210g | |
Electrical Schematic
Outer packing (unit:mm)
1.Carton size: 45*25*24cm.
2.Qty: 50pcs packed in one carton.
3.Carton sealing was "H" shaped sealing.
4.The net weight of packing: 10.5kg.
| Warmly Reminder | ||||||||
| 1.Try to avoid the minefields, high-pressure area to install; | ||||||||
2.Ensure that the correct connection, in order to avoid short-circuit damage to components and trigger fires; | ||||||||
| 3.Connect the power supply is installed in a well ventilated place to ensure appropriate environmental temperature; | ||||||||
| 4.Prohibit live wiring, check to confirm wiring is correct, check the no short-circuit, then power; | ||||||||
| 5. If any problem occurs, do not make unauthorized repairs. If you have questions, please contact the supplier. |
Founded in 2004, Zhuhai PT Power Technology Co,. Ltd is committed to manufacturing LED switching power supplies, included Constant Voltage LED switching power supply, Constant Current switching power supply, Waterproof and Rainproof LED power supply, and Dimmable LED Drivers, etc. Our power supplies have been used for LED street light, LED panel light, LED strips, LED modules, LED flood light, LED down light, etc. Currently we've completed technical quality management systems. During the passed decade and more, we have expanded our business and become one of the most professional manufacturers in the market of LED Power supply, and succeed in developing high efficiency solution for LED Power supply. We are pleased to get your inquiry and we will come back to you ASAP. For further details, please log on our website () or visit our factory with face-to face meeting. Thank you!
1. How about the delivery time of products?
A: sample 3-7 days, bulk orders for more than 5 days.
2.Whether to accept small orders or not?
A: Yes, the minimum order quantity is more than 20pcs.
3. After sales service?
A: Provide two years of quality warranty.
4. Reply to the buyer's inquiries and provide timely quotation? How long?
A: working hours are very timely
(8.30 a.m. - 12:00 p.m.: 1.30 - 5:30)
5.Payment methods?
A: payment to delivery (30% deposit).L/C, T/T
6.Whether to provide OEM/ODM services? OEM/ODM orders / projects to complete the required time?
A: You can provide.
7.What are the certifications?
A:CCC, CE, ROHS, TUV, FC, SAA and other certification.
