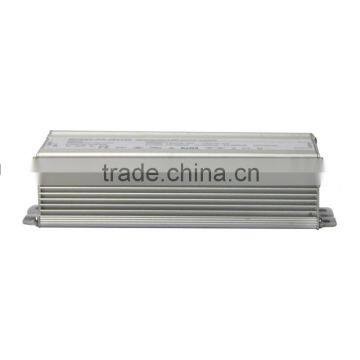

- 1. Model:2100mA LED constant current power supply
- 2. Average life span: 50000hours
- 3. Water proof level: IP67 level
- 4. Transform efficiency: more than 85%
- 5. Enter the time withstand 300VAC surge for 5 seconds.
- 7. The Voltage design (Voltage current mode).
- 8. Certification: CE, RoHS, CCC
- 9. Warranty: 3-years
- 10.The use of the AC input.
- 11.Characteristics: high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. And is suitable for LED lighting and moving sign applications.
| Product Specifications | |||||||||||||||||||
| Products Model | PA-362100 | ||||||||||||||||||
| Output | Output Voltage | 20V-36V | |||||||||||||||||
| Rated Output Current | 1800mA | 2100mA | |||||||||||||||||
| Output current | 1800mA±5% | 2100mA±5% | |||||||||||||||||
| Power | 64.8W | 75.6W | |||||||||||||||||
| Current Precision | ±5% | ||||||||||||||||||
| Output Ripple | 800mVP-P | ||||||||||||||||||
| Load Reulation | ±2% | ||||||||||||||||||
| Start/Rise time | 500ms,20ms/230VAC | ||||||||||||||||||
| Retention time | 20ms/230VAC | ||||||||||||||||||
| Input | Input Voltage range | 100-240VAC | |||||||||||||||||
| Input Frequency range | 47-63HZ | ||||||||||||||||||
| FP values | ≥0.9 | ||||||||||||||||||
| Effeciency | >85% | ||||||||||||||||||
| Leak Current | 0.25mA/240VAC | ||||||||||||||||||
| Protection | Overload Protection | ±5% Rated Current output | |||||||||||||||||
| Constant current restriction style protection | |||||||||||||||||||
| Over Voltage protection | 42-48V | ||||||||||||||||||
| Working Protection | Working Temperature | -25℃-50℃ | |||||||||||||||||
| Storage Temperature | -40℃-80℃ | ||||||||||||||||||
| IP Rate | 90%RH non condensing, refer to IP67 | ||||||||||||||||||
| Shake Proof | 10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes | ||||||||||||||||||
| Temperature Coefficient | ±0.03%℃ (0-50℃) | ||||||||||||||||||
| EMC | Security Standard | IP67 approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008 | |||||||||||||||||
| Withstand voltage | I/P-O/P:3.75KVAC,I/P-COVER:3.75KVAC,O/P-COVER:500VAC | ||||||||||||||||||
| Insulatuon Resistance | I/P-O/P:>100M Ohms/500VDC/25℃/70% RH | ||||||||||||||||||
| EMC | EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009 | ||||||||||||||||||
| Others | Mean Free Error Time | 50KHours (25℃) | |||||||||||||||||
| Dimesnsion | 153*53*36(L*W*H) | ||||||||||||||||||
| Weight | 450g | ||||||||||||||||||
| Production application | |||||||||||||||||||
| LED power supply is widely used in: LED panel light, LED wash wall lamp, LED project-light lamp, LED street light, LED light bar, etc | |||||||||||||||||||

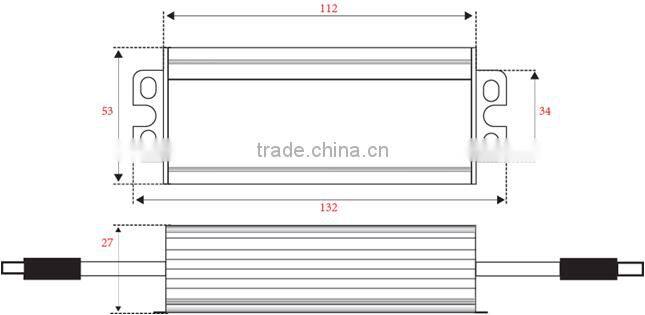

| Dimensions (Unit: mm): | |||||||||||||||||||
| |||||||||||||||||||
| Electrical schematics: | |||||||||||||||||||
| |||||||||||||||||||
| Graph: | |||||||||||||||||||
| |||||||||||||||||||
| Packing: | |||||||||||||||||||
| The outer packing(unit mm): | |||||||||||||||||||
| |||||||||||||||||||
| Packing Description | |||||||||||||||||||
| 1. Carton size: 32.5 * 28 * 20.5cm | |||||||||||||||||||
| 2. Total Total 20pcs products; | |||||||||||||||||||
| 3. Carton Sealing was "H" shaped sealing; | |||||||||||||||||||
| 4. The net amount (NW): 9KG; | |||||||||||||||||||
| Watch out | |||||||||||||||||||
| 1.Try to avoid the minefields, high-pressure area to install; | |||||||||||||||||||
| 2.Ensure that the correct connection, in order to avoid short-circuit damage to components and trigger fires; | |||||||||||||||||||
| 3.Connect the power supply is installed in a well ventilated place to ensure appropriate environmental temperature; | |||||||||||||||||||
| 4.Prohibit live wiring, check to confirm wiring is correct, check the no short-circuit, then power; | |||||||||||||||||||
| 5. If a problem occurs, do not make unauthorized repairs. If you have questions, please contact the supplier | |||||||||||||||||||
Found in 2004, Zhuhai Pt Power Technology Co,.ltd, is mainly focusing on LED POWER SUPPLY (Constant Current series, Constant Voltage series. Waterproof LED POWER SUPPLY).The power supply have been used in LED STREET LIGHT, LED PANEL LIGHTS, LED STRIP, LED MODULES, LED FLOOD LIGHTS, LED DOWN LIGHTS AND SO ON. Currently we got completed and technical quality management systems. During the passing ten years, we have become one of the most professional manufactories for LED Power supply, developing the high efficiency solution for LED Power supply, Right now, we have technical department, sales department, production department, engineers department etc comprehensive company.
1. How about the delivery time of products?
A: sample 3-7 days, bulk orders for more than 5 days.
2.Whether to accept small orders or not?
A: Yes, the minimum order quantity is more than 20pcs.
3. After sales service?
A: Provide two years of quality warranty.
4. Reply to the buyer's inquiries and provide timely quotation? How long?
A: working hours are very timely
(8.30 a.m. - 12:00 p.m.: 1.30 - 5:30)
5.Payment methods?
A: payment to delivery (30% deposit).L/C, T/T
6.Whether to provide OEM/ODM services? OEM/ODM orders / projects to complete the required time?
A: You can provide.
7.What are the certifications?
A:CCC, CE, ROHS, TUV, FC, SAA and other certification.
