Help CenterLithium Cell 3.2V 20Ah Prismatic Cell
Related Products
-
Hot Sell 1000w to 8000kw Portable Solar Power SystemsUS$ 1 - 1,500MOQ: 1 Piece -
Large Storage Battery Pack 48V Battery LiFeO4 LFP Battery 48V 200AhUS$ 1 - 1,500MOQ: 5 Pieces
-
Battery Cell Lipo 3.2V 25AhUS$ 1 - 35MOQ: 5 Pieces
-
Golf LiFeO4 LFP Battery 12V 20AhUS$ 1 - 1,500MOQ: 1 Piece
-
Large Storage LiFeO4 Lipo LFP Battery 12V 100AhUS$ 1 - 1,500MOQ: 5 Pieces
Specifications
Rechargeable Li-ion Lithium-ion LiFeO4 LFP battery prismatic cellvoltage:3.2V
capacity:20Ah
Our LFP battery is the most reliable rechargeable battery for the green future,Low total cost of ownership,high energy density(about 130Wh/Kg,it's 25%higher than others),high performance under the lower/higher temperaturer,longer cycle life(100%DOD,after 2000times cycles,capacity remains over80%) ,most safty&powerful,small in sizeA&light in weight,free maintenance,no pollution to environment.We can help you to low down the cost and maximum ur profit and with the best quality.
Cell type |
TB-027070180D -Fe-20Ah |
||
Typical Capacity |
21Ah |
0.5C discharge capacity |
|
Minimum Capacity |
20Ah |
||
Energy |
67.2Wh |
||
Internal Impedance |
≤4.0mΩ |
By AC 1 kHZ |
|
Nominal Voltage |
3.20V |
|
|
Cell Weight |
640±20g |
contain package |
|
Dimension |
70mm(L)*27mm(W)*180mm(H) |
||
End-of-charge Voltage |
3.65V |
At CC mode |
|
End-of-charge Current |
0.05C |
At CV mode |
|
End-of-discharge Voltage |
2.00V |
|
|
Charge Method |
0.5 C CC/CV |
180min |
|
Max Continuous Discharge current |
60A/3C |
Continuous Discharge Time:20 minutes |
|
Max pulse Discharge Current |
100A/5C |
Continuous Discharge Time: 5 seconds |
|
Cycle Life |
≥2000cycles |
1C Continual Discharge : ( 100% DOD) After 2000cycle,capacity more than 80% nominal capacity |
|
|
Operating Temperature Range |
Charging Temperature |
0~55°C |
Ambient temperature Cell skin temperature must be <65°C |
|
Discharging Temperature |
-25~55°C |
Ambient temperature Cell skin temperature not exceed 80°C |
|
Storage Temperature |
-20~35°C |
Recommended temperature range for long term storage is –10 ~ +20° |
|
Shelf Life |
2year |
Typical value from ship state |
|
Appearance |
Without break, scratch, distortion, contamination, leakage and so on |
||
Applications:
·Electric Tools
·Electric Toys And Models
·Portable Power Resources
·Field Medical Treatment
·Prospecting Equipment
·Lineless Lawn Mowers
·Vacuum Cleaners
·Portable Word Processors
·Computer Terminals And Calculators
·Portable TVs
·Tape Recorders
·Lighting.
·Public Power Systems
·Private Solar Systems
·Wind Power
·Lawn Lights
·Street Lamps
·Traffic Lights
·Railway Signal Lamps And Signal Communication Stations

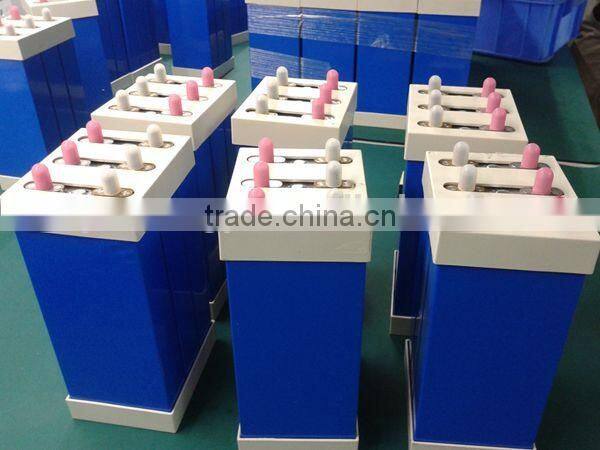

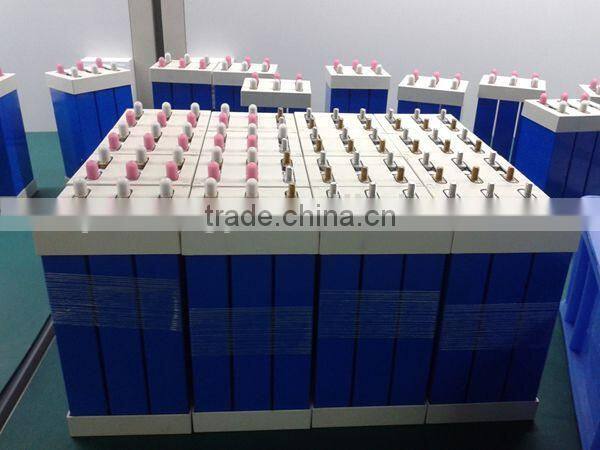

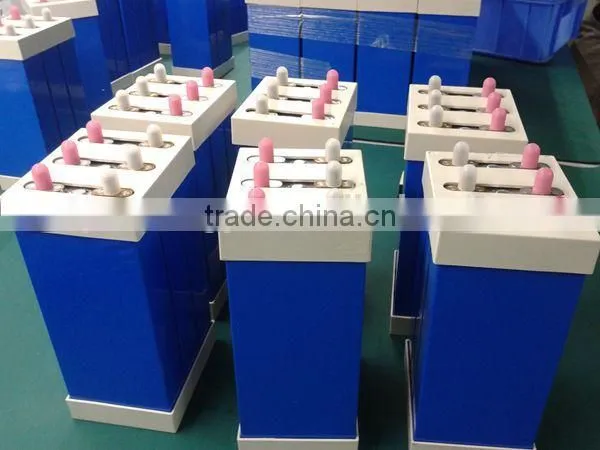

product show:
contact us if you have any batteries inquiry!
