High capacity battery lithium ion 12Volt

Specifications

High capacity battery lithium ion 12Volt
1.lithium ion battery type
2.Lead acid battery replacement
3.Have UN38.3 certificate

High capacity battery lithium ion 12Volt


1.Long lifespan
2.Lead acid battery replacement
3.Used for Electric scooter
4.UN38.3 certification

 Specification:

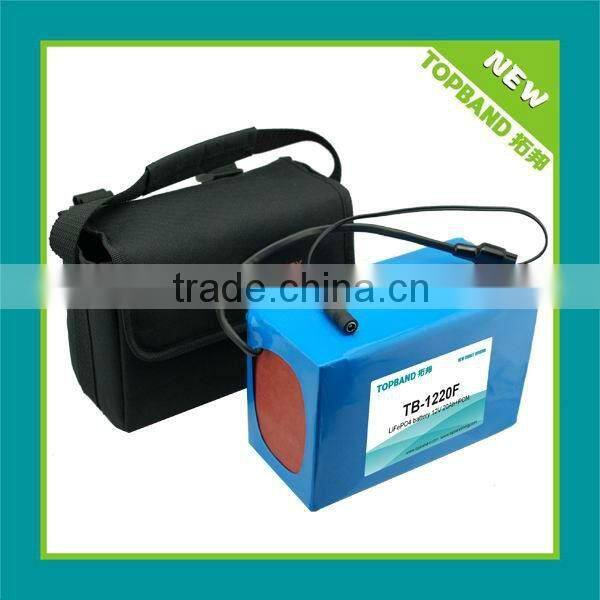

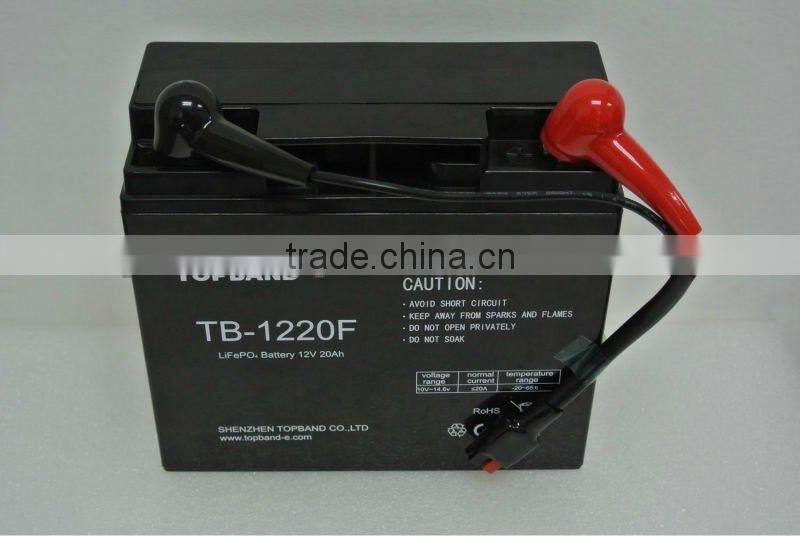

1	Model	TB-1220F-1
2.	Type	lithium ion battery
3.	Normal voltage	12V
4.	Normal capacity	20Ah
5.	Working voltage range	9.2V~14.6V
6.	Max discharge current(Amps)	40A
7.	Continuous discharge current	20A
8.	Max dimension (mm)	185 * 85 * 120 mm
9.	Weight	2.9kg
10.	Working temperature:	0°C~45°C
11.	Discharging Temperature	-25°C~60°C
12.	Storage temperature	-20°C~65°C
13.	Application	Electric scooter



 Main Features:



 1. Battery lithium ion 12volt

2.Long lifespan



3.Lead acid battery replacement



4.Electric scooter



5. More light and more smaller



6. No pollution



7. Package material: PVE



 8. Have UN38.3 certification



 9.Long life, large capacity and good shock resistance



10.Low self-discharge and good discharge performance at low temperature



11.Strong charging acceptance and quick-charging capability



12.Strong over-discharge resistance and charge retention



13.Maintenance-free and no acid or water for maintenance in usage



14.Excellent high rate performance, and have obvious advantages in startup and climbing



15. High temperature performance



16. Environmental friendly



17. Lighter weight smaller size



18.Advanced battery management system protection







Why buy TOPBAND LiFePO4 battery?







1. Built-in Battery Management.



Every TOPBAND LiFePO4 battery have a built-in Electronic battery Management system(BMS), this system monitors every individual cell ensuring that the your battery can not be over-discharged or over charged (the biggest single cause of failure in lead acid batteries)



2. Longer Battery Life



A TOPBAND LiFePO4 battery have a nominal life of 2000cycles (charges/discharges) compared with a standard lead-acid battery, which is rated for up to 200cycles. This means that TOPBAND lithium battery will complete 10x more rounds of golf.



3. More Usable Power



Over90% of the charge in a TOPBAND LiFePO4 battery is available to power your trolley. This means more usable power from a TOPBAND LiFePO4 battery, making it much more efficient in powering your trolley.





4. 75% Lighter



The TOPBAND LiFePO4 battery weights only 2.95kg, light enough to pick up with two fingers! A lead acid battery is over 4 heavier at 12kg, this means that a TOPBAND  lithium battery is much easier to handle and puts less strain on you and your trolley.



5. Shorter charge time

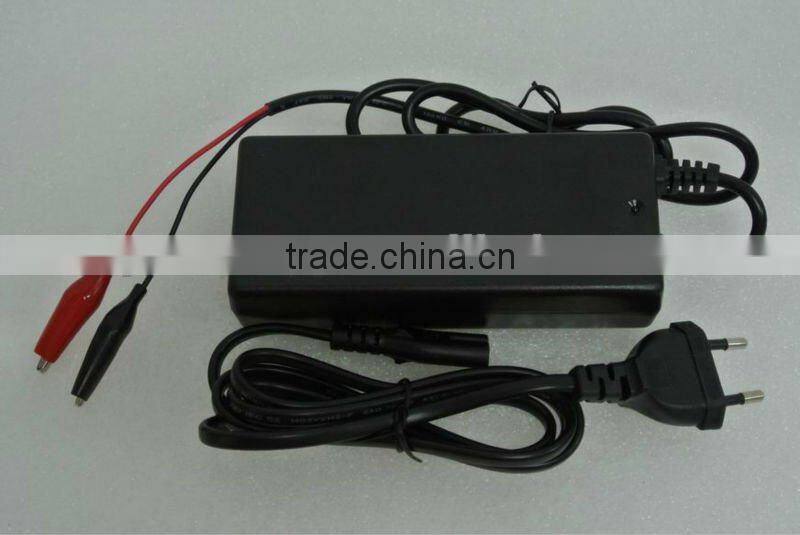

All TOPBAND LiFePO4 batteries use specially designed, electronically controlled chargers which will charge your TOPBAND LiFePO4 battey in less 5 hours, A lead-acid battery requires over10 hours charging to reach its maximum capacity. This means Less charging delay between rounds of golf.



6. Fits Virtually any electric trolley

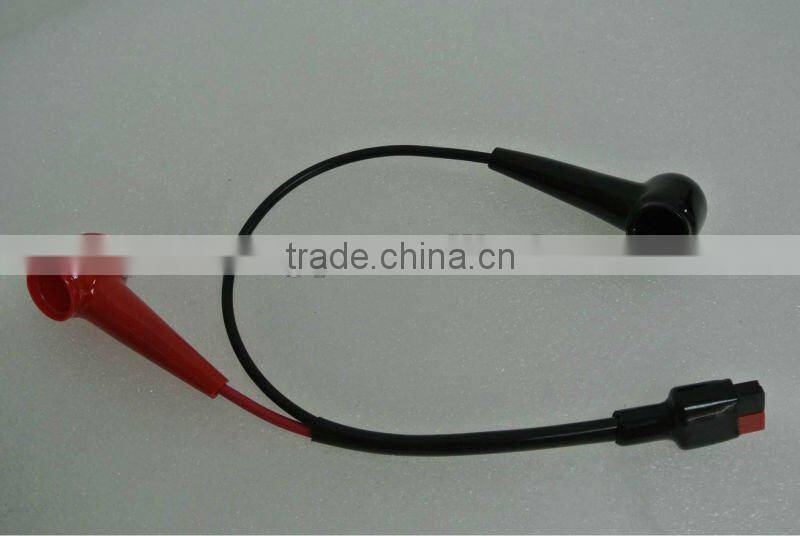

The TOPBAND LiFePO4 battery has a built-in Anderson connector along with an adaptor to fit most other popular trolleys using the standard Anderson connector.





Service provided By Us:





•  Quick response to clients' enquiries whithin 24hrs





•  Exclusive and unique solution can be provided to our clients by our experienced and  professional engineers and researchers team.



•  Solve the problems be prompt if anything wrong with our products' quality







Shenzhen TOPBAND Co., Ltd. was registered in so called “China Silicon Valley” Shenzhen Hi-tech Industrial Park in 1996. it was listed in Shenzhen Stock Exchange (the stock code as 002139) In 2007, and it’s the first listed company in intellectual control field.

 At present, TOPBAND has more than 3000 staffs, and covers an area of 50,000 square meters. Its total revenue is up to 15 million US dollars in 2011. Our products cover household appliances intelligent controllers, lithium batteries, HID, high-efficient illumination, motor, security, solar charge controller, industrial automation and digital electronics, there are many famous company in the world worked with us many years.





Quality System: HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001, TS16949





Certifications: UL, FCC, ETL, CE, RoHS, UN38.3



Cooperation Association: “TSINGHUA University Institute” & “Harbin Industrial University”



First-class Workshops and Equipments
