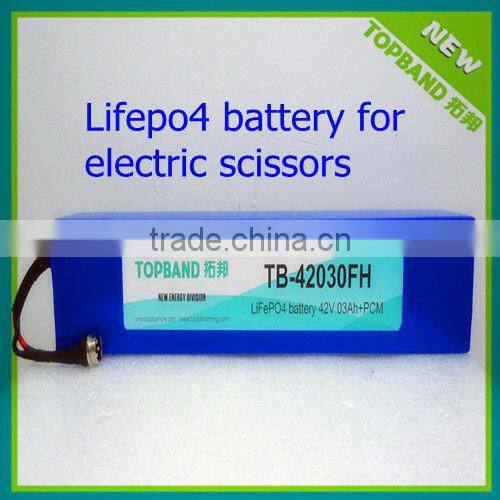

lifepo4 battery 42v 3ah TB-42030FH for electric scissors

Specifications

High performance
lighter and smaller
No memory effect
electric scissors battery

Topband lithium battery 42v 3ah can be used for electric scissors,medical equipment,or other e-tools.



Detailed data:



Items		Specifications
Model		TB-42030FH
Battery Type		LiFePO4
Nominal Voltage		44.8V
Nominal Capacity		3.0Ah
Internal Impedance		≤400mΩ
Nominal Charge Voltage		51.1±0.05 V
Discharge cut off Voltage		35.0±0.05V
Max .Charge Current		3A
Max Continue .Discharge Current		6A
Max  .Discharge pulse Current		12A (2s)
Charge method		CC/CV(constant current/constant voltage)
Cycle life		After 2000cycle,capacity more than 80% nominal capacity
	Weight		Approx.1.8kg
	Size(L*W*H)		395*75*54mm
	Operating Temperature		Charge:       0°C--45°C Discharge:   -10°C--60°C
Storage Temperature		5°C-35°C(25±5°C suggest 25±5°C)
Relative Humidity		65±20%



Technical Data:

Volatge: 42V

Capacity: 3Ah

Discharge current: 2C

Weight: 1.8kg

Size (Dimension):  395*75*54mm

Normal working temperature: - 20°C ~60°C, can safe work at 70°C

 Characteristic:

1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety

The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL and CE approved.

4. Light weight and smaller dimension

The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery

High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design

We can install many single cells in series and in parallel and it can fully discharge

6. Good thermal stability: - 20°C to 60°C

7. Back fast charge, good consistence, no memory effect, can equip battery charger.

Can be recharged anytime, no reduction of the capacity

7. Widely application, customize solutions, mass production, OEM/ODM/buyer label provided, factory passed TS 16949, ISO 9001:2008.



Features



Intrinsic safety:no explosion and will not catch fire under collision ,over charged or short circuit .Achieve CE and UL certificate which guarantees the safety of the Li-lon battery .



Environment-friendly: our battery without any hazardous and noxious substances , do no harm to the environment ,be rest assured to use .



Powerful:It can be able discharge  within minus 20 degree to 65 degree .



Long cycle life:up to 2000 cycle life,would be 8 times life of lead acid and 3 times of Ni-MH,2 times of most lithium batteries .



High rate capability:for all high power output application .



No memory effect:Always ready for charge and use ,with no need to charge after a full discharge .



Wide temperature range : It can be available for use when the temperature ranges from minus 20 degree to 70 degree .Extremely cold and extremely hot weather will not effect its performance .



Sample:



Application:



Connector

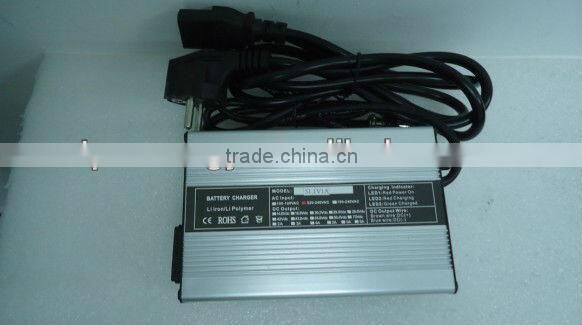

Aviation connector charger
