Portable small handheld laser POS system barcode scanner
Introduction:
HW-600 lets you free of cable and that’s more convenient than the traditional wired laser barcode scanner.
It reduces the odds of repairing caused by line fault. The highlight bicolor LED and 85DB beep sound will
meetthe needs of working under the noisy environment. You don’t have to waste time on checking if it finishes scanning or not. One host can support more than ten scanners. It has a storage function that can save
20,000 (14 bytes) 1D barcodes. It’s suitable for logistics, storage, wharf, etc.
Specification:
| Technical Parameters | |
| Input voltage | DC 5V±5% |
| Power | 108mw(operating mode); 20mw(standby mode); 150mw(maximum peak) |
| Power supply | The keyboard interface host supply;Rs-232 external or host supply |
| current | 50ma(operating mode); 10ma(standby mode); 100ma(maximum peak) |
| Light source | Visible laser 650nm |
| Static protection | 15kv |
| Laser level | National laser safety standard Class1 |
| Depth of scanning field | 3-9cm(0.1mm bar width); 3.5-45cm(0.3mm bar width) |
| Scanning width | 5mm~30cm |
| Baud rate | RS232baudrate: 2400-38400 |
| Decoding speed | 120times/sec |
| Bar width | Maximum 0.1mm(4mils) |
| Barcode type |
UPC-A, UPC-E, EAN-13, EAN8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5,Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY,UK/PLESSEY,UCC/EAN128 code. |
| Prompting mode | LED, beep sound |
| System interface | Built-in PS/2 keyboard, RS-232 serial, standard 2.0USB interface |
| Trigger mode |
Trigger buttons, automatic successive scanning, infrared successive scanning, holder automatic scanning(optional) |
| Scanner size | LxWxH: 10.80cm x 6.50cm x 14.50cm |
| Weight | 158g(without the receiver) |
| Shell material | ABS+PVC+PC |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 60℃ |
| Operating humidity | 0-95% |
| Electromagnetic interference | According to en8001,par1 standard |
| Dustproof waterproof | According to iec529,ip42 standard |
| Shock resistance | Pass 1.5m free fall test |
| Battery | 1000MA Lithium Ion Battery |
| Charging time | 3hrs full charged |
| Color | Black or gray |
| Communication frequency | 433MHZ |
| Channel setting | 32 channels and ID code setting(for more, need to be customized) |
| Memory | 512K(20,000 14-bytes 1D barcodes, capacity need to be customized) |
| Communication distance | The visible distance can be 500m in the open space |

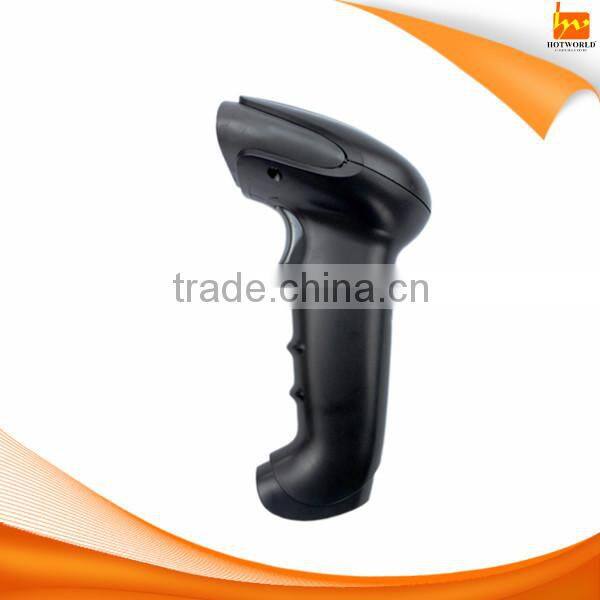

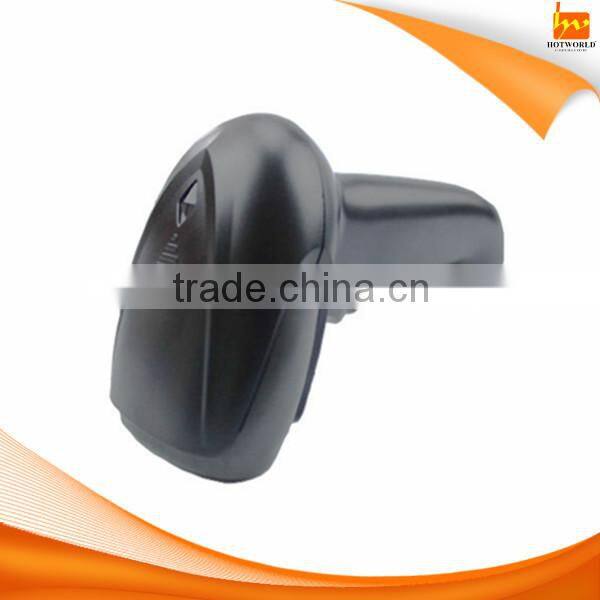

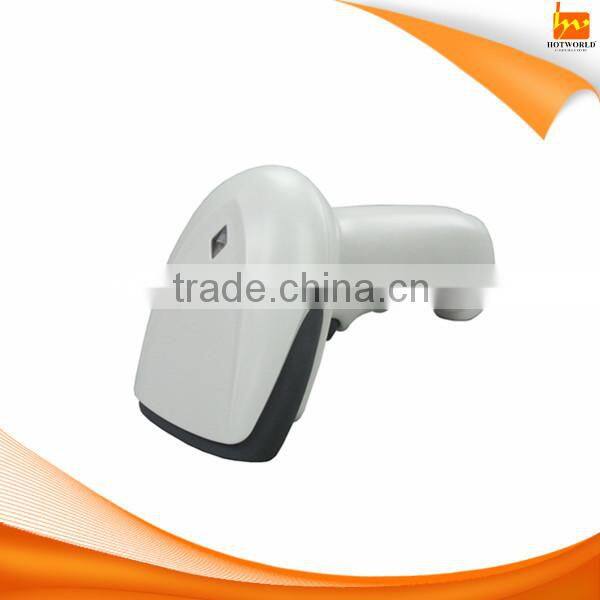

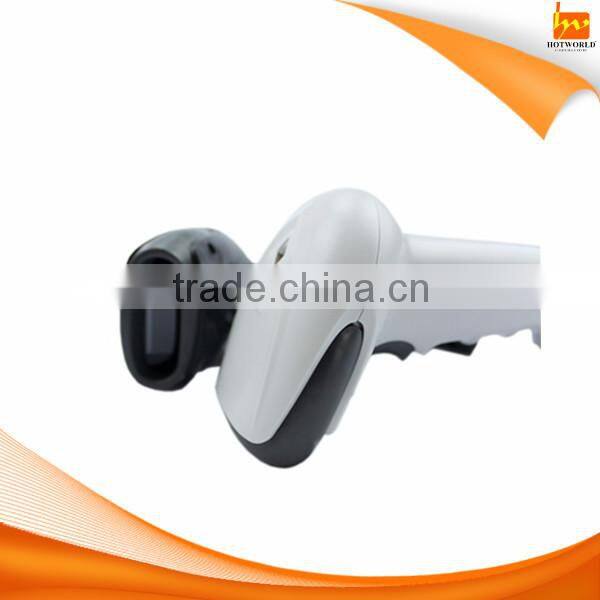

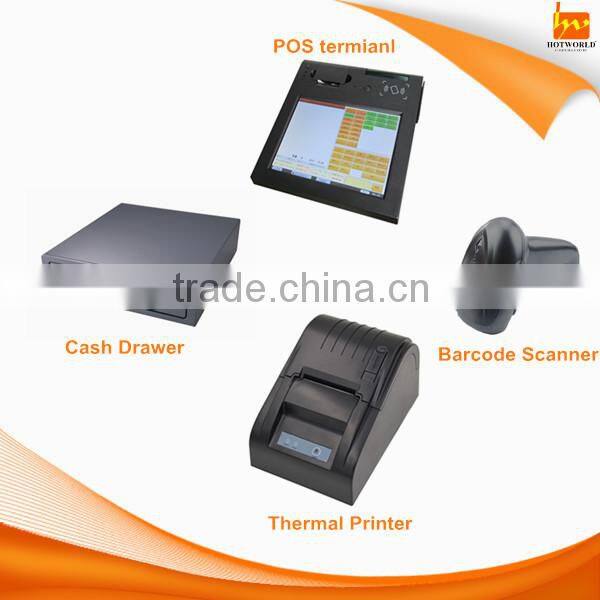

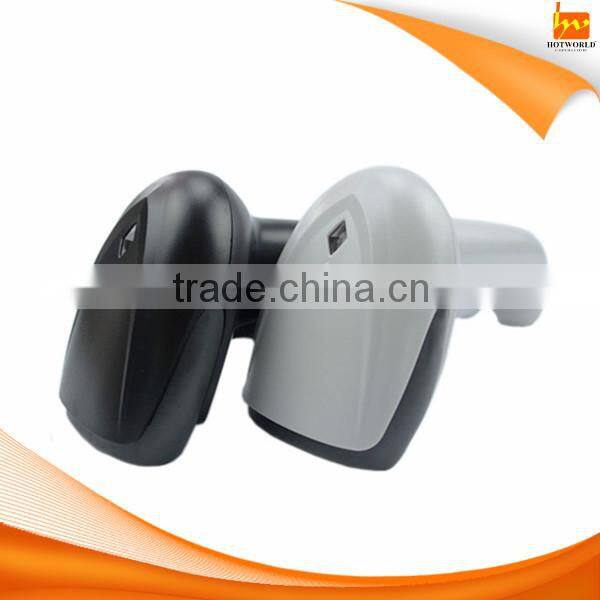

Detailed Pictures:
Payment: We accept T/T, Western Union, MoneyGram.
