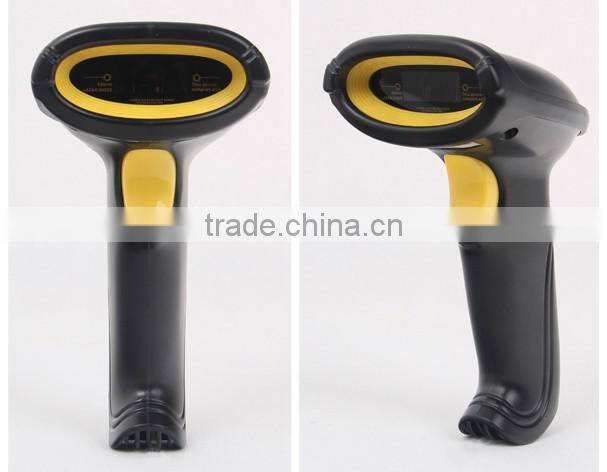

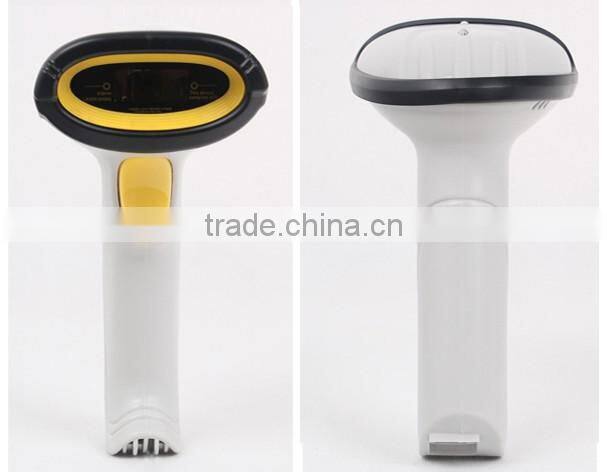

1D Wireless 30m Laser Barcode Scanner

Material

ABS+PC+PVC

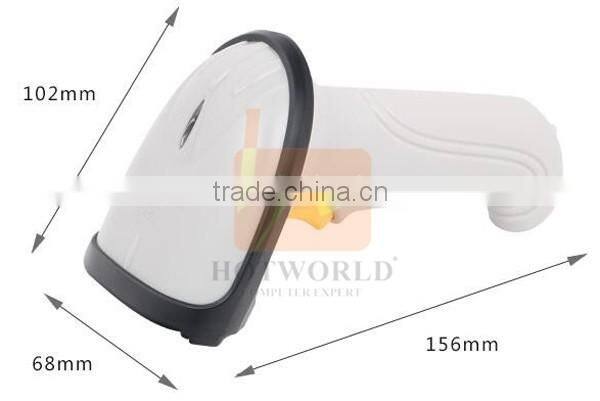

Size

L*W*H: 93mm*88mm*160mm

Power supply

DC 5V ±5%

Power

180mw(operating); 25mw(standby); 360mw(MAX)

Battery

3.7V  750mAH  Lithium polymer battery

Charging time

2 hours

Weight

136g(without cable)

Performance Parameters

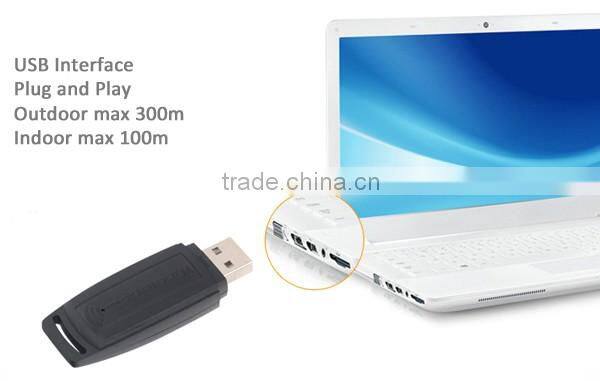

Interface

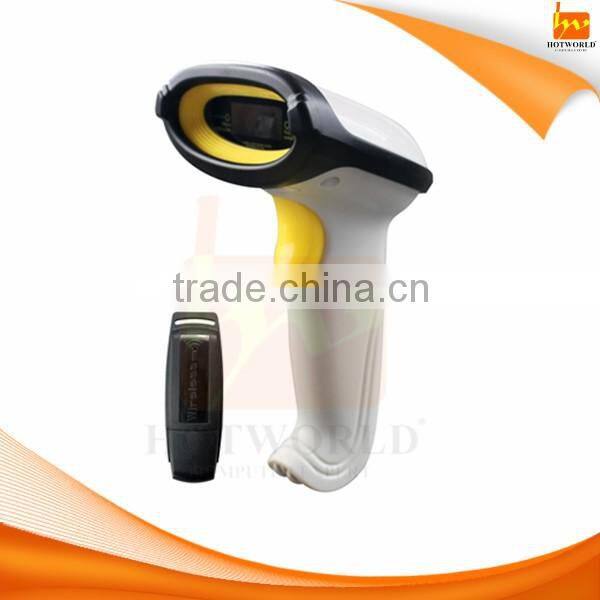

USB wired/wireless

Transmission Distance

2.4G 30M / Bluetooth 10M

Light Source

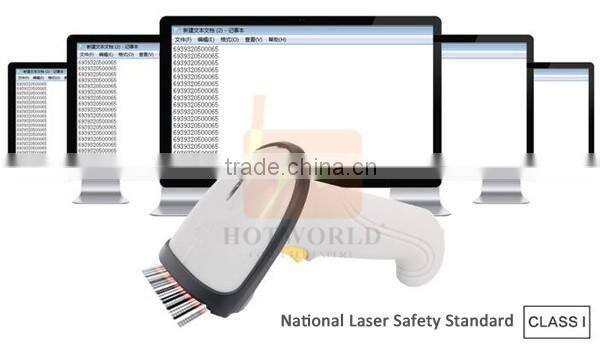

Laser LED 650± 20nm (National laser safety standard class 1)

Storage

64K(About 3500 14b id barcodes)(the memory capacity can be customized)

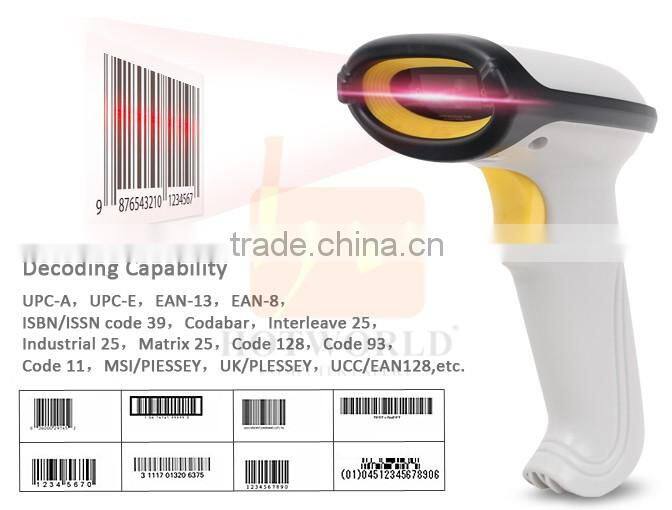

Decoding capability

UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN code 39,Codabar,Interleave 25,Industrial 25,Matrix 25,Code 128,Code 93,Code 11,MSI/PIESSEY,UK/PLESSEY,UCC/EAN128,etc.

Resolution

Minimum 0.1mm(4mils)

Depth of field

3-9cm(0.1mm bar width);3.5-45cm(0.3mm bar width)

Decoding speed

200scans/sec

Error rate

1/5 million

Trigger mode

Manual trigger;auto continuous scanning;Infrared auto scanning,stand auto scanning(optional)

Sensing distance

25cm (250cm2)  20cm(100cm2)   5cm(small area)

Sensing delay

2sec/time

Sensing speed

100times/sec

Reading width

60mm at30mm(from objects);98mm at100mm(from objects)

Reading distance

10-600mm  reading pitch60º reading dip angle 45º

Scanning width

5cm-30cm

Prompt mode

Buzzer, indicator light

Contrast

30%

Scan angles

Roll30°,Pitch75°,Yaw65°

Cylinder Horizontal

Diameter 35mm

Envionment Parameters

IP Grade

IP 54

Operating Temp

0 to 50 ºC / 32 to 122 ºF

Storage Temp

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

20 - 85% (non-condensing)

Storage Humidity

20 - 85% (non-condensing)

ESD protection

15KV air discharge

Shock resistance

1.2m free fall on concrete surface
