Die Spotting Machine for Mould Industry DFM3020-300

Die Spotting Machine for Mould Industry DFM3020-300 photo-1

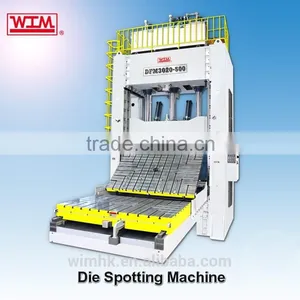

Die Spotting Machine for Mould Industry DFM3020-300 photo-2
US$ 1 - 400,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin China
Brand Name WIM
Model Number DFM3020-300
Voltage 220V/380V
Power(W) 37kW
Dimension(L*W*H) 8250x5715x8400
Weight 85ton
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Die Spotting Machine for Mould Industry

Specification for DFM3020-300
ing capacity
ton
300
Max.lifting capacity
ton
87
Daylight
mm
2400
Work table size
mm
3000 × 2000
Adaptor reversing capacity
ton
12
Bolster loading capacity
ton
24
Fast ascending/descending speed
mm/sec
70
Slow ascending/descending speed
mm/sec
15
Pressing speed
mm/sec
0-15
Main motor power
kW
37
Oil tank capacity
L
1600
Floor space require (Length × Width)
mm
8250 × 5715
Machine height
mm
8400
Machine weight
ton
84
Certifications
Company information

Worldwide Industrial Machinery Ltd.

Hong Kong Office:Flat A,9/F,Queen's Center, 58-64 Queen's Road East,Wan Chai,Hong Kong
China Factory: 128 Gao Ying Road, Gao Ying, Da Lang, Dongguan city, Guang Dong, China
Post Code: 523771
Tel: (86)769-8311-8946
Fax: (86)769-8311-9736
Website: www.wim.hk

WIM

has developed the first 6-axis Coordinate Advance Milling and (Deep Hole) Drilling machine in Asia. In Multi-function Deep Hole Drilling Machine, we have been recognized by majority of the customer as the Leader of quality and craftsmanship throughout the country.
Our products exported all over the world in different country: UK, USA, Canada, Australia, South Korea, India, Portugal, Malaysia and Thailand, etc.

Our business and products

1.Coordinate Advance Milling and Drilling Machine

2.Duplex Milling Machine
3.Horizontal CNC Milling Machine
4.Multifunction Horizontal CNC Deep Hole Drilling Machine
5.Customized Machine
6.CNC Deep Hole Drilling Machine for Shaft

Our Competitive Advantages

1.Our company is not only a machinery builder, we are also a user.
2.We use Fanuc Control System in all CNC machine to insure the control reliability.
3.All machine beds are machined by Japan SNK Five Face Double Column Machining Center. One time clamping until finish ,guarantee machine accuracy.
4.All machine needs to pass a loading test to check its capability while carry maximum weight. Using England Renishaw Laser Calibration for all ballscrew and rotary table.

Packing & Delivery
FAQ

Q1.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q2. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Please refer to our website for more information. www.wim.hk
