3000kg Front Loader With CE Certificate

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	SZM/NEO/CSZMC
Model Number	930T	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	650021603050mm	Rated Load	3000KG
Certification	CE	Warranty	18 months or 2000hours
After-sales Service Provided	Engineers available to service machinery overseas

WHEEL LOADER 936T

Model	930T WHEEL LOADER
Engine	Model:		YT4B2Z-24
	Engine type:		In-line arrangement, water-cooled, six-cylinder turbo diesel Engine
	Rated Power:		74.9KW (102HP)
	Rated Speed:		2400 R/MIN (RPM)
Torque Converter And Transmission system	Model: YJ280B
	Type: Counter Shaft Power shift
	Gear: 2Forward, 1 Reverse
	Max Travel Speed: 35.1km/h
	Hydraulic Oil Flow Pressure: 12.5MPa
	Shift gear control oil pressure: 1.073 ~1.369MPa
	Rated input speed: 2400 (rpm)
Bucket	Bucket Capacity:				1.5 m3
	Bucket width:				2120mm
	Bucket type:				Heavy-duty bolt on teeth
	Max. Breakout Force:				102KN
	Rated Load:				3000kg
	Operating Weight:				6700kg
Overall Dimensions	Overall Length:					(Bucket on ground position): 6300mm
	Overall Height:					(Ground to Cab Top)2850mm
	Ground to exhaust pipe:					It is below from the top of cabin
	Dumping Height:					3210mm
	Overall Width:					2150mm
Operating Specifications	Drive Means:						Four-wheel drive
	Steering System						Articulated Frame with hydraulic power steering
	Min Turning Radius:						5901mm
	Max Turning Radios						36°
	Driving System:						Hydraulic converter
Fuel Tank	Diesel Tank						107L
	Hydraulic Oil Tank						80L
Brake System	Service Brake:			Four Wheel Hydraulic disk brake
	Parking Brake:			Hand operated
Tyre	Model:	16/70-24

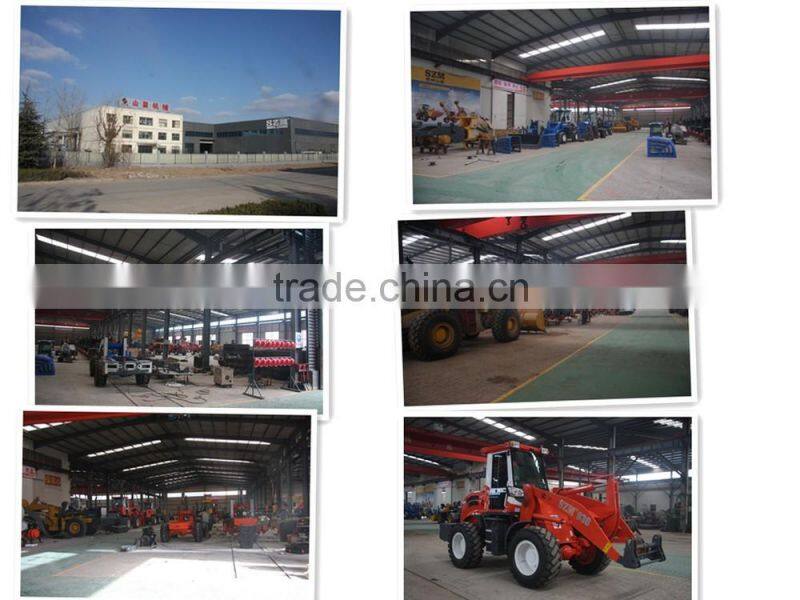

Workshop:
