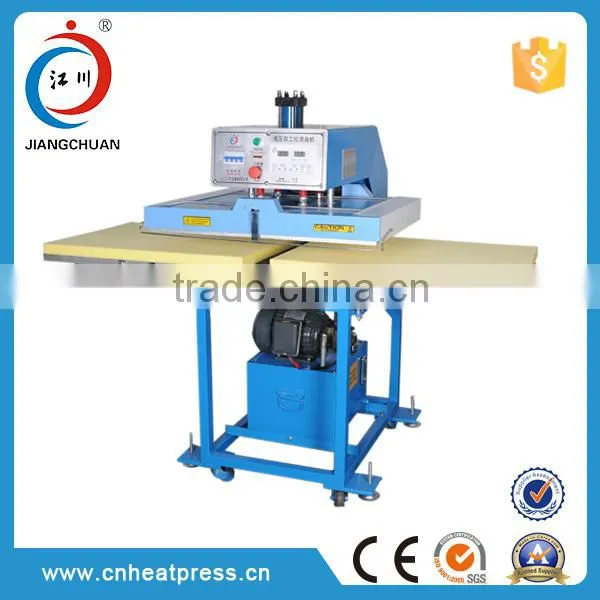

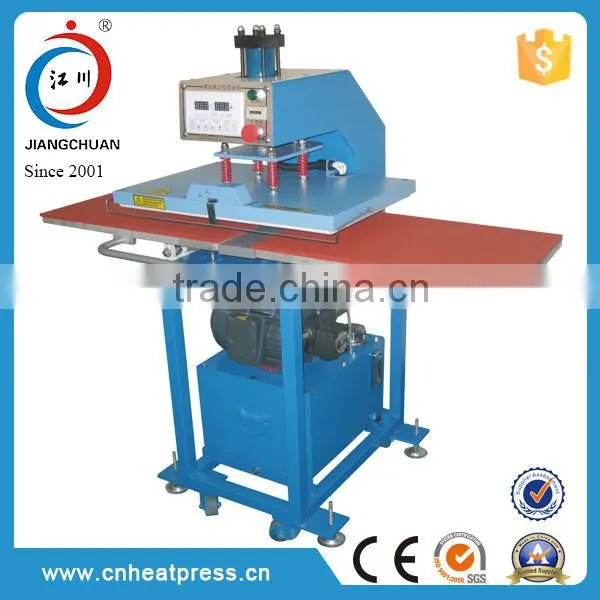

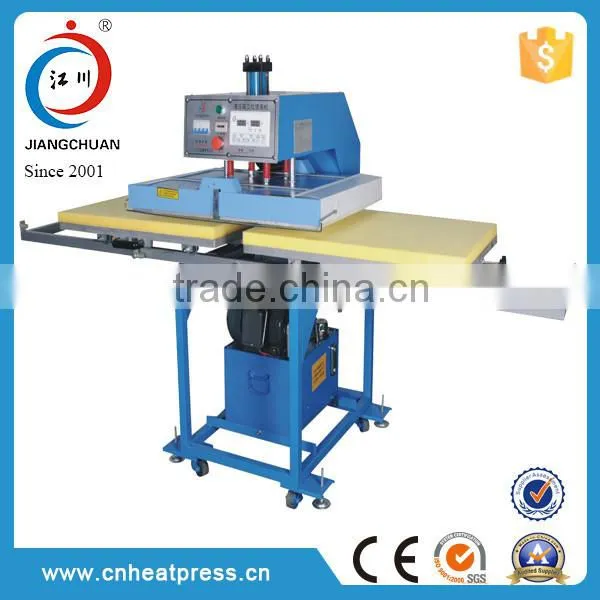

Help CenterHeating Hydraulic Sublimation T-shirt Transfers Machine
Related Products
-
Large Sublimation Heat Press Metal/glass/fabricUS$ 1,880 - 3,900MOQ: 1 Set -
Hot Sale T-shirt Design Machine,lycra Woolen Thermal Transfer Press MachineUS$ 550 - 720MOQ: 1 Set
-
40x40 Flatbed Double Station Automatic Sublimation Printing MachineUS$ 760 - 1,000MOQ: 1 Set
-
Industrial Automatic Sublimation Printing Machine 40x60 cmUS$ 760 - 1,000MOQ: 1 Set
-
Double Tray 40x60 cm Air Operated Sublimation Heating MachineUS$ 760 - 1,000MOQ: 1 Set
Specifications
1. Digital display of temperature and time
2.220V/380V
3.With safety protecting device
Feature
1. Machine with safety protecting device and easy operation performance, it is safe and rational.
2. Adopt an integrated circuit board, electromagnetic switch ,on-off timer, it is stable , visual and highly accurate.
3. The process is controlled by digital, and uses signal indication and the thermal energy distribute averagely.
4. Hydraulic system makes noise smaller, pressure bigger even can reach 30kg/cm2 energy saved.
Technical parameters
| Printing area(CM2) | 40X40 | 40X50 | 40X60 | 50X70 | 60X80 |
| Packing Dimensions (CM3) | 84*75*158 | 85*75*161 | 87*75*167 | 165*85*95 | 175*90*100 |
| Weight(KG) | 150 | 170 | 200 | 250 | 290 |
| Temperature range(°C) | 0-399℃ | ||||
| Time control(S) | 0-999sec. | ||||
| Voltage(V) | 220/380V | ||||
| Power(KW) | 2.2 | 2.5 | 3.0 | 6.2 | 7.5 |
Installation and operating instructions
1. The confidential placed in a flat on the ground, around the machine should be more than two meters of space, to facilitate installation and maintenance.
2.Determine the machine installation location, with 380V or 220V AC voltage power supply, voltage fluctuation range of -10% to 5% (Note: the voltage fluctuation range -10% to 5% with regulator), wiring, equipped with a suitable 220V or 380V knife switch or air switch, in order to control the power on and off, and must be connected to a reliable ground.
3. After installation, carefully check the time, in order to avoid incorrect connection.
4.Before starting, check the voltage is stable or phase grounding reliability.

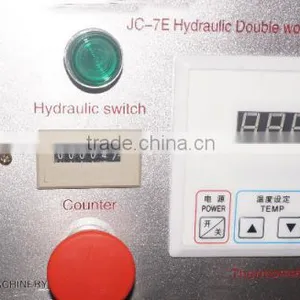

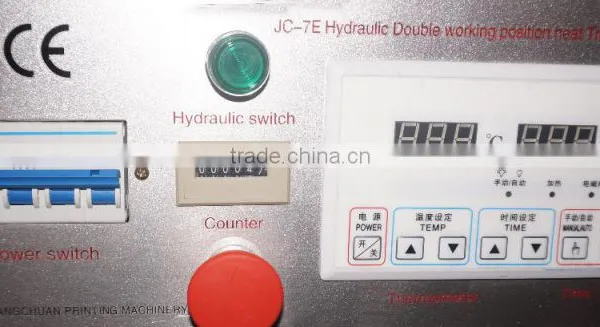

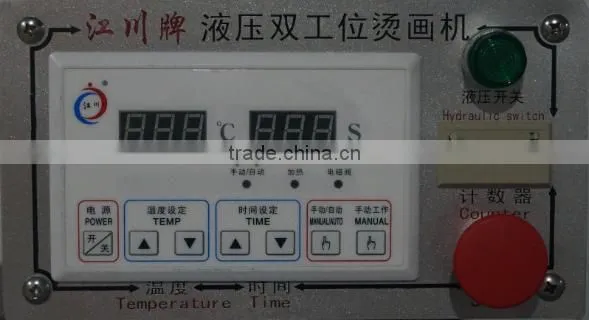

5.Connect the power, press the power switch on the temperature time integrated table, then open the hydraulic switch, the motor starts to rotate (Note: Please check whether forward with 380V hydraulic motor, the motor must be forward before pits oiled Warning: during the operation, reverse pumping oil, reversal, three wiring any other one can generally 220V hydraulic motor); non-touch, the higher the temperature of the heating plate so as not to burn!
6. The thermometer adjust to the desired temperature (usually 120-200 ° C).
7. Schedules adjusted to the desired time (usually about 10 seconds to 30 seconds).
8. It has two bench by the table so that the level of mobile operating complete printing tasks. The machine has automatic and manual functions when using the manual function, the first table is moved to below the heating plate, bench arrived at the designated location, click the button manually, heating plate immediately under pressure, hot pressure specified time to After rising heating plate can then move to the second bench, repeat on the action to be completed by the second workbench stamping task; When the automatic function, the first table moves to the heating plate below the work Taiwan arrived at the designated location, the heating plate immediately under pressure, hot pressure specified time after rising heating plate can then move to the second bench, repeat on the action to be completed by the second workbench stamping tasks; machines The normal pressure of 30-35 kg. Note: Do not exceed 40 kg pressure (at the scarlet letter marked)
9. If a cold tear transfer paper, please use blackboard rub the balance of transfer paper wipe, 5-20 seconds, it will tear up the transfer paper. If it is hot tear of the transfer paper after stamping immediately transfer paper torn off. Successful stamping must have the correct time, temperature and pressure with the thickness and material of the clothing and the transfer paper affect the effect of stamping. Various transfer paper need to try the hot sample approval before mass production.
Finished products

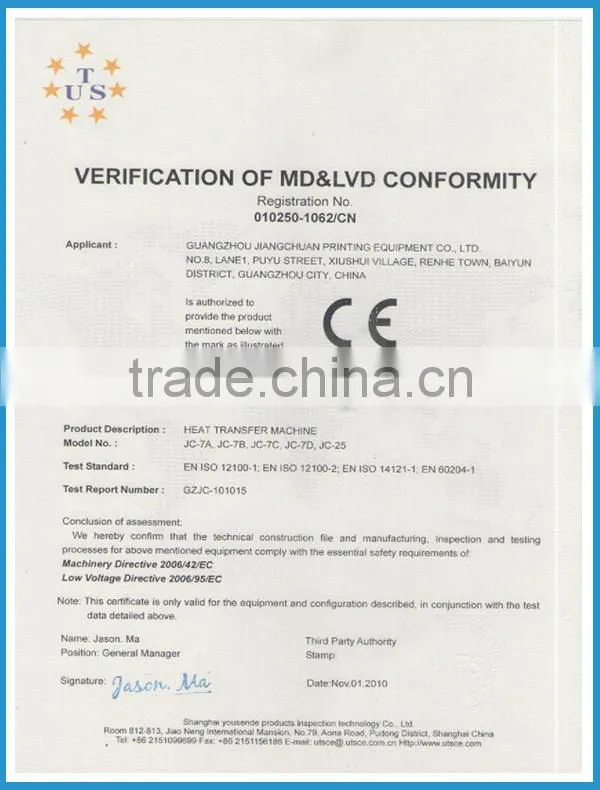

Certification
Packing in wooden case
Delivery the machine by sea way/Air/international express
1.Twelve-month warranty for Jiangchuan made heat press machines.
2. We provide technical support at any time.
3. Customized colors and size are acceptable for production.
4. Engineer available to service machinery overseas.
5. Our company is a professional manufacturer of heat press machines with 14+ years’ experience.
6.Whether you are after one machine or one hundred machines,we are always here to service you need.
7.One stop service supplier.(We can provide the consumables for you.)

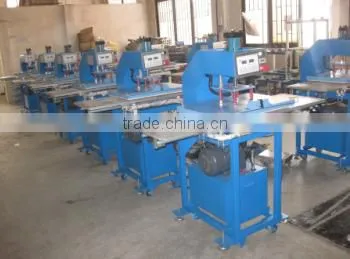

Related machines of our factory
Contact us or send me an inquiry now,I will get back to you soon.

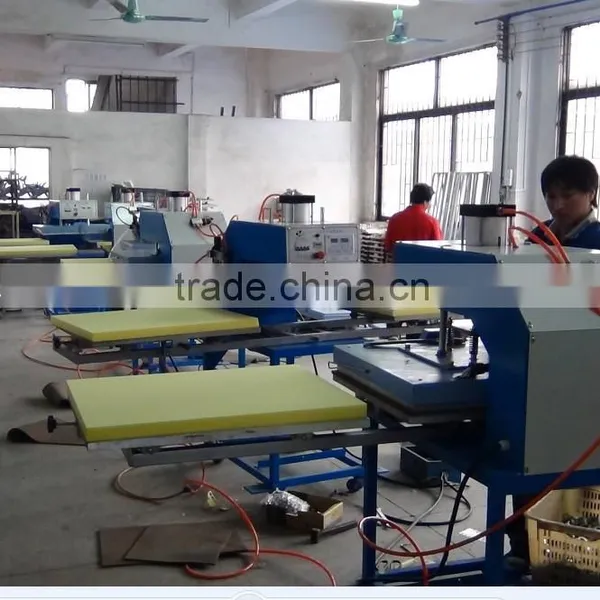

Welcome to visit our factory.(Add: No.8, Lane1, Puyu Street, Xiushui Village, Renhe Town, Baiyun District, Guangzhou )
