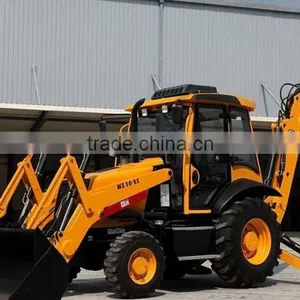

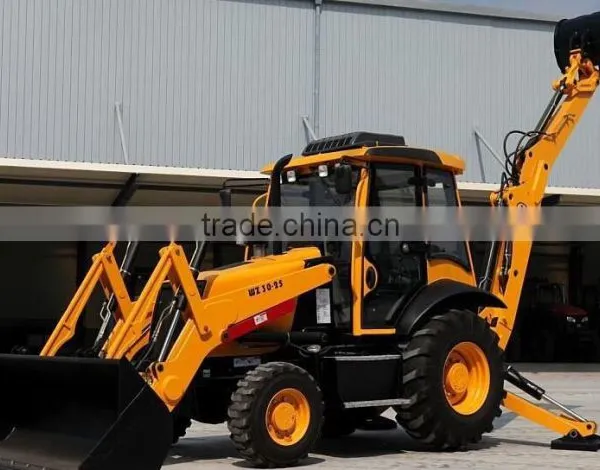

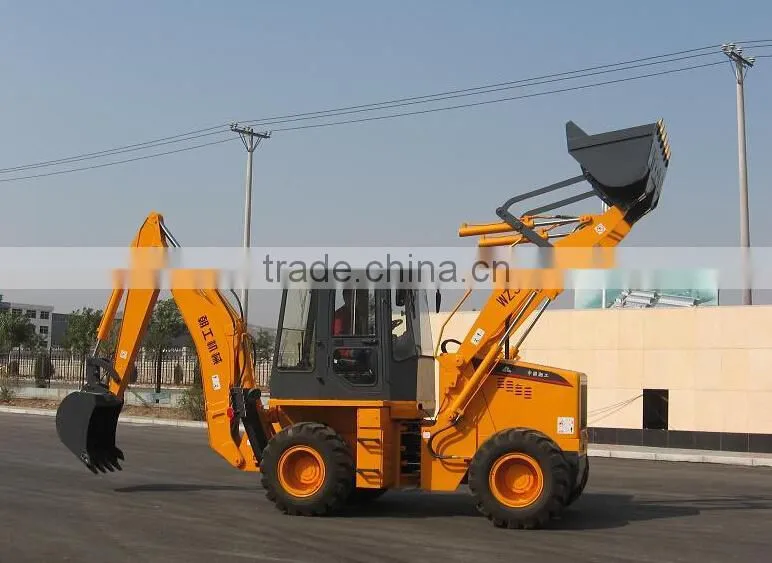

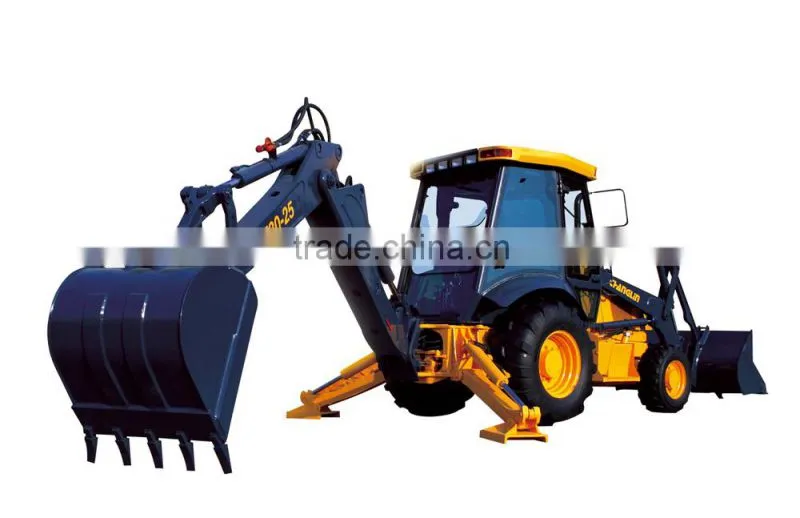

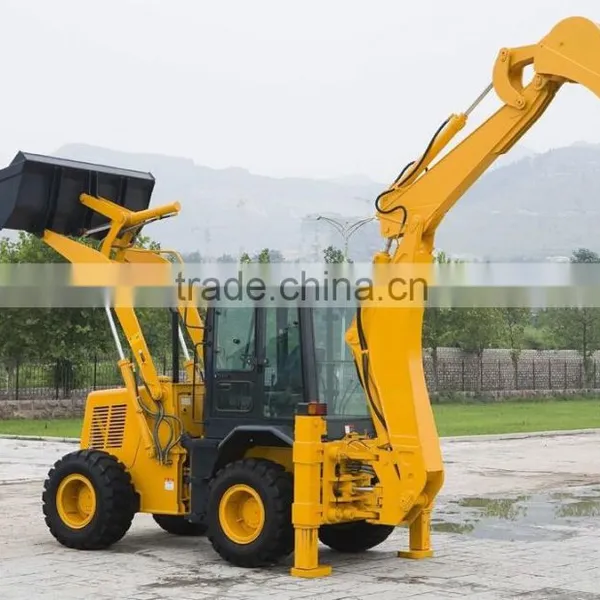

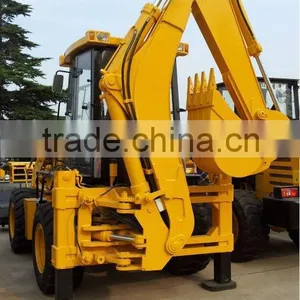

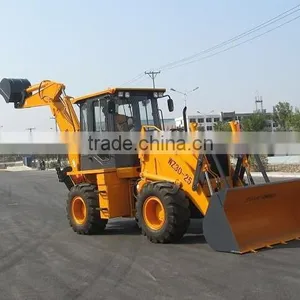

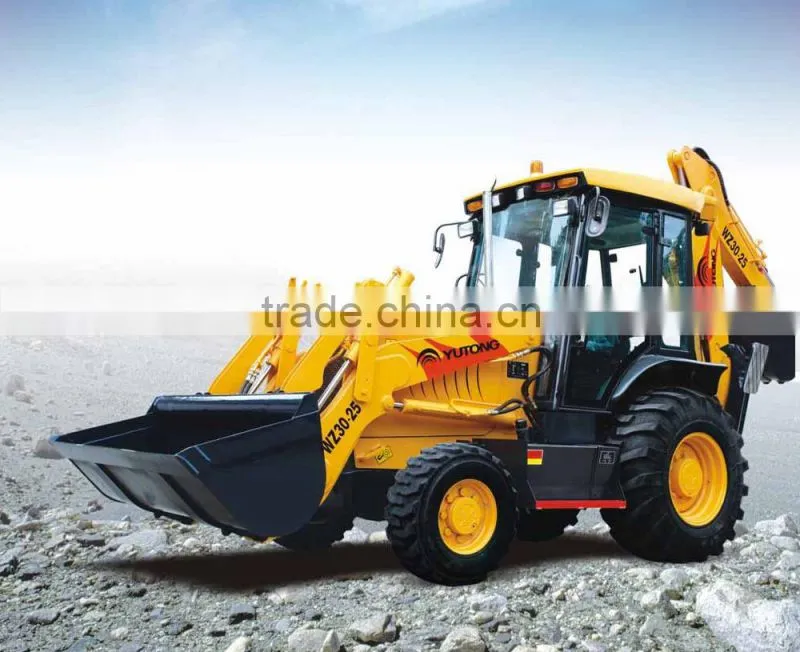

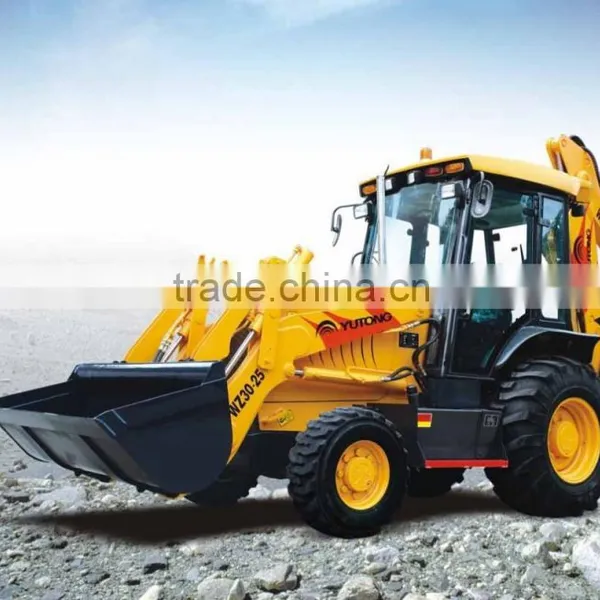

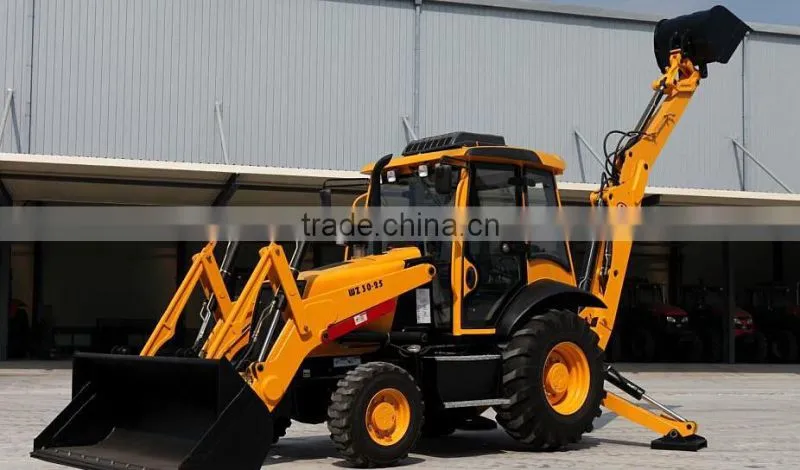

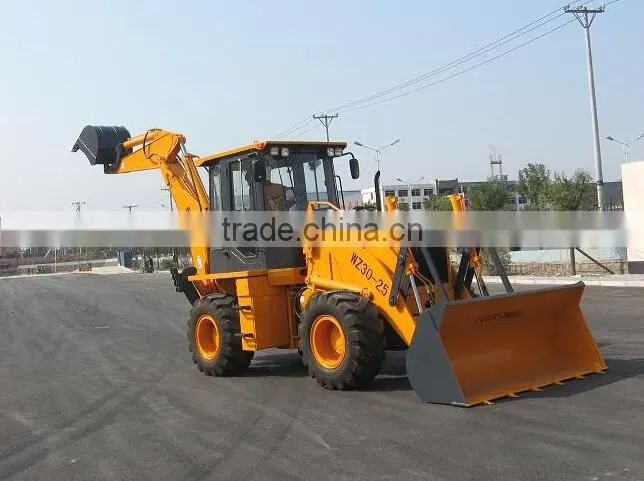

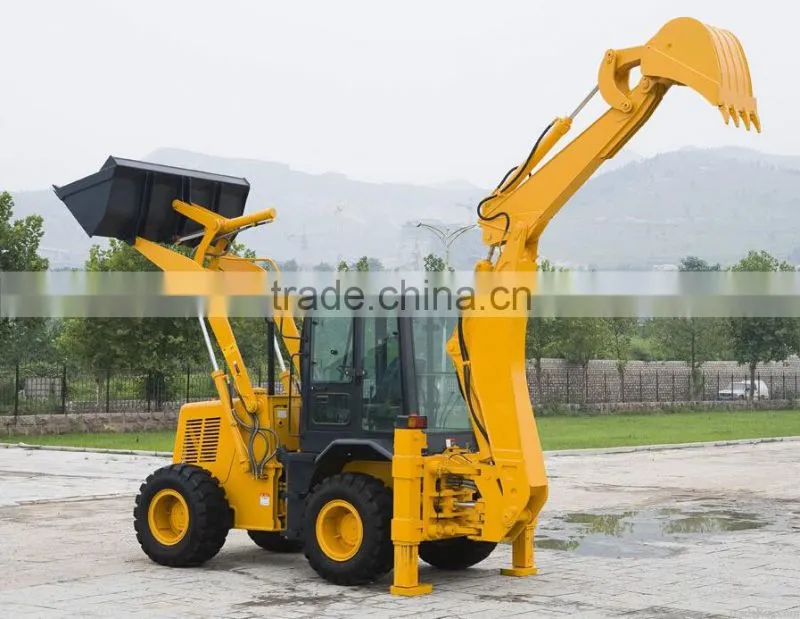

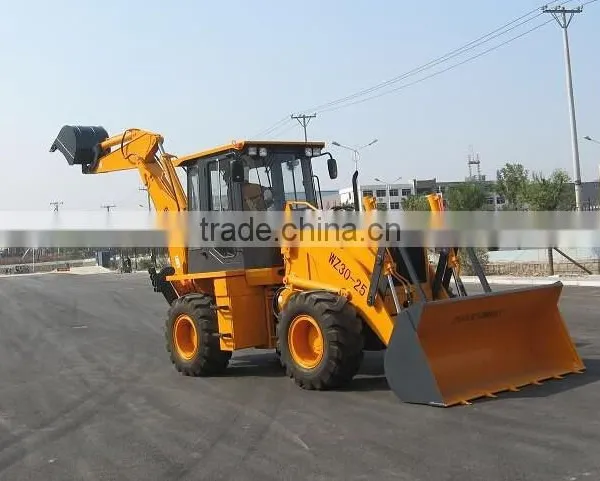

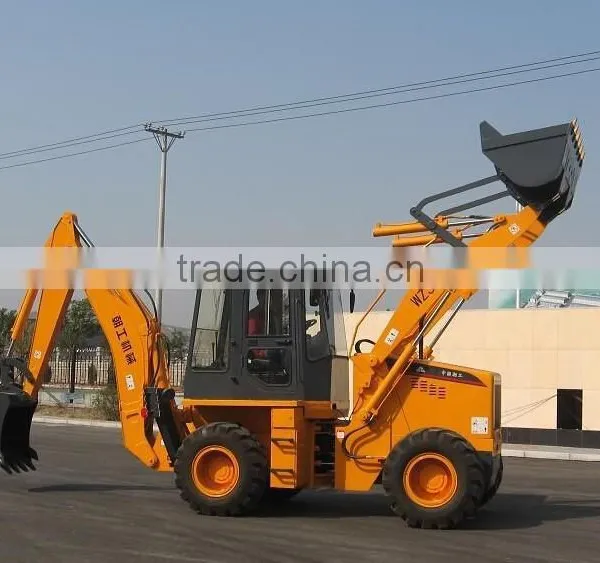

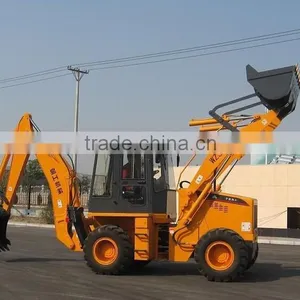

Help CenterShandong Szm Hot CE Approved WZ 30-25 Loader With Cummins Engine for Sale
Related Products
-
Wheel Loader WZ30-25 With Cummins Engine for SaleUS$ 35,000 - 56,500MOQ: 1 Set -
WZ30-25 Backhoe Loader With Cummins Engine for SaleUS$ 35,000 - 56,500MOQ: 1 Set
-
Hydraulic Wz30-25 Backhoe LoaderUS$ 35,000 - 56,500MOQ: 1 Set
-
30-25 Backhoe Loader Digger With Cumnins EngineNegotiableMOQ: 1 Set
-
Front Loader Back Excavator Backhoe Loader WZ30-25 With Cummins Engine for SaleUS$ 35,000 - 56,500MOQ: 1 Set
Specifications
Backhoe Loader wz30-251.4WD
2.Loader Bucket: 1.0CBM
3.Excavator Bucket: 0.3CBM
4.Engine Power: 70-100H
Dimension technological parameters
Overall Dimension |
|
||
LengthX Width X Height |
5900X 2300 X 3769(mm) |
|
|
Cab roof height |
2900(mm) |
|
|
Wheel base |
2250(mm) |
|
|
Track |
1640(mm) |
|
|
Min. ground clearance |
300(mm) |
|
|
Main Technical Specification |
|
||
System pressure |
Load hydraulic system |
18Mpa |
|
Dig hydraulic system |
20Mpa |
|
|
Steering hydraulic system |
12Mpa |
|
|
System flow |
120L/min |
|
|
Total operating weight |
7600kg |
|
|
Maximum speed |
22Km/h |
|
|
Loading Bucket |
Loading bucket capacity |
1m3 |
|
Rated loading |
1800KG |
|
|
Maximum articulated height of bucket |
3400(mm) |
|
|
Bucket discharge height |
2795(mm) |
|
|
Bucket discharge distance |
1048(mm) |
|
|
Loading lift capacity |
25KN |
|
|
Bucket hydraulic translation function |
yes |
|
|
Bucket lift time |
6.8s |
|
|
Bucket discharge time |
1.2s |
|
|
Maximum tractive force |
39KN |
|
|
Maximum breakout force |
38KN |
|
|
Backacter bucket |
Backacter bucket capacity |
0.3m3 |
|
Backacter discharge height |
3878(mm) |
|
|
Maximum digging depth |
4080(mm) |
|
|
Maximum digging radius |
5688(mm) |
|
|
Bucket slewing angle |
190 |
|
|
Bucket digging capacity |
46KN |
|
|
Bucket stick digging capacity |
31KN |
|
|
Diesel Engine |
|
||
Model |
YTR4108G60-1 |
LRC4M-3G93 |
|
Type |
Inline, direct injection, four-stroke, liquid cooled |
|
|
Rated power |
75HP |
90HP |
|
Rated speed |
2400r/min |
2400 r/min |
|
Cylinder –internal diameter |
4—105 |
4—110 |
|
Maximum torque |
285NM |
310NM |
|
Minimum fuel consumption |
239g/kw.h |
245g/kw.h |
|
Displacement |
4.33L |
4.5L |
|
Transmission System |
|
||
Model of hydraulic pump |
Fixed shaft power shift transmission |
|
|
Gear shift |
2forward shift 2 reverse shift |
|
|
Torque |
YJ-280 |
|
|
Drive pump |
CDXaf3016-IL |
|
|
Flow |
63ml/r |
|
|
Work pump |
CBGj2063 |
|
|
Steering System |
|
||
Type |
articulated hydraulic steering |
|
|
Model of steering control valve |
BZZ5-250 |
|
|
Model of turning control valve |
YSF25S-00 |
|
|
Steering angle |
36±1°left or right 36±1° |
|
|
Minimum turning radius |
5018(mm) |
|
|
Axles |
|
||
Main transmission type |
Single reduction |
|
|
Wheel reduction type |
Wheel reduction |
|
|
Wheel |
|
||
Tire size |
16/17-20 |
|
|
Front wheel pressure |
0.22Mpa |
|
|
Rear wheel pressure |
0.20Mpa |
|
|
Service braking |
Air over hydraulic disc on 4 wheels |
|
|
Parking brake |
Manual parking brake |
|
|
Refill Capacity |
|
||
Fuel tank |
70L |
|
|
Transmission |
25L |
|
|
Front axle |
9KG |
|
|
Rear axle |
9KG |
|
|
Hydraulic tank |
140L |
|
|
