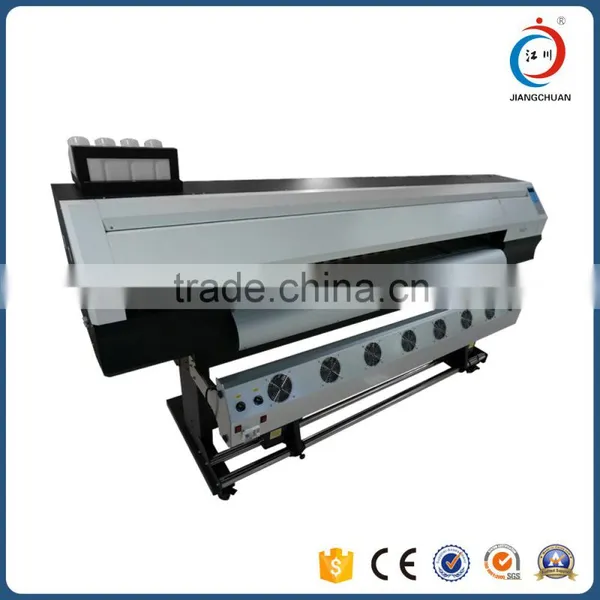

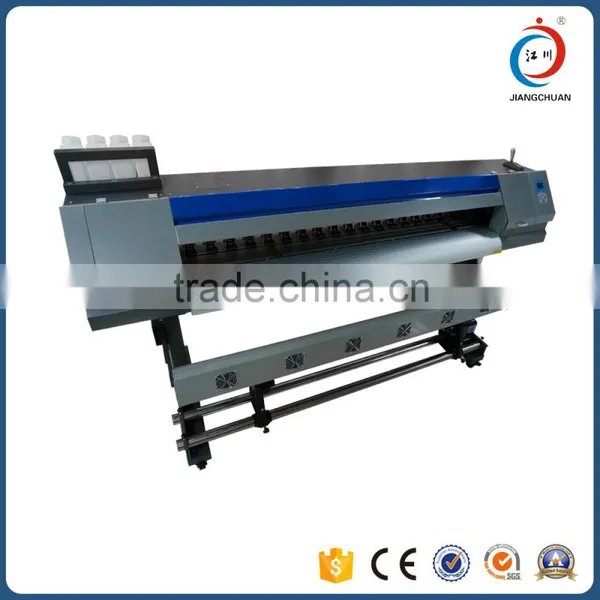

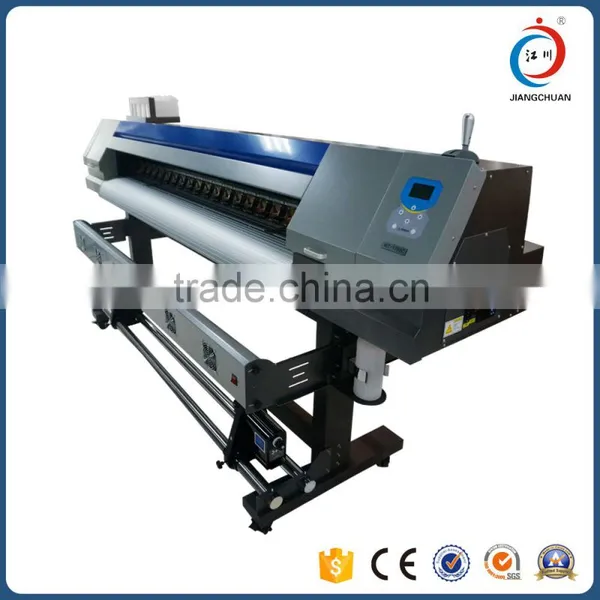

best quality 1.6 m eco solvent printer
specification
solvent |
|||
Print head |
DX5 |
||
Number of Nozzles |
1440nozzles per head |
||
Color |
4 Color: Cyan, Magenta, Yellow, Black |
||
Height of print head |
2-5mm |
||
Size of ink-droplet |
1.5pl-21pl |
||
Printing Width |
1.7m |
||
Speed |
|||
4pass |
18sq.m per hour |
||
6pass |
13sq.m per hour |
||
8pass |
9sq.m per hour |
||
Media Width |
1850mm |
||
Media take up device |
Yes |
||
Media feeder |
yes |
||
Media payload |
75kgs |
||
Heating System |
Pre /post Heater can be controlled separately |
||
Ink |
Sublimation Ink |
||
Water-based Dye Ink | |||
Eco solvent ink | |||
Ink Cartridge |
8*220ml continuous ink supply |
||
Rip Software |
Maintain v 5.3 .photoprint seeget torpaz |
||
Control Software |
Print Console |
||
Operation System |
MS Windows XP& Windows7 |
||
Interface |
Hi-USB 480 |
||
Power Voltage |
AC220-240V 50-60HZ or AC110-120V 50-60HZ |
||
Printing Environment |
Temperature: 20-25 centi degree, Humidity: 40-60% |
||
Usage |
Banner , flag , pp sythentic paper ,vinly sheet ,film , ,canvas , ETC |
||
Printer dimension |
255 x 87x136cm |
||
Packing dimension |
W255*L87* w136mm |
||
Net Weight |
180kgs |
||
Gross Weight |
210kgs |
||
technical date
Use Mechanical design and aluminum structure
----- Ensure Firm structure and keep the printer without shake on the condition of high speed printing .
Structure frame platform with THK rail , NSK bearing ,
----- keep the printer parallelism and durability .
Advanced Media feeding and rolling system .
--- Media
Media fixing device to ensure Smooth media feeding and rolling .
Ink cartridge
Single print head with four big catridge
Four color CMYK is available .
Piezo electric print head with variable ink Droplet .
With DX5 print head as well as 1440 nozzle performs well in high speed and high resolution output .
standard wood case
With 15-year experience, Guangzhou Jiangchuan Printing Equipment Co., Ltd is one of the most professional manufacturers in heat press machine, heat transfer machine, and sublimation equipment and sublimation printer .
Jiangchuan always devotes to enhance the function of their machine, depends on customers’ feedback and market requirement .At the beginning of 2001 , Jiangchuan started to produce flat heat press ; since 2005 developed first roller heat press machine; since 2012 ,Jiangchuan developed 3d heat press machine; 2013 start to producing large format printer since 2016 , Jiangchuan also promotes their newest roller heat press machine model .
Jiangchuan is also a biggest manufacturer in China, which is located in Guangzhou city with 30,000 square meters. Jiangchuan has 5 engineers ,120 workers , six production lines ,two sales teams , which supply professional service for domestic market and overseas market ,such as Europe, America, Southeast Asia, The Middle East ,Africa, etc.
1. Comprehensive service
BEFORE: We would like to recommend the machine to you according to the function you need.
AT: Find out the most cost-saving and convenient shipping way for you.
AFTER: 1) With 15 years experience, we can provide some professional guides to you if you need.
2) The technical support on line in time can be provided with the help of our 5 engineers and several electricians.
3) Engineer available to service machinery overseas.
4) You can dispatch your workers to our factory and our engineers will train them for you.
2. Quality is our culture.
1) As a big factory in China with a strict quality control system, we can assure you of the quality.We only offer high quality products.
2) We are certified to CE.
3. Competitive price
We think our machines will give you an edge over your competitors.
4. Safety
With us your business will be in safe, your money will be in safe.
