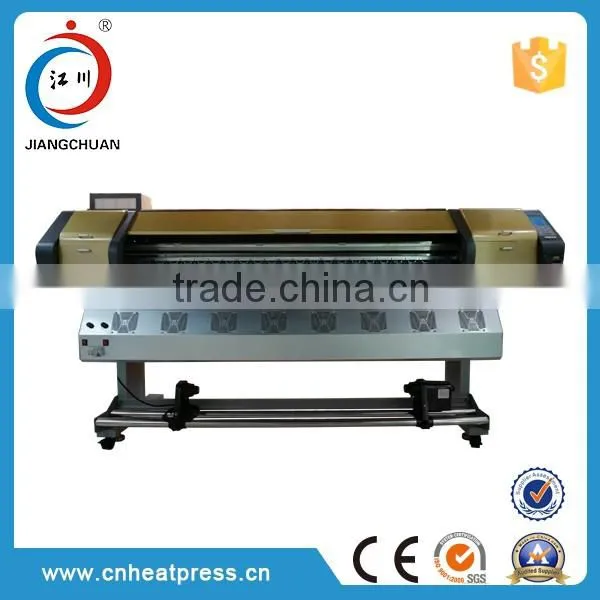

Sublimation printer factory large format indoor and outdoor Eco-solvent plotter
Technical parameters:
|
Print head |
Using Double 5113 print head, including 400 nozzles/row*8 lines*2, the nozzles is four times than before, high output quality up to 1800 dpi. |
Media max. print width |
1800mm |
|
Print Resolution/speed |
(3 pass)720*1800dpi 70m2/H (4 pass)720*1200dpi 50m2/H (6 pass)720*1800dpi 32m2/H |
Ink sort |
Water Based Ink, Sublimation Ink |
Ink capacity |
Double 4 Color:220mlX2/color |
Media Thickness |
1.5mm to 8mm adjustable |
Media Maximum Roll Weight |
80kg |
Media Sort |
Sublimation Paper, PP Synthetic Paper etc. |
Media Heater |
Pre-print /post heater(can be controlled separately) |
Media take-up Device |
Strong rolling take-up device with the automatic damper(Option) |
With drying system |
yes( Infrared drying system) |
Guide Rail |
THK from Japan |
Interface |
USB2.0(480m/s) |
RIP Software |
MaintopV5.3,Photoprint,Seeget,Torpaz |
Power |
AC110V±10%,AC220V±10%,50/60±1HZ |
Operation Environments |
Temperature:20℃~35℃,Humidity:35%RH~65%RH |
Dry Power |
2000W |
Gross Weight |
840kg |
Packing dimensions |
1460*4420*950MM |
|
Print head |
Using Double DX5 print head, including 180 nozzles/row*8 lines*2, the nozzles is four times than before, high output quality up to 1440 dpi. |
Media max. print width |
1800mm |
|
Print Resolution/speed |
(4pass)720*720dpi 30 m2/H (6pass)720*1080dpi 26 m2/H (8pass)720*1440dpi 15 m2/H |
Ink sort |
Water Based Ink, Sublimated Ink, Eco-solvent Ink |
Ink capacity |
Double 4 Color:220mlX2/color |
Media Thickness |
1.5mm to 8mm adjustable |
Media Maximum Roll Weight |
80kg |
Media Sort |
Sublimation Paper, PP Synthetic Paper, Vinyl Sheet, Coated Paper, Acid Proof Paper Banner etc. |
Media Heater |
Pre-print /post heater(can be controlled separately) |
Media take-up Device |
Strong rolling take-up device with the automatic damper(Option) |
With drying system |
yes( Infrared drying system) |
Guide Rail |
THK from Japan |
Interface |
USB2.0(480m/s) |
RIP Software |
MaintopV5.3,Photoprint,Seeget,Torpaz |
Power |
AC110V±10%,AC220V±10%,50/60±1HZ |
Operation Environments |
Temperature:20℃~35℃,Humidity:35%RH~65%RH |
Dry Power |
2000W |
Gross Weight |
840kg |
Packing dimensions |
1460*4420*950MM |
Sublimation printer factory large format indoor and outdoor Eco-solvent plotter
Description:
1. The heater can be controlled by separately.
The heaters can be controlled by separately to head the media to be appropriate temperature to improve the absorption of ink. Front heater can reduce the drying time and speed up the efficiency of collecting paper.
2.Roll to roll device
Roll to roll device can take up the paper roll and prevent from deviation when printing long paper.
3. VSD technology
The new variable droplet technology achieves the grayscale and make the printing more delicate and accurate .Getting the perfect printing effect with VSD technology even though in high speed or low resolution cases.

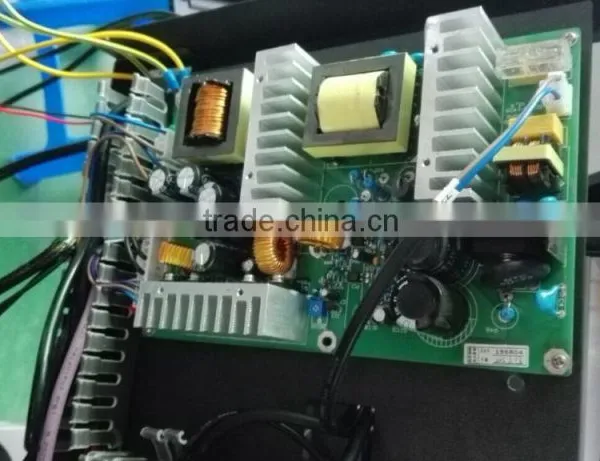

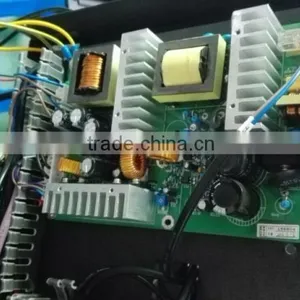

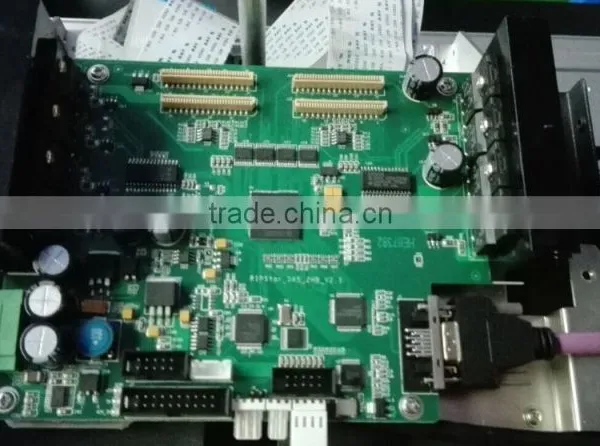

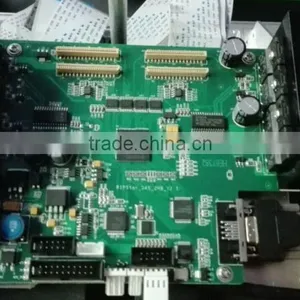

4. Industrial circuit design
Using industrial circuit design to ensure the reliable and stable circuit. High-capacity automatic ink-supply system to ensure the overall stability off machines. That would be more effective.
5. Adjustable height of the print head
The height of print head can be adjusted according to the thickness of media from 1.5mm to 8mm to ensure the spray quality.

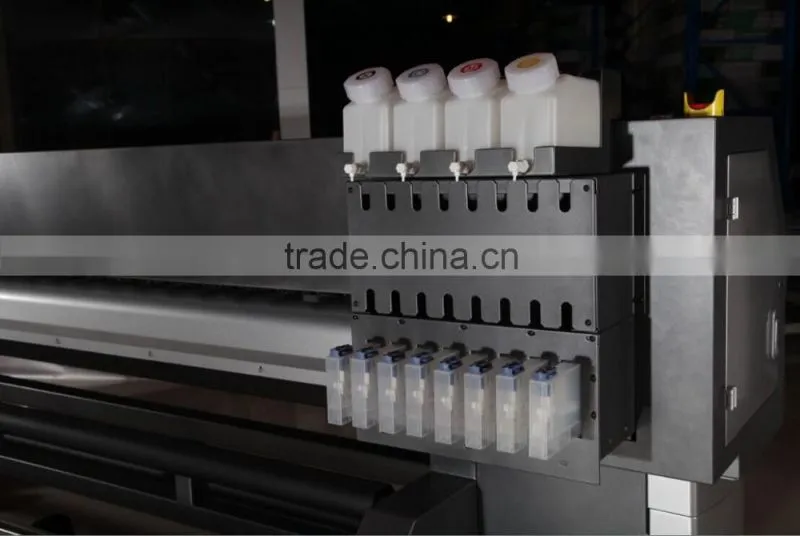

6. Continuous ink supply system
With the continuous supply system to ensure the printer can print large format and high quality images and improve the efficiency.
Competitive Advantage:
1.Employs BYHX software
It is excellent for improving the print quality and showing high definition by using the BYHX software with leading technology and stable control system.
2.High output quality
1)Using dual 5113 print heads,400 nozzles*8 lines*2,the nozzles is four times than before, output
quality up to 1800 dpi. The staggered arrangement of the print heads significantly improves the productivity!
2)Using Double print head, including 180 nozzles/row*8 lines*2, the nozzles is four times than before, high output quality up to 1440 dpi.

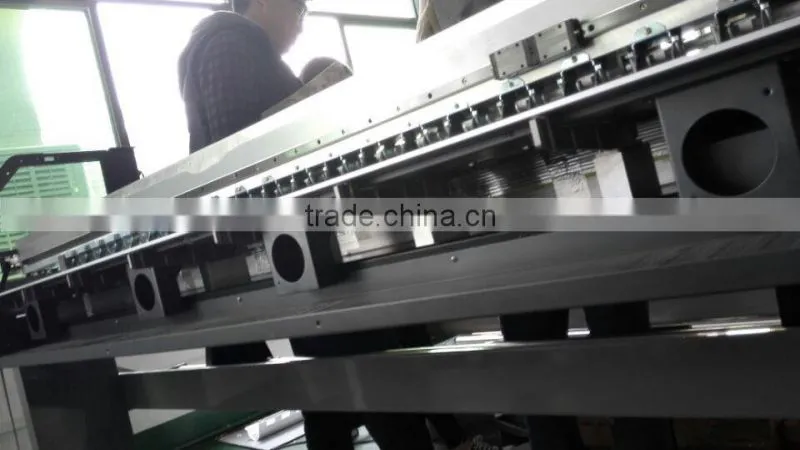

3. Using THK rails from Japan
The THK guide rails from Japan ensure nozzle movement more stable, longer life, lower noise. Meanwhile, the THK rails ensure the precision (parallelism and straightness is 0.01mm through testing).

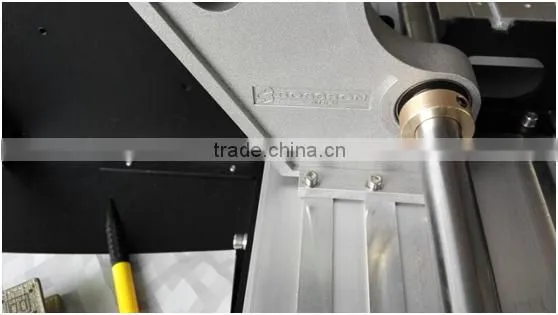

4. Using NSK High quality bearings
The bearings are imported from Japan. It improves the precision and service life, which can reach over 5 years.

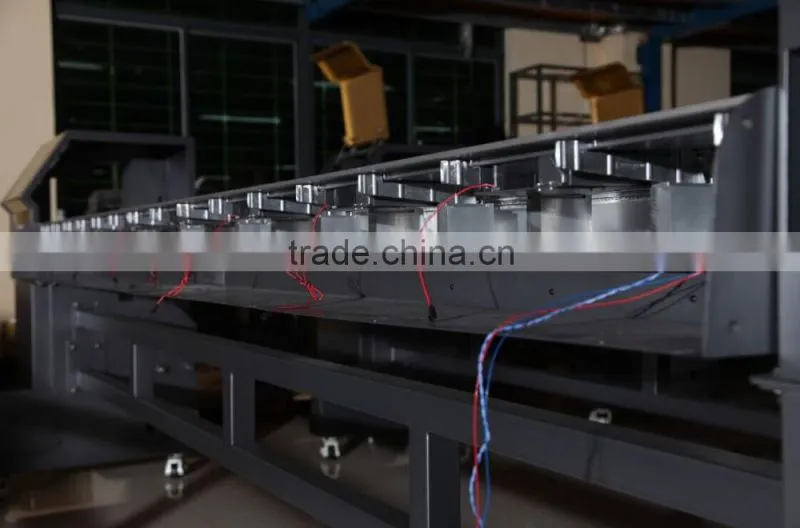

5. Aluminum material
The unique aluminum structure is excellent for ensure the paper is flat to print the better images.

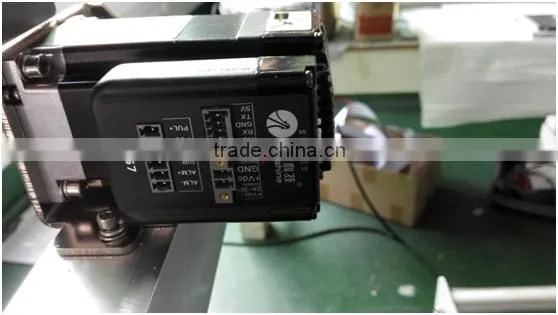

6. With Leadshine brushless servo motor in the printer
Employs double leadshine brushless servo motor to get the stable and safe transmission.
Packing
Usually the small heat presses excluding the pneumatic heat presses will be packaged by carton cases.The large heat presses and printers will be packaged by wooden cases.
Delivery the machine by Train/Sea way/Air/international express
We will recommend the cheaper and more economic way for you.You can also advise us your need.
Sublimation printer factory large format indoor and outdoor Eco-solvent plotter
1. Comprehensive service
BEFORE: We would like to recommend the machine to you according to the function you need.
AT: Find out the most cost-saving and convenient shipping way for you.
AFTER: 1) With 15 years experience, we can provide some professional guides to you if you need.
2) The technical support on line in time can be provided with the help of our 5 engineers and several electricians.
3) Engineer available to service machinery overseas.
4) You can dispatch your workers to our factory and our engineers will train them for you.
2. Quality is our culture.
1) As a big factory in China with a strict quality control system, we can assure you of the quality.We only offer high quality products.
2) We are certified to CE.
3. Competitive price
We think our machines will give you an edge over your competitors.
4. Safety
With us your business will be in safe, your money will be in safe.
Sublimation printer factory large format indoor and outdoor Eco-solvent plotter
With 15-year experience, Guangzhou Jiangchuan Printing Equipment Co., Ltd is one of the most professional manufacturers in heat press machine, heat transfer machine, and sublimation equipment and so on.
Jiangchuan always devotes to enhance the function of their machine, depends on customers’ feedback and market requirement .At the beginning of 2001 , Jiangchuan started to produce flat heat press ; since 2005 developed first roller heat press machine; since 2012 ,Jiangchuan developed 3d heat press machine; since 2016 , Jiangchuan also promotes their newest roller heat press machine model .
Jiangchuan is also a biggest manufacturer in China, which is located in Guangzhou city with 30,000 square meters. Jiangchuan has 5 engineers ,120 workers , six production lines ,two sales teams , which supply professional service for domestic market and overseas market ,such as Europe, America, Southeast Asia, The Middle East ,Africa, etc.
Welcome to visit Jiangchuan at anytime.
