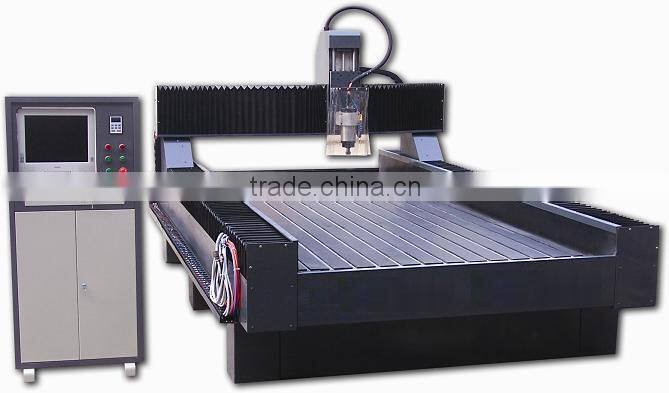

Help CenterStone Engraving Machine/CNC Router for Stone Carving
Related Products
-
ATC Machine Center Wood Carving Machine With CEUS$ 9,000 - 13,000MOQ: 1 Set -
ATC Wood Carving Machine With Drill and Saw BladeUS$ 9,000 - 13,000MOQ: 1 Set
-
Stemp Mini Laser Cnc Router Engraving Machine HD-40BUS$ 1 - 1MOQ: 1 Set
-
Special Mould Engraving Machine HD-1325MUS$ 4,500 - 6,900MOQ: 1 Set
-
Standard Wood EngraverUS$ 8,500 - 12,000MOQ: 1 Set
Specifications
1. Taiwan PMI square guide rails2.stepper motor

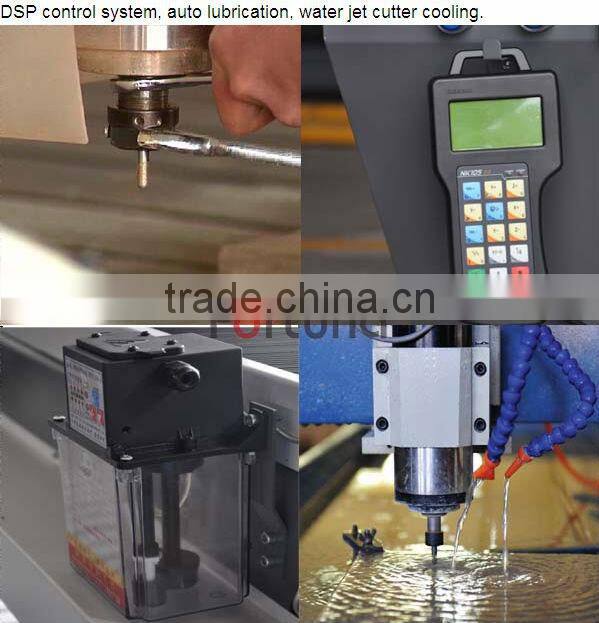

3.Ncstudio or DSP control system
4.water sink, and water pumps
5.CE
cnc router for marble, stone, granite engraving/cnc carving machine for stone
Specifications
1)Profiled steel welded lathe bed, stabilizing treated under high temperature
2)ensures minimum distortion, excellent rigidity and vigorous strength.
3)Precise traveling of Y axis driven by double motors ensures stable performance of machine.
4)High precision rack gear transmission ensures high accuracy, fast speed and strong power.
5)Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
6)Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
7)Configured with water tank and automatic cooling water supply system.
8)Overall dust-proof and water-proof design protects all moving parts of machine.
Applications
3D engraving, line engraving, cutting, edge inversing, drilling on natural marble, granite, artificial stone, tombstone, milestone, ceramic tiles, glass and so on.
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x300mm |
2 |
Table Size |
1480×3000mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Welded Structure |
6 |
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
7 |
Z Structure |
Ball Screw, Shaft Linear Bearings |
8 |
Max. Consume power |
6.5Kw |
9 |
Max. Speed |
0-32000mm/min |
10 |
Max. Working Speed |
0-20000mm/min |
11 |
Spindle Power Motor |
3kw/5.5kw water coolant Spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Mode |
Stepper Motor |
14 |
Working Voltage |
AC220V/380V, 50/60Hz |
15 |
Command |
G Code, *uoo, *mmg, *plt |
16 |
Operating System |
PC Control System |
17 |
Interface |
USB |
18 |
Flash Memory |
128M |
19 |
Collet |
ER25 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3, Ucancam, Artcam |
22 |
Running Circumstance |
Temperature: 0°C~45°C Relative humidity: 30%~75% |
23 |
Packing Size |
Separated: 3200X1950X1404mm |
24 |
Net Weight |
900KG |
25 |
Gross Weight |
1150KG |
All parameters above subject to change without prior notice | ||

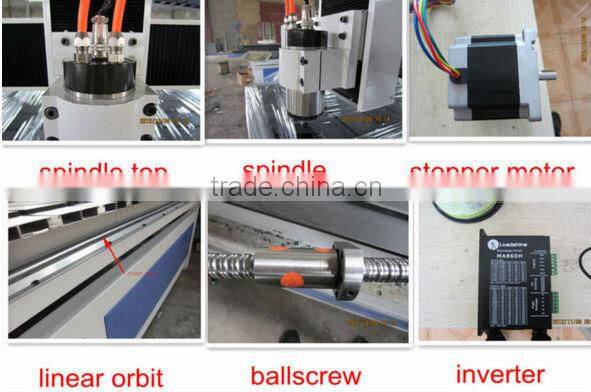

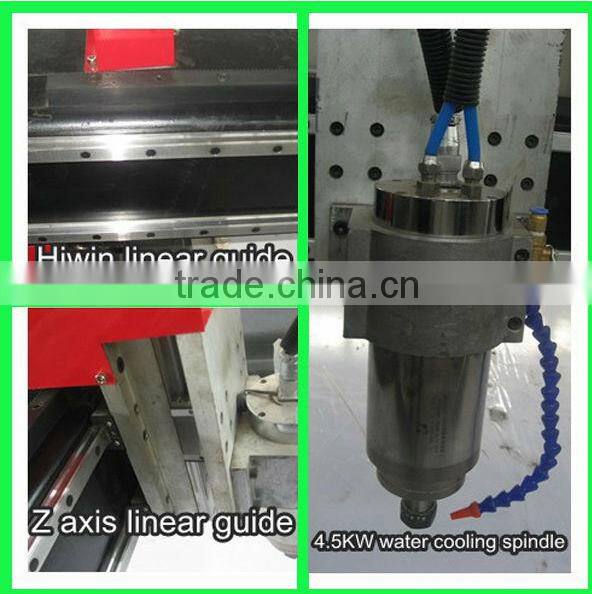

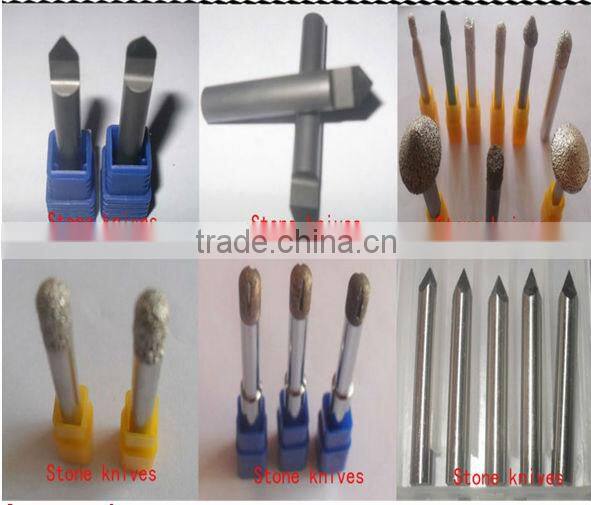

Configurations:

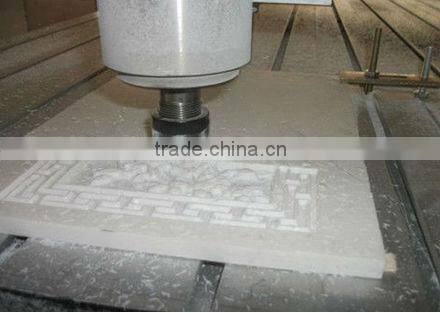

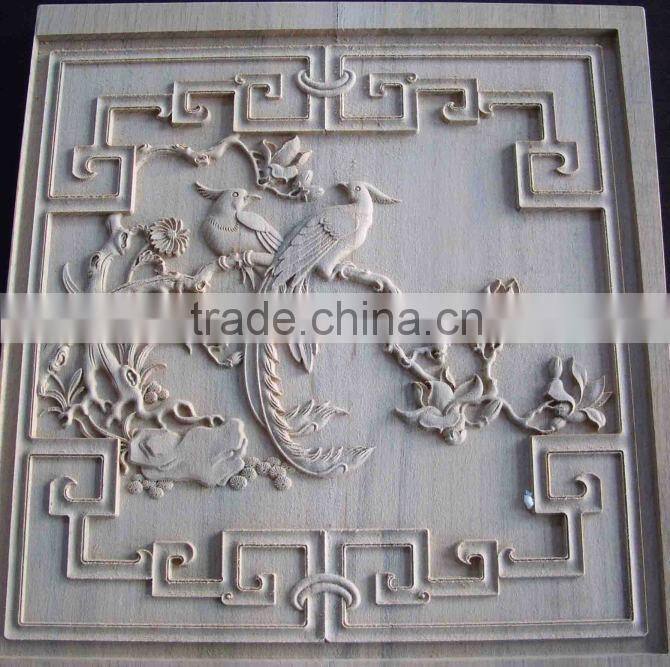

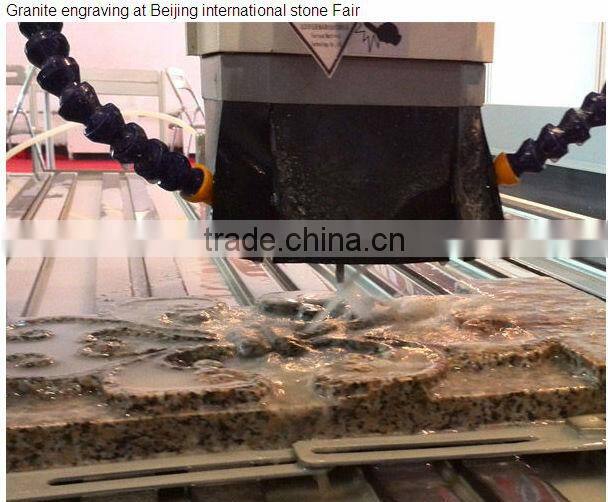

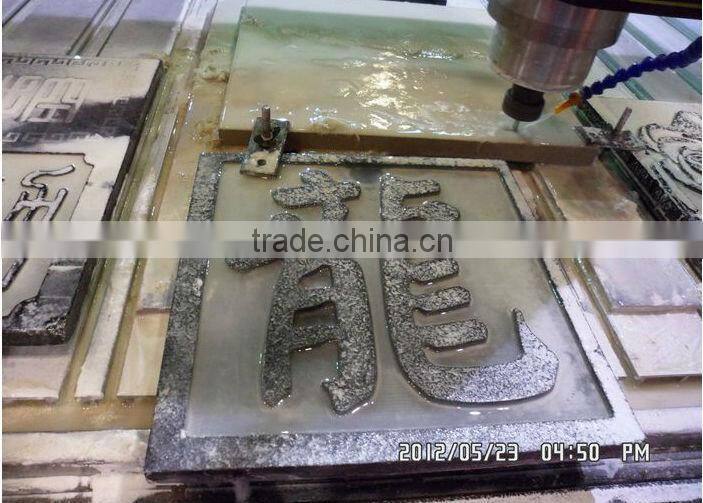

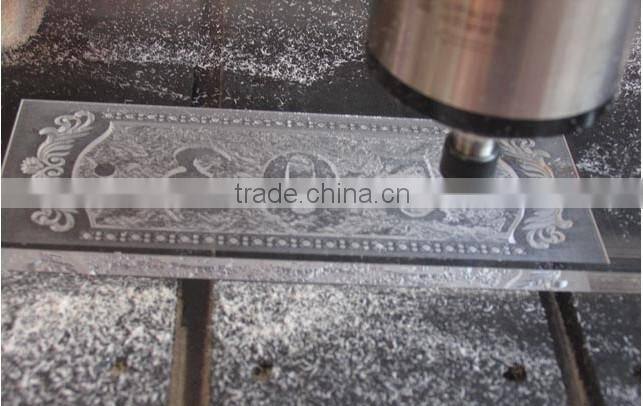

Sample:
