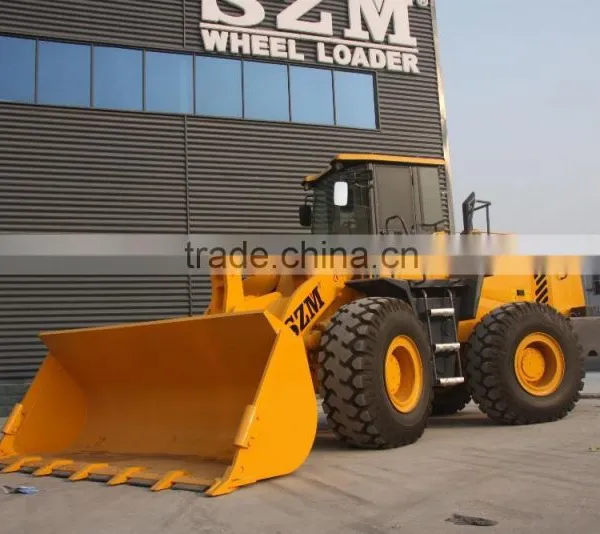

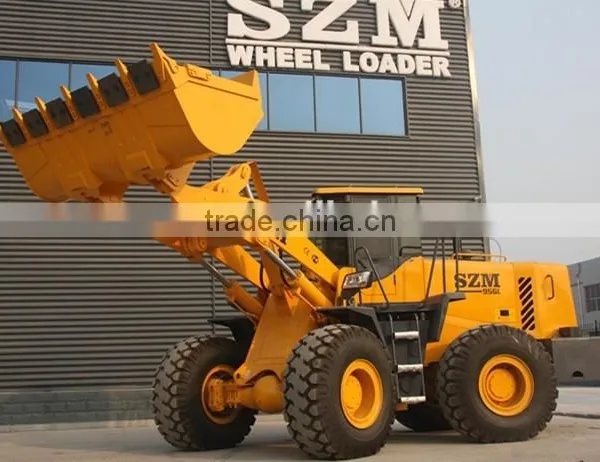

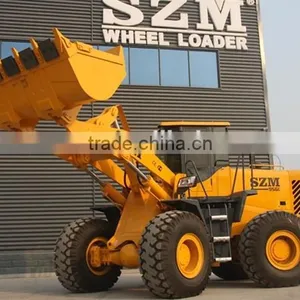

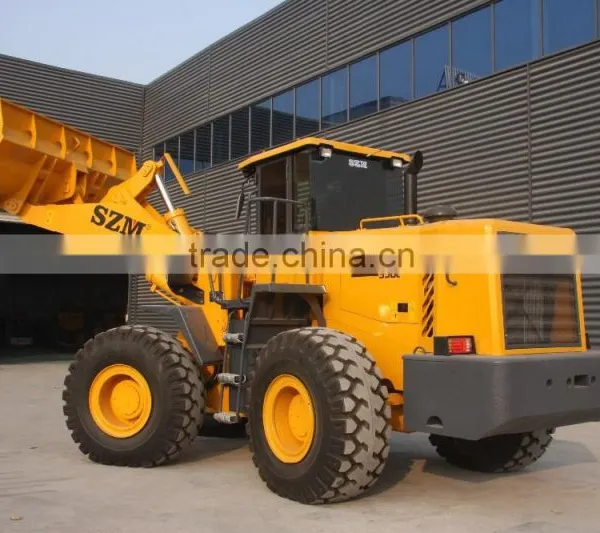

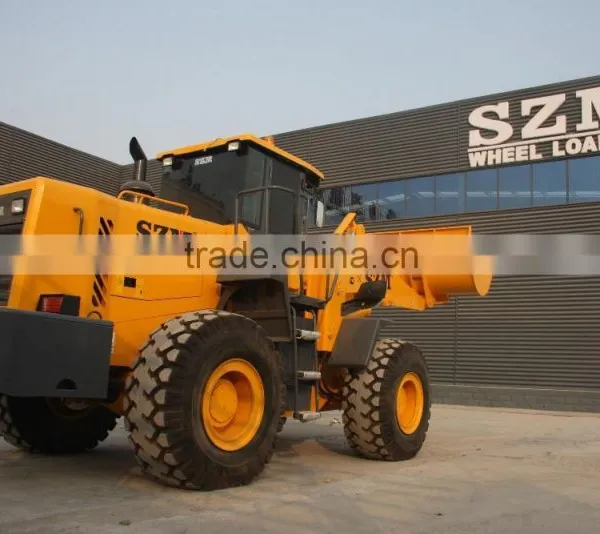

Help Center5Ton Heavy Construction Machinery Wheel Loader
Related Products
Specifications
China 5Ton wheel loaderOptional joystick, A/C, quick hitch
Hydraulic steering
Strong and durable frame

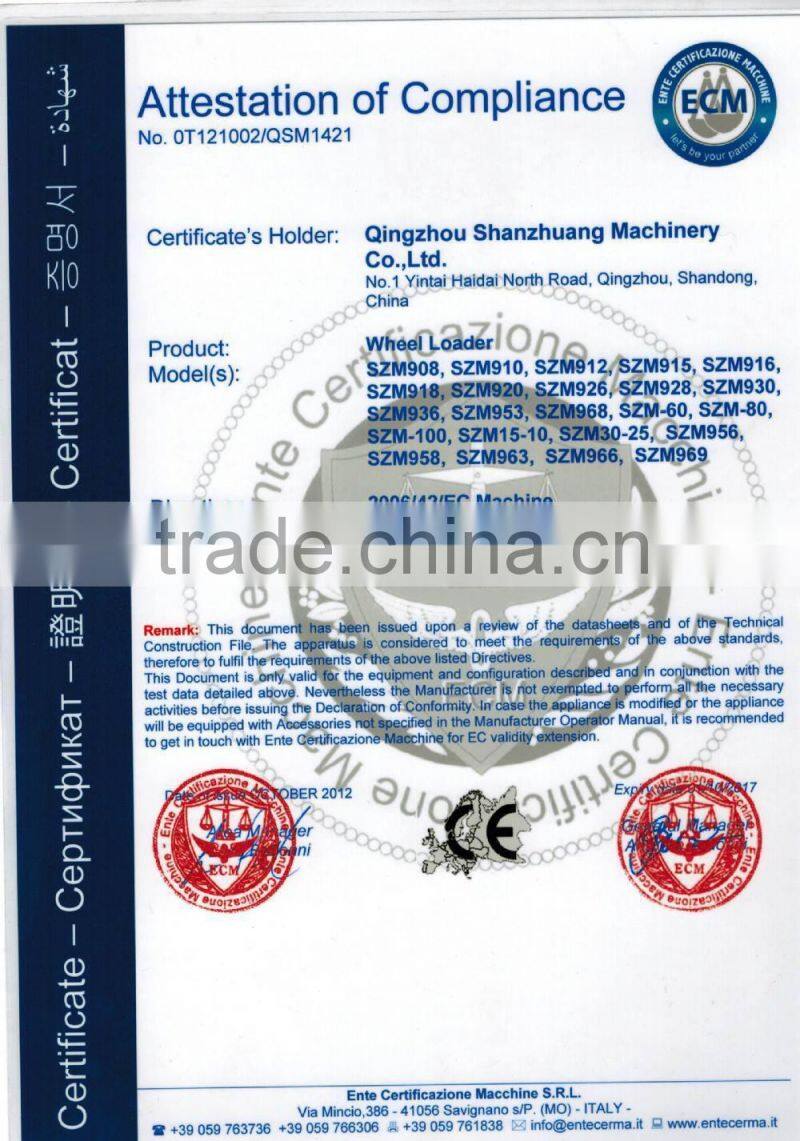

CE certificate
5Ton Wheel Loader Specification
Performance and Features:
1. Equipped with Weichai WD Engine ,optional Shangchai6121(Caterpillar121 technical), Dongfeng Cummins.
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
Optional:
Joystick control;
A/C air conditioner;
Back Camera;
Quick hitch;
Other Accessories for different usage
model |
956L |
bucket capacity |
3m³ |
Rated load |
5000 kg |
Wheel base |
3200 mm |
Wheel Tread |
2250 mm |
Min.ground clearance |
430mm |
Max. dumping height |
3150 mm |
dump distance |
1080mm |
Total times |
11s |
Operation weight |
16200kg |
Engine model |
Weichai Steyr WD10G220E21 |
Rated power/ speed |
162 kw/2200 rpm |
Overall dimension |
|
L X W X H |
7920*3050*3400mm |
Tyre |
23.5-25 |

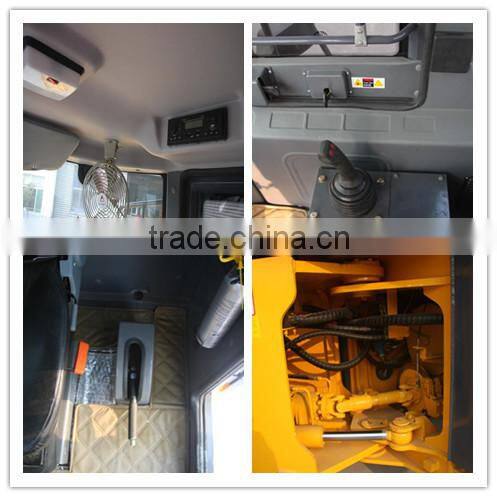

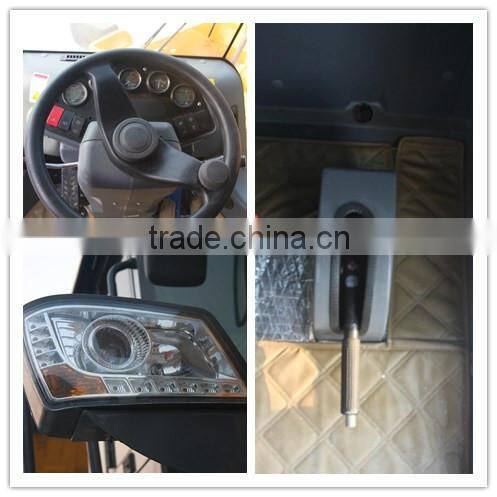

Inner Photos:

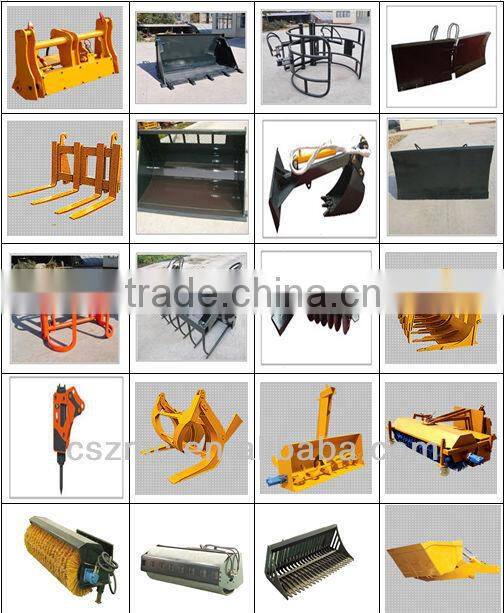

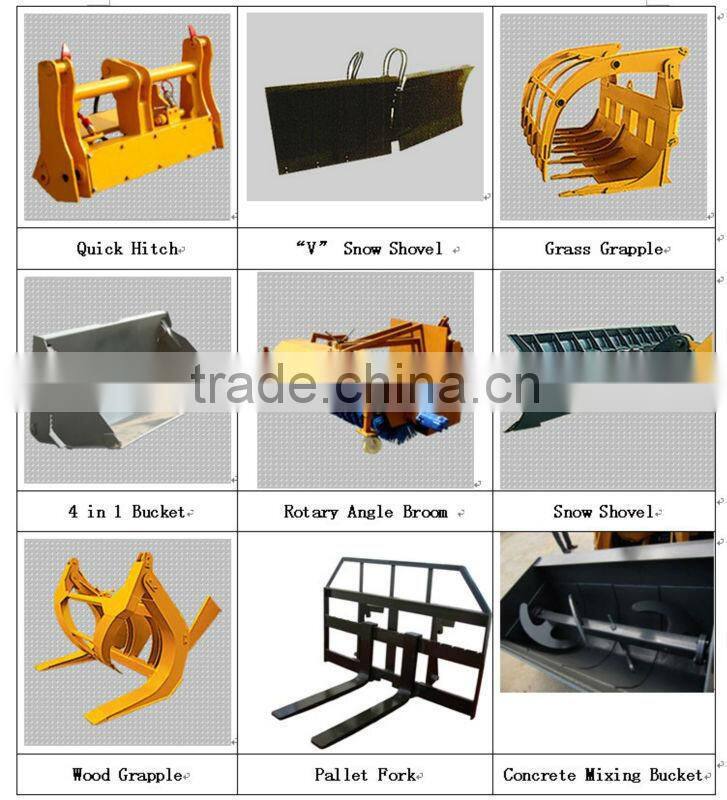

Optional Accessories:

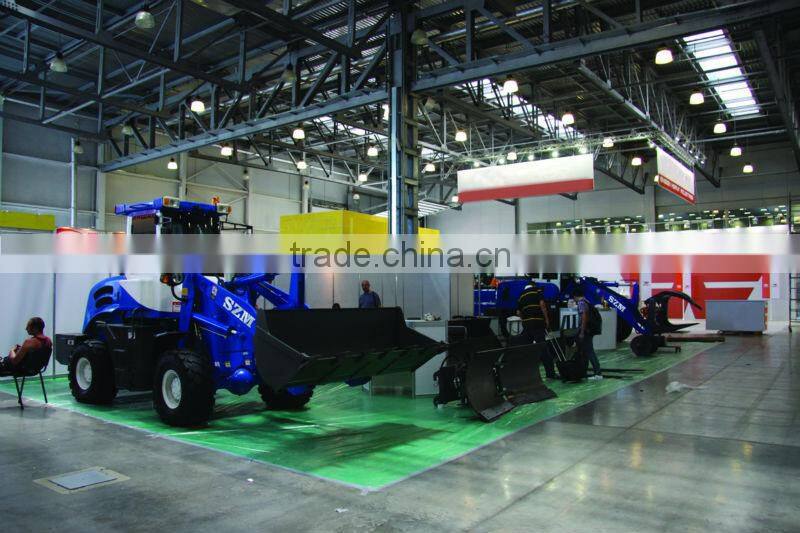

Exhibition Photos:

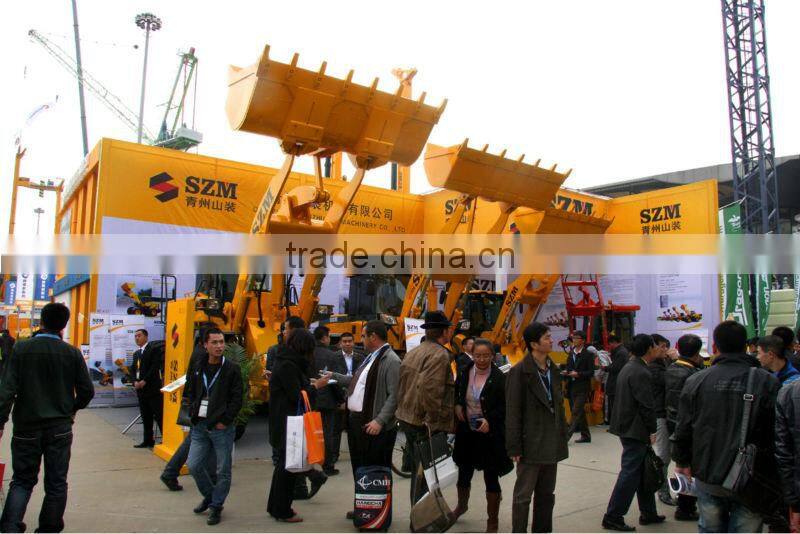

On Bauma Exhibition
On CTT Exhibition
