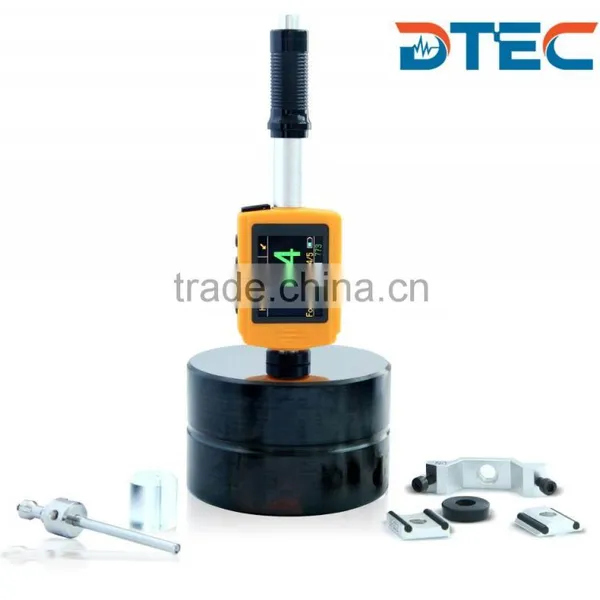

DH100 Pen Style Hardness Tester is a unique and advanced palm size hardness testing instrument, which collects the characters of small size, lightweight, attractive appearance,easy-operation,integrated design,colorful & high resolution display,low operation temperature and high accuracy, etc. It can be performance in a narrow space, in which other hardness testers feel difficult to measure.It is applicable to big specimen on-site hardness testing and batch testing on the specimen in production lines. Moreover, it is also used in metal manufacturing industry, transportation, power station, petrochemical industry, aircraft industry,construction and lab,etc.
Working Principle:
When the impact body,with a certain weight,impacts against the specimen surface under the action of spring force,leeb hardness comes from the ratio of the impacting velocity(VA) and the rebounding velocity(VB) of the impact body by the moment the spherical testing tip is located at 1mm point from specimen surface.
With principle of electromagnetism,the permanent magnet in the coil of impact device produced an induced voltage, which is in proportion to the impact body velocity.
The leeb hardness values are calculated by the following formula:
HL=1000X(Vb/Va)
Main Application:
- Die cavity of molds
- Bearings and other parts
- Failure analysis of pressure vessel, steam generator and other equipment
- Heavy work piece
- The installed machinery and permanently assembled parts
- Testing surface of a small hollow space
- Material identification in the warehouse of metallic materials
- Rapid testing in large range and multi-measuring areas for large-scale work piece

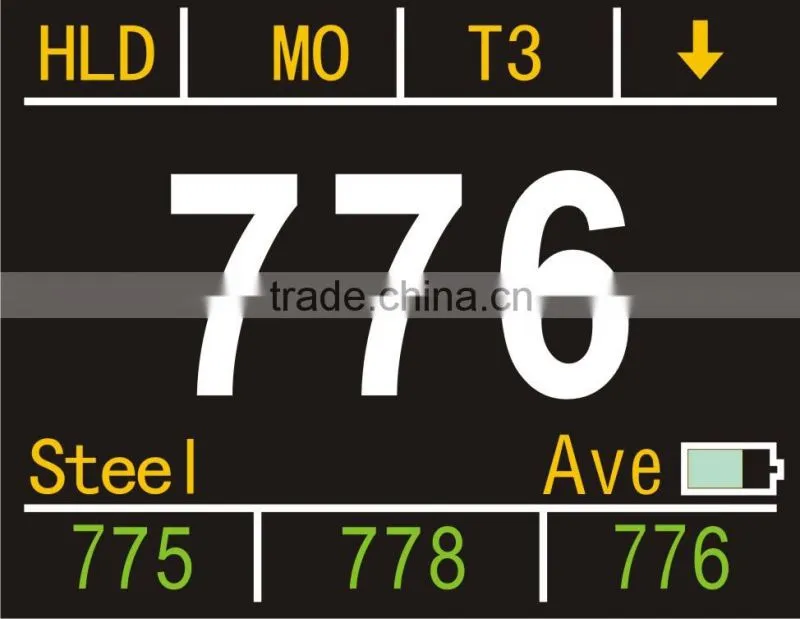

- The Unique Large-screen OLED (1.77 inch OLED) colorful display integrated hardness tester in the world;
- Pen style design, lightweight, small size, self contained Impact device and display integrated): no cables;
- Interchangeable between D type impact device (standard) and DL type impact device (optional), achieving one unit dual use,which is suitable to be used in the measurement in the restricted areas;(ONLY for DH110)
- Double coil design for impact device, without A/D conversion error, which enables to get the speed ratio directly with high repeatability;

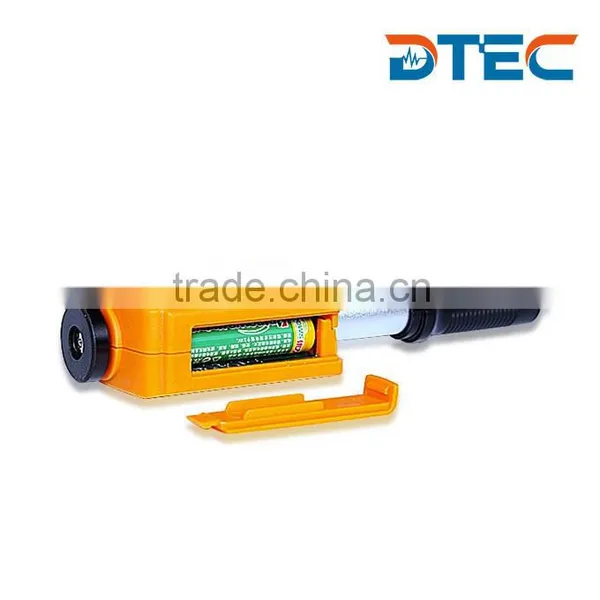

- With battery compartment, battery can be replaced. Using standard AAA chargeable Lithium battery;
- High accuracy in any impact direction (360°), automatically identify impact direction and gravity compensation;

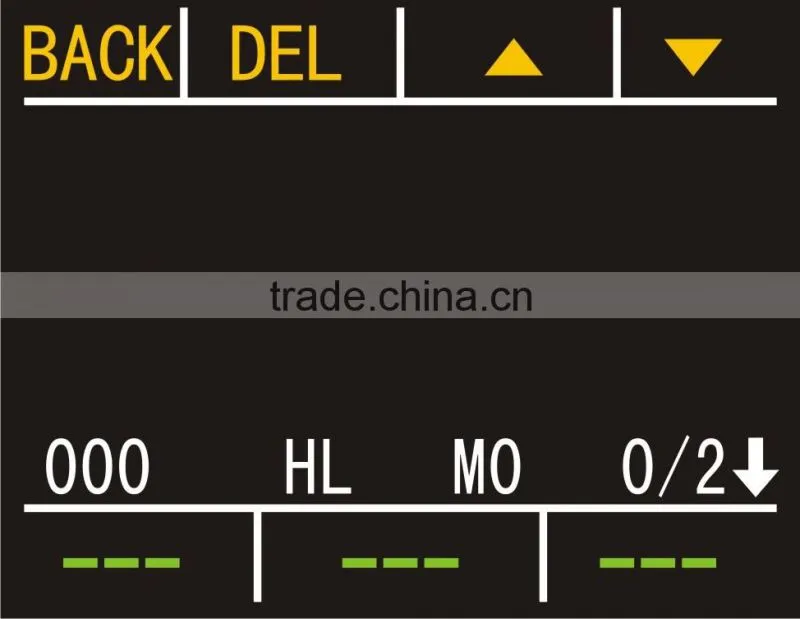

- Easy Operation, the four soft keys above the screen achieve the various functions;
- 6 Exchangeable hardness scales (HRB/HRC/HV/HB/HS/HL), measurable for the hardness strength σb;
- 8 kinds of material available, suitable to measure the hardness of all metallic materials;
- 1000 groups storage capacity, with standard data proceeding software and USB cable, enable to connect to PC and make further data analysis;(ONLY for DH110)
- Excellent after-sale service system for high quality products.Easy to buy and convenient to use.
Display |
Colorful display, 1.77 inch large OLED with resolution 160x128 pixels. |
Testing Range |
HLD(200-960),HRC(19.8-68.5), HRB(13.5-100), HB(30-651), HV(80-976), HS(26.4-99.5), σb (375-2639). |
Hardness Scale |
HL, HB, HRB, HRC, HV, HS, σb. |
Impact Device |
Standard: D Type, Optional: DL Type (ONLY for DH110) |

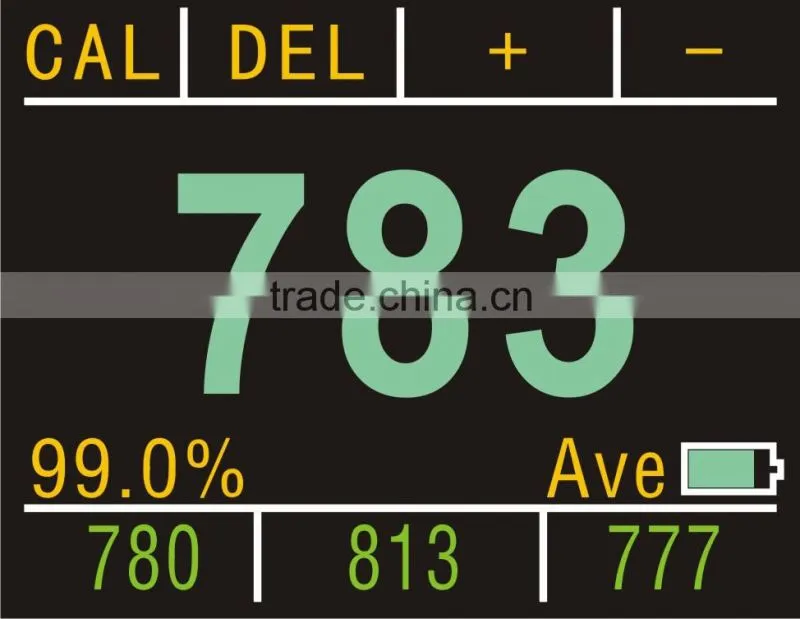

Calibration |
Automatic |
Accuracy |
±6HLD (HLD=800), Repeatability: <6HLD (HLD=800) |
Resolution |
1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS |
Testing Direction |
360 Degree by Manual Setting |
Available Material |
Steel& Cast Steel, Stainless Steel, GC iron, NC iron, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass. |
Storage |
1000 Groups (each group include 6 testing results and 1 average value). (ONLY for DH110) |
Communication |
USB port, used for recharging and data transmission. (ONLY for DH110) |
Software |
Stabdard LmVIEW Software for transmission, storage, and printing. (ONLY for DH110) |
Working Temp. |
-10°C—+50°C |
Power Supply |
AAA Polymer lithium battery, capacity of 600 MA/H,voltage:3.7 V, warning when under low voltage |
Auto Off |
AUTO OFF after 3 minutes of inactivity |
Dimension |
37x30x12cm (LxWxH) |
Packing Weight |
About 5.0 KG |
Quality Standard |
GB/T 17394-1998, ASTM A956 |
No. |
Type of impact device |
Hardness value of Leeb standard hardness block |
Error of displayed value |
Repeatability |
1 |
D |
760±30HLD
530±40HLD
|
±6 HLD
±10 HLD
|
6 HLD
10 HLD
|
2 |
DC |
760±30HLDC
530±40HLDC
|
±6 HLDC
±10 HLDC
|
6 HLD
10 HLD
|
3 |
DL |
878±30HLDL
736±40HLDL
|
±12 HLDL |
12 HLDL |
4 |
D+15 |
766±30HLD+15
544±40HLD+15
|
±12 HLD+15 |
12 HLD+15 |
5 |
G |
590±40HLG
500±40HLG
|
±12 HLG |
12 HLG |
6 |
E |
725±30HLE
508±40HLE
|
±12 HLE |
12 HLE |
7 |
C |
822±30HLC
590±40HLC
|
±12 HLC |
12 HLC |
Testing Range in Different Materials with Different Impact Devices:
Material |
Method |
Impact device |
|||||
D/DC |
D+15 |
C |
G |
E |
DL |
||
|
Steel and cast steel
|
HRC |
20~68.5 |
19.3~67.9 |
20.0~69.5 |
22.4~70.7 |
20.6~68.2 |
|
HRB |
38.4~99.6 |
47.7~99.9 |
37.0~99.9 |
||||
HRA |
59.1~85.8 |
61.7~88.0 |
|||||
HB |
127~651 |
80~638 |
80~683 |
90~646 |
83~663 |
81~646 |
|
HV |
83~976 |
80~937 |
80~996 |
84~1042 |
80~950 |
||
HS |
32.2~99.5 |
33.3~99.3 |
31.8~102.1 |
35.8~102.6 |
30.6~96.8 |
||
|
Cold work
tool steel
|
HRC |
20.4~67.1 |
19.8~68.2 |
20.7~68.2 |
22.6~70.2 |
||
HV |
80~898 |
80~935 |
100~941 |
82~1009 |
|||
|
Stainless steel
|
HRB |
46.5~101.7 |
|||||
HB |
85~655 |
||||||
HV |
85~802 |
||||||
|
Grey cast iron
|
HRC |
||||||
HB |
93~334 |
92~326 |
|||||
HV |
|||||||
Nodular cast iron |
HRC |
||||||
HB |
131~387 |
127~364 |
|||||
HV |
|||||||
Cast aluminum alloys |
HB |
19~164 |
23~210 |
32~168 |
|||
HRB |
23.8~84.6 |
22.7~85.0 |
23.8~85.5 |
||||
|
BRASS(copper-zinc alloys)
|
HB |
40~173 |
|||||
HRB |
13.5~95.3 |
||||||
BRONZE(copper-aluminum/tin alloys) |
HB |
60~290 |
|||||
Wrought copper alloys |
HB |
45~315 |
|
||||
Specification of Supporting Rings:

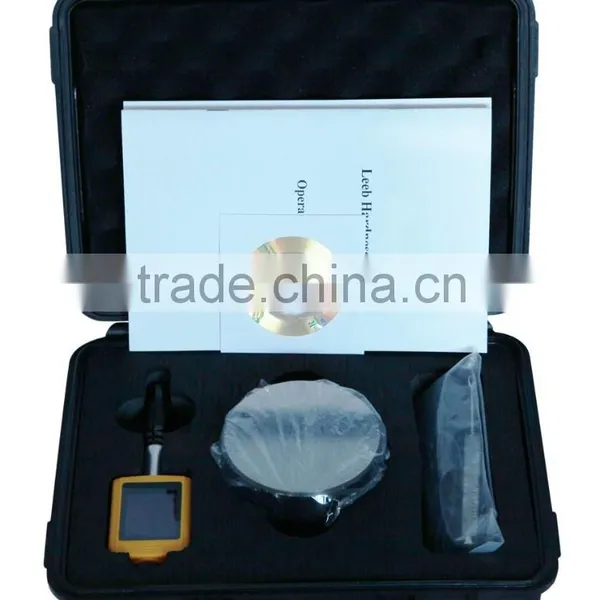

Standard Packing List:
No. |
Items |
Qty. |
1 |
DH100 Main Unit (D) |
1 |
2 |
Standard Hardness Block |
1 |
3 |
Cleaning Brush |
1 |
4 |
Small Support Ring |
1 |
5 |
AAA chargeable Polymer lithium battery |
1 |
6 |
Charger |
1 |
7 |
Manual, Warranty Card, Quality Certificate |
1 each |
8 |
Package Case |
1 |
Optional Accessories:
No. |
Items |
Notes |
1 |
Impact Device |
D Type |
2 |
Impact Body |
For D Type |
3 |
Supporting Ring |
Standard Type and Special Type, 12pcs/set |
4 |
Data Processing Software & USB Cable |
|
5 |
Standard Leeb Hardness Testing Block |
750-850HLD,590-670HLD,490-570HLD,550-630HLG,460-540HLG |
6 |

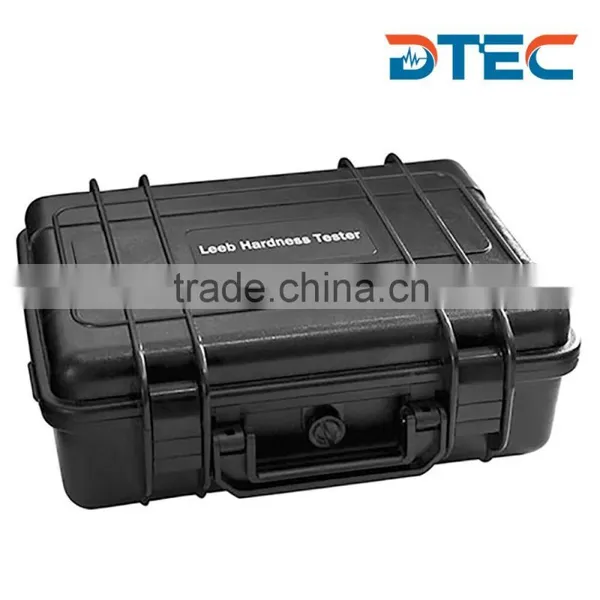

Instrument Case | 35x28x10cm(LxWxH) |
Standard Leeb Hardness Testing Block:

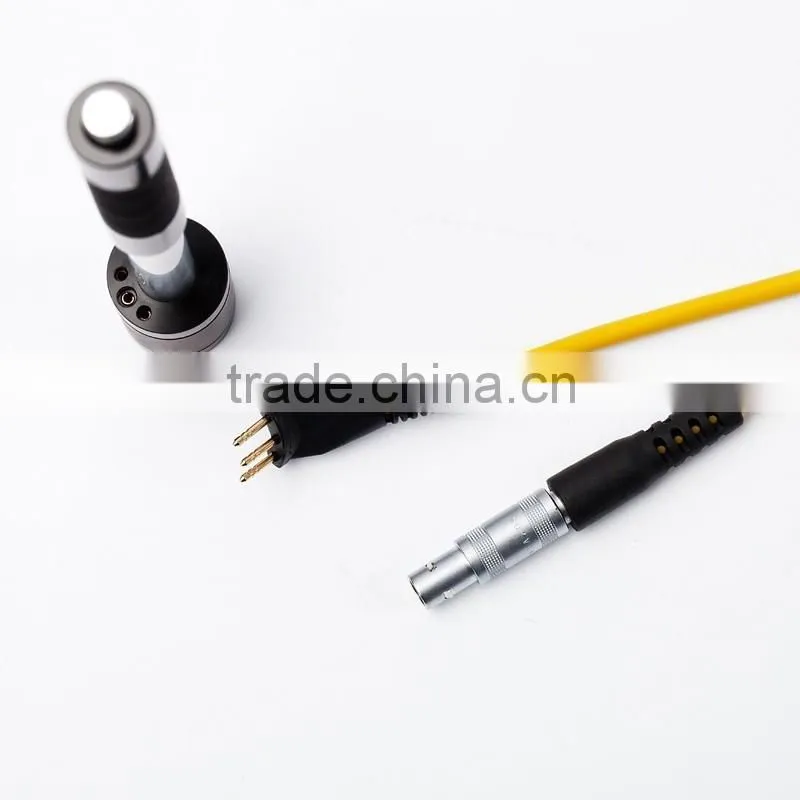

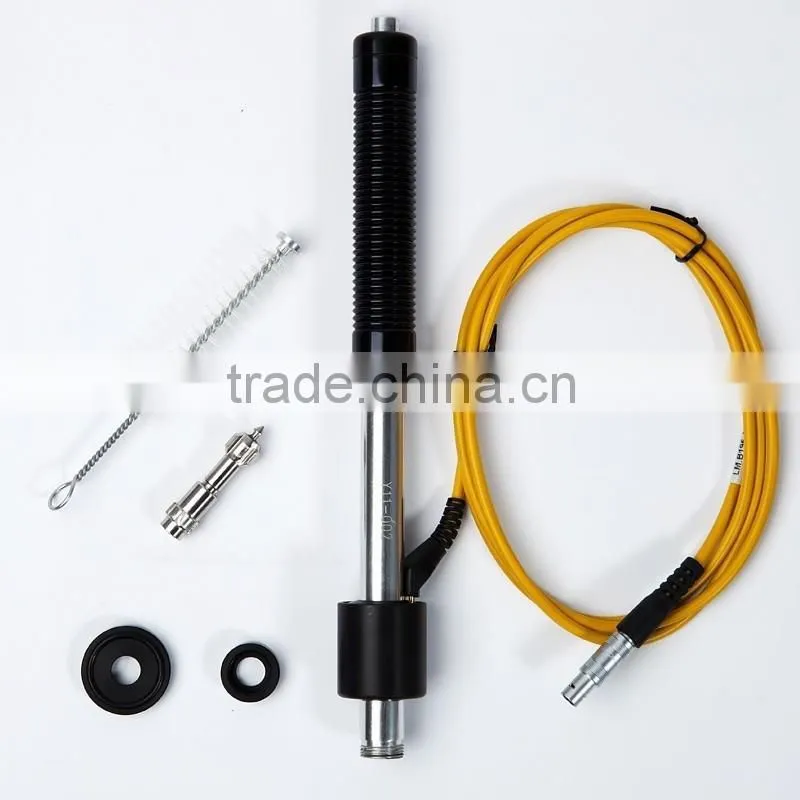

Impact Devices(This model only suitable for D Type)

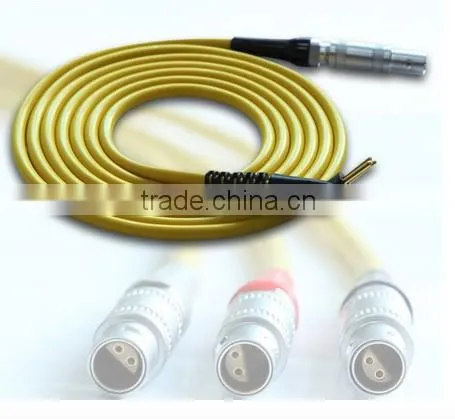

Cables for Impact Device(1.5M in Length):
Supporting Rings(12 pcs. each set):
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
