Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > 2015 HOT Sale 3m3 Bucket Capacity With Pilot Control and Air Conditioner 5t Wheel Loader

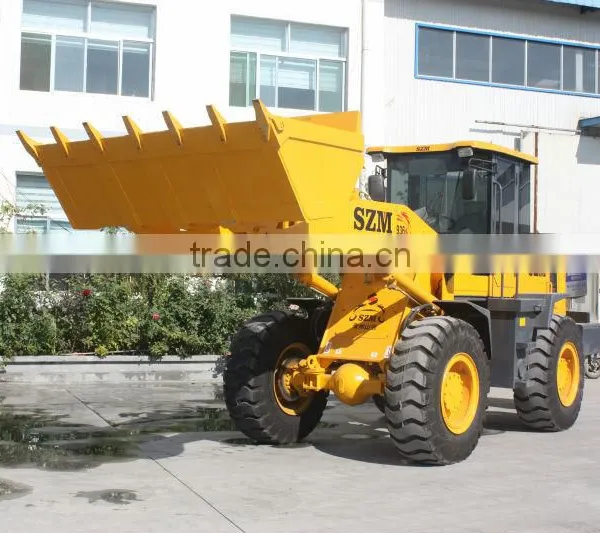

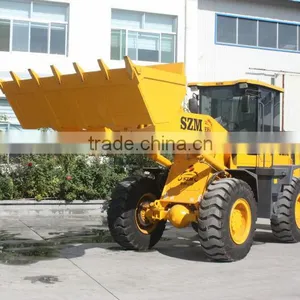

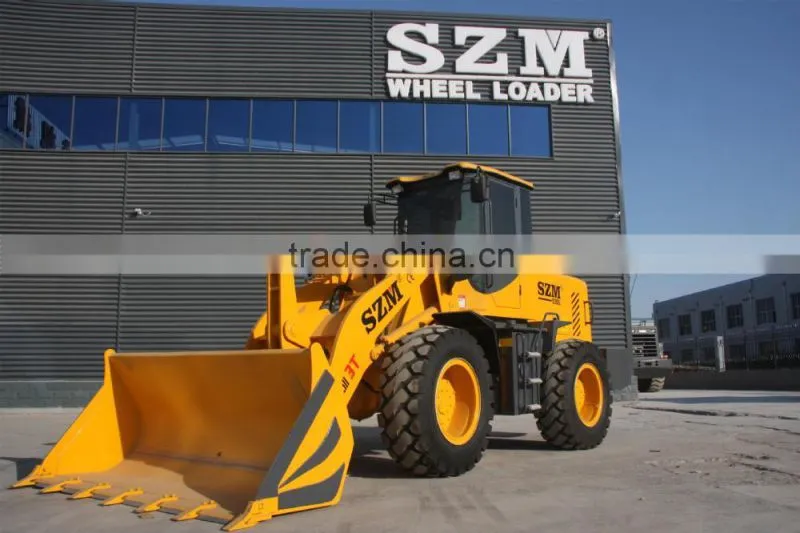

2015 HOT Sale 3m3 Bucket Capacity With Pilot Control and Air Conditioner 5t Wheel Loader
US$ 37,000 - 39,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
szm
Model Number:
956
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Underground Mining 5 Ton SZM 956 ZL50 Chinese Wheel Loader With Hydraulic TransmissionUS$ 36,000 - 42,000MOQ: 1 Set -
High Quality 5Ton Construction Wheel Loader Machinery With CE CertificateNegotiableMOQ: 1 Set
-
Underground Mining Loader 5 Ton Chinese Wheel Loader With Pilot ControlUS$ 36,000 - 42,000MOQ: 1 Set
-
Heavy Construction Equipment 5 Ton SZM 956 ZL50 Chinese Wheel Loader With Hydraulic TransmissionUS$ 36,000 - 42,000MOQ: 1 Set
-
Heavy Construction Equipment 5 Ton SZM 956 Chinese Wheel Loader With Hydraulic TransmissionUS$ 36,000 - 42,000MOQ: 1 Set
Condition
New
Brand Name
szm
Model Number
956
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7836*3010*3300mm
Rated Load
5000kg
Certification
CE,ISO ,GOAST
Warranty
1year or 2000hours
After-sales Service Provided
Overseas third-party support available
Weichai Steyr diesel engine offers great power and torque reserve and has lower fuel consumption and less noise. The engine has relable performance and is equipped with the standard 2-stage air filter adaptable to the more dusted work sites.
The LG50 power shift planetary transmission is compact and has more durable gears.the new tyepe of vibration damper is used to improve shock absorbing effects.
The selected model is Lingong 5-ton reinforced drive axle featuring outstanding performance and mature technologies. This drive axle has more load bearing capability and higher reliability.
The whole piece of carriage structure has beem through finite element optimization design and 200,000 times of fatigue intensified test. Both the front and rear carriages use the plate-style structure and thus the gravity is well-distributed. It has strong loading capability and rigidity as well as good stability.
| SPECIFICATIONS | |
| Rated capacity | 3m3 |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max. breakout force | 172.6KN |
| Max. drawbar pull | 151.9KN |
| Max. grade ability | 30° |
| Total of three time:lifting,dumping, lowering | 11.3s |
| Max.dump height | 3098mm |
| Max.dump reach | 1198mm |
| Min. ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Pattern | Inline,water cooled, dir.inject,fourstrokees |
| Cylinder-bore*stroke | 6-126*130 |
| Max.torsion | 779Nm |
| Model of engine | STEYR WD10G220E21 |
| Rated power | 220hp |
| Min.fuel consuming rate | 214g/kw.h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element,single stage |
| Number of great shift | 4 forward,4 revers |
| Max.travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering,load sensing meets |
| Steering angle(each direction) | 35°C±1 |
| Min.turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32·2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
| Pressure of working hydraulic system | 160kfg/cm2 |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
