Help CenterWood Engraver For Export HD-M25X With X Y Working Area 1300X2500mm and Z Working Area 200mm and Table Size 1480X3000mm
Related Products
Specifications

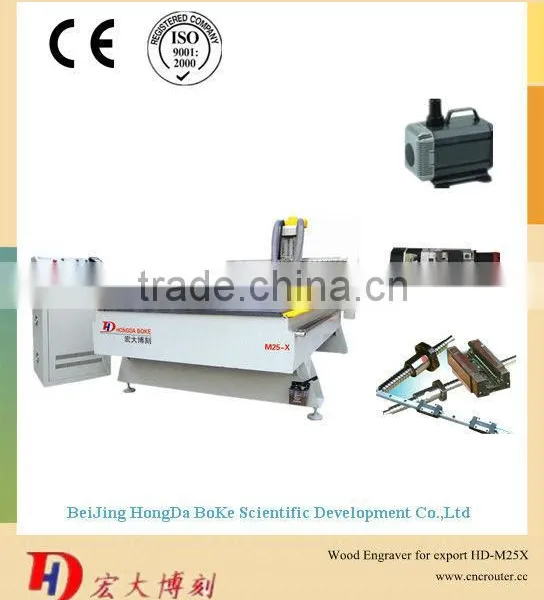

Wood Engraver For Export HD-M25X with X Y working area 1300X2500mm and Z working area 200mm and Table size 1480X3000mm1.PMI sq
Wood Engraver For Export HD-M25X with X Y working area 1300X2500mm and Z working area 200mm and Table size 1480X3000mm
Technical-parameters:
Model |
M25-X |
XY working area |
1300X2500mm |
Z working area |
200mm |
Table size |
1480x3000mm |
Max feeding |
>35m/min |
Work-holding |
By suction |
Processor |
DSP/Frequency 100MHz |
Interface |
USB |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
DSP |
Power(not include the spindle) |
1840W |
Working voltage |
380V/50Hz |
spindle power rate |
4.5KW(italy air cooling) |
spindle rotating speed |
0-18000rmp/min |
Drive motor |
stepper |
Configurations:
Characteristics:

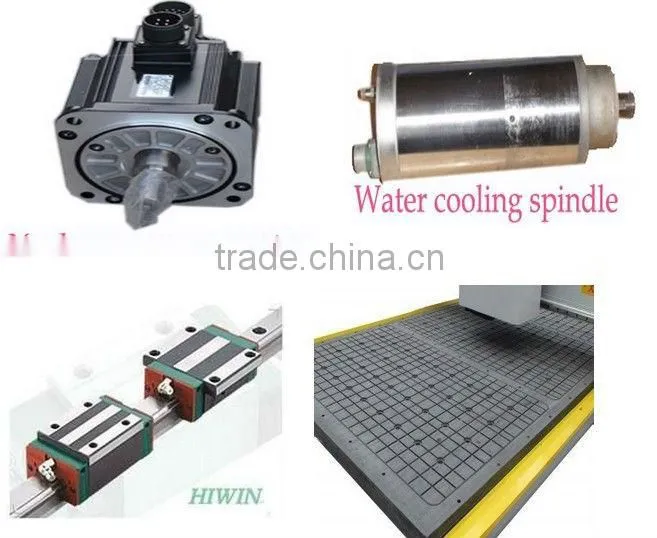

1.Adopt imported linear square guid rail, four ball bearing pieces in double lines, the machine can bear high weight and run stably with high precision and long life.
2.Advanced DSP control system with USB interface, handle controlling offline, humane designation make it easy to operate.
3.Vacuum absorb table and no oil vacuum pump. Large adsorption power. Small maintenance, stable performance ensures convenient operation. High power Stepper motor and drive system to go with the Ail cooled, high power cutting main axis make the speed of engraving faster.
4.Unique intelligent budget principle. Fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines. Smoother curves.
5.The software compatibility is good. It is compatible with type3/artcam/castmate/artcut/ucancam and CAD/CAM design software.
Samples:
