Bridge Type Hydraulic Large Scale Stone Cutting Machine

Bridge Type Hydraulic Large Scale Stone Cutting Machine thumbnail-1
Bridge Type Hydraulic Large Scale Stone Cutting Machine photo-1
US$ 5,600 - 7,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Stone Cutting Machine
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Beijing Hongda Boke Scien-Tech Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Stone Cutting Machine
Place of Origin Shandong, China
Brand Name Hongda Boke

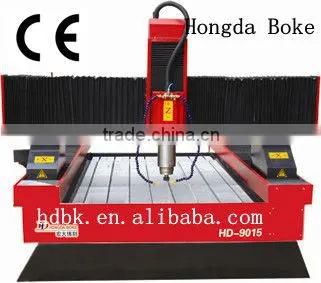

Model Number HD-9015
Dimension(L*W*H) 1500*2500*200mm
Certification ISO CE
Warranty 12 mouth

Specifications

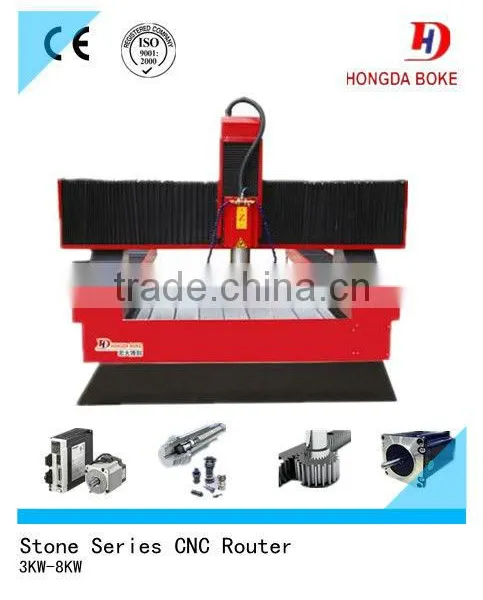

Stone engraving machine/cnc stone router
1.NC studio control system
2.High power water cooled spindle
3.High speed stepper





Bridge type hydraulic large scale stone cutting machine

Technical parameter:

Description

Parameter

HD-9015

Working  Area (X*Y*Zmm)

900*1500*200

Max Moving Speed

30000mm/min

Max Engraving Speed

10000mm/min

XYZ traveling positioning accuracy

±0.04/300mm

XYZ repositioning accuracy

±0.04mm

Spindle Speed

6000-24000rpm

Spindle power

2.2KW-6KW

Diamerer of tools

3.175, 6mm, 12.7mm

Working Voltage

AC220V/50Hz(option,AC380V/50Hz)

Drive motor

Stepper/Servo

Command language

G code,HPGL

Operating system

NC-studio, option: DSP system

Interface

USB

Software Compatibility

Type3, Ucancam,Artcam Software

Running Environemt

Temperature: 0°C~45°C

Relative humidity: 30%~75%



 Equipment Features

1. Excellent design and well-chosen electric accessories minimize the failure rate.
2. Water tank and automatic water-supplying cooling system protect the tool effectively while processing all kinds of stone.
3. Automatic oil supplier makes the maintenance operation easily.
4. Dust protector and waterproof design ensure stable transmission. Application:3D/2D engraving, Embossment, Line engraving, Cutting, Edge inversing, Drilling on Natural stones, Granites, Artifical stones, Tombstones, Milestones, Ceramic, Glass, etc.

Applicable industry
for Quarried Stone ,artcraft,tombstone,building etc..


Applicable material
tile, marble, granite, white marble, sandstone, glass, metals

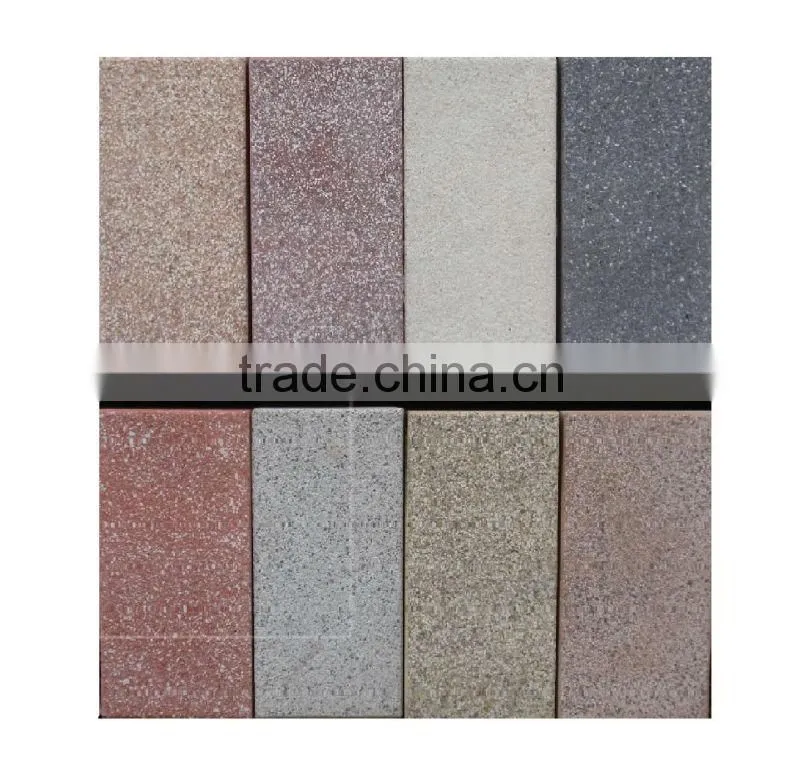

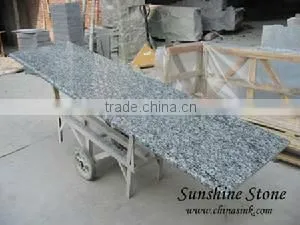

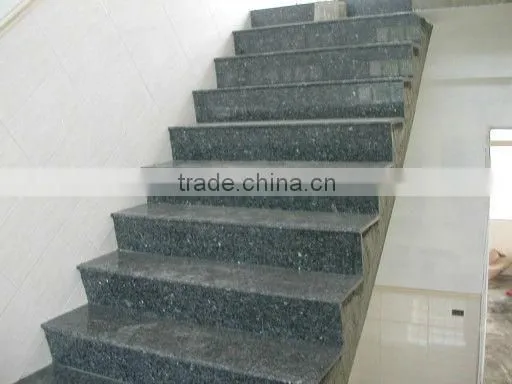

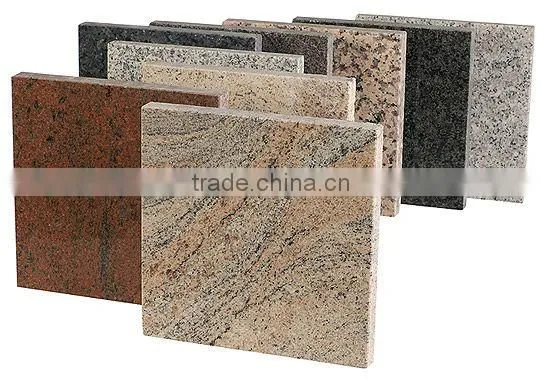

 SAMPLE

Bridge type hydraulic large scale stone cutting machineBridge type hydraulic large scale stone cutting machineBridge type hydraulic large scale stone cutting machineBridge type hydraulic large scale stone cutting machine



FAQ:



1) This is the first time I use this kind of machine, is it easy operate?



There are guide video that show how to use machine and english instruction book send to you with machine.



If there is still have any question, we will provide free professinal guide for you until you could use machine well.





2) If machine have any problem after I ordered it, how could I do?



Free parts send to you in machine warranty period if machine have any problem.



Free after-sales service life for machine, please feel free contact us if your machine have any problem.





Shipment:





1) Usually we will quote FOB price,if you need the shipping cost,please tell me your nearest port(destination port),if you need we send the machine to your door,please let me know your address with post code.





2) The shipping cost does not cover any local taxes,import duties or customs clearance costs levied by your government. The buyer is responsible for these import-related costs.Please check with local customs office for more information.





3) We will inform you when the order finished,before shipment,after shipment,when the machine



 arrive at your port,so please keep in touch with us in order to get the machine smoothly.



Bridge type hydraulic large scale stone cutting machine



To provide you detailed quotation, we need to confirm the following detailes :



 1.what is raw material



 2.the size of material



 3.Your other requirement







 Moreover, we can produce the machine as your actual requirement. Sincerely looking for the agent all over the world.
