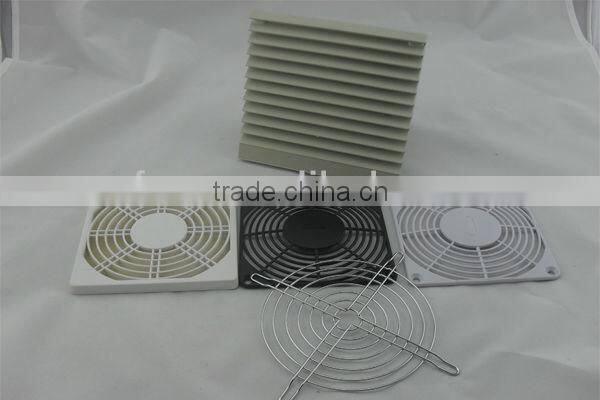

Extra-thin panel cabinet fan filter

Specifications

• Frame material is made from heat resistance and anti-flame ABS plastic .Its fire-resistance ability
• Non-woven fibre filter pad is used to prevent dust and granule which is bigger than 10 micron.

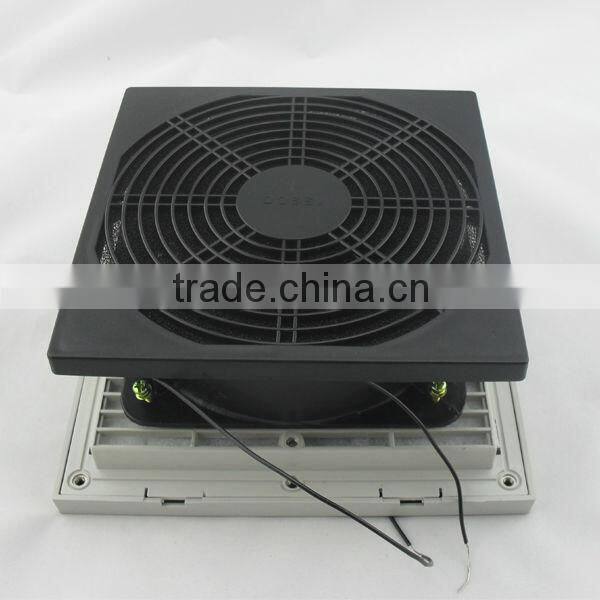

• Big power axial fan can make sure filtration air with best flow speed.
• The fan which air filter matched is with F insulation class has good capability of temperature raise.
• Fan motor has excellent impedance protection and temperature protection (TOP).

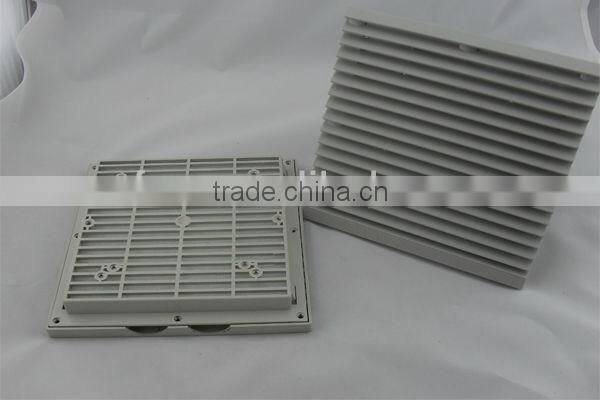

• Its easy to change the filter pad by using the groove handle on shutter.
• Air filter has IP55 class protection due to set of seal loop.
•  Ventilation shutters rain-proof capability can not only prevent mechanical damage, and also can resist the moist coming.
• Project part of exceed shutter is only 4-6mm , which increase its beauty greatly.
• Clients can choose blow or suck air direction through reversing the fans installation simply.

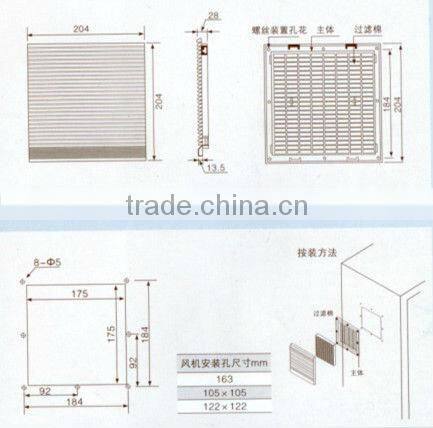

• Installation of air filter fan is easy and quick.. You need only open a square hole on it or fix it by screw further more.

• Item No.	Filter Size
  ZL150	150*150*13.5mm
  ZL205	205*205*13.5mm
  ZL256	256*256*13.5mm
  ZL320	320*320*13.5mm
  ZL803	148.5*148.5*13.5mm
  ZL804	204*204*13.5mm
  ZL805	255*255*13.5mm
  ZL806	320*320*13.5
