Electrical Panel Fan Filter ZL256 Fan Filter

Name: Electrical Panel Fan Filter ZL256 Fan Filter
Brand: Dossy
SKU: 121554029
Availability: InStock

US$ 1 - 5 MOQ: 10 Pieces

Key Specifications

Condition:

New

Efficiency:

89%

Construction:

Panel Filter

Zhejiang Fengdeng Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Wenzhou Yiwu Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency 89%

Construction Panel Filter

Filtration Grade Hepa Filter

Medium Material Cotton

Place of Origin Zhejiang, China

Brand Name Dossy

Model Number ZL256

Dimension(L*W*H) 150*150*13.5mm

Weight 156g

Warranty 1 year

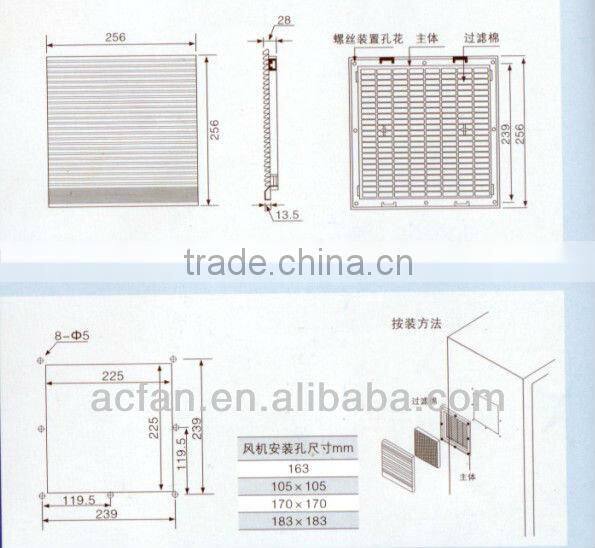

Specifications

model: ZL-256
dimension(mm): 256*256*13.5mm
installation(mm): 225*225mm

Frame material is made from heat resistance and anti-flame ABS plastic .Its fire-resistance ability
Non-woven fibre filter pad is used to prevent dust and granule which is bigger than 10 micron.
Big power axial fan can make sure filtration air with best flow speed.
The fan which air filter matched is with F insulation class has good capability of temperature raise.
Fan motor has excellent impedance protection and temperature protection (TOP).
Its easy to change the filter pad by using the groove handle on shutter.
Air filter has IP55 class protection due to set of seal loop.
Ventilation shutters rain-proof capability can not only prevent mechanical damage, and also can resist the moist coming.
Project part of exceed shutter is only 4-6mm , which increase its beauty greatly.
Clients can choose blow or suck air direction through reversing the fans installation simply.
Installation of air filter fan is easy and quick.. You need only open a square hole on it or fix it by screw further more.
