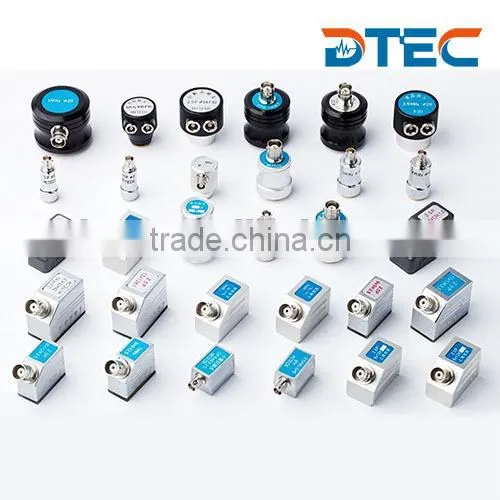

Help CenterDTEC NDT Probe,Single,Dual Crystal,Straight,Angle Probe,Transducer for UT Equipment,Customized OEM Probes,manufacturer Price Quality Choice
Related Products
-
DTEC High Temperature UT Probe,Up to 500 C,Single,Dual Crystal,Straight,Angle Probe,Customized OEM Probes,manufacturer PriceUS$ 30 - 100MOQ: 1 Piece -
DTEC Leeb Hardness Testing Block,HLD and HLG Hardness ScalesUS$ 1 - 50MOQ: 1 Piece
-
DTEC Shore A Hardness Standard Block,HA Hardness Scales,7 Pieces per SetUS$ 50 - 100MOQ: 10 Pieces
-
DTEC Shore D Hardness Standard Block,HD Hardness Scales,3 Pieces per SetUS$ 50 - 100MOQ: 1 Piece
-
DTEC Rockwell Hardness Testing Block,,HRA,HRB,HRC,Square and Circular TypeUS$ 1 - 50MOQ: 10 Pieces
We are Original probe producer,can make you probes at any given requirement,including brand label,e.g.GE,Olympus etc.All our probes comes with high quality crystal,with good signal and stable performance.
All probe specification can be customized according to your requirement.
Plese do inform me the folowing information when you need UT probes:

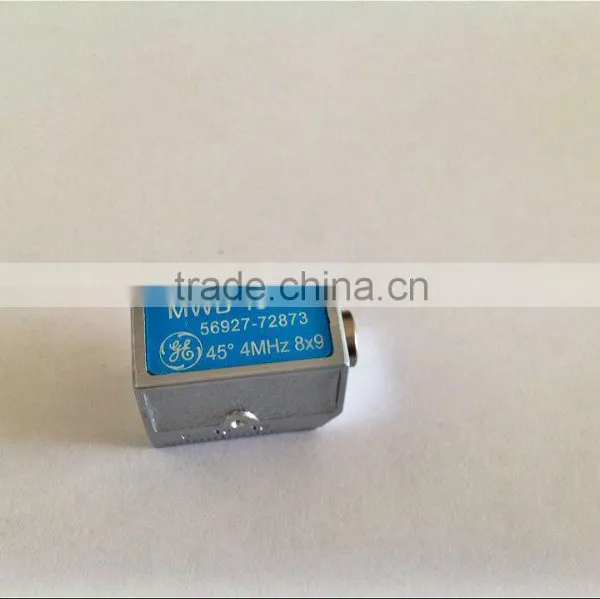

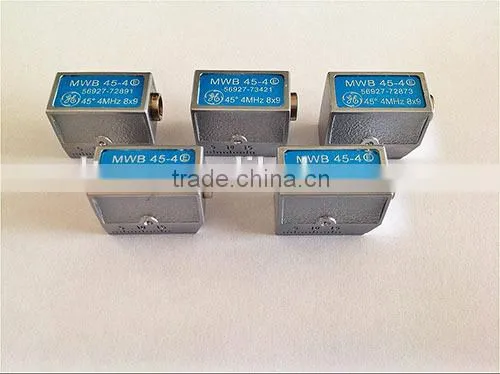

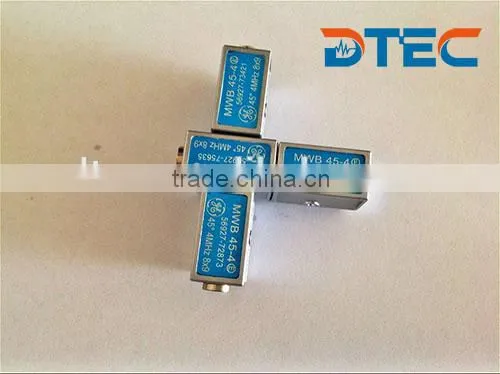

1)Probe type:Angle Probe or Straight Probe;
2)Angle:40C,60C,70C or others;
3)Crystal Type:Single Crystal,Dual Crystal;
4)Crystal Size:normal size:8x9mm;
5)Frequency:normal 2MHz,4MHz.
The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°,45°,60°,70°,80°.
Name |
Normal Ultrasonic Probe |
|
Working Temperature |
10-80 ℃ |
|
Probe Type |
Angle Probe, Straight Beam Probe. |
|
Crystal Size (mm) |
Angle Probe |
Common Size: 6x6, 8x9, 10x10, 13x13, 14x16, 18x18, 20x20, 20x22,22x22, 25x25,etc. Or can be made according to requirement. |
Straight Probe |
Φ5,Φ8,Φ10,Φ12,Φ14,Φ16,Φ20,Φ25,Φ30,etc.
Or can be made according to requirement.
|
|
Angle |
45°,60°,70°,80°. |
|
Frequency (MHz) |
Common: 0.5MHz, 1MHz, 2.5MHz, 4MHz,etc.
Or can be made according to requirement.
|
|
Connecting Port |
Single Crystal (LEMO C5 or C9), Dual Crystal(LEMO C5C5 or C9C9) |
|
Wave Modes |
Shear Wave or Longitudinal Wave. |
|
Packing Weight |
50g-200g. Depends on Crystal Size |
|
Dimension |
Depends on Crystal Size |
|

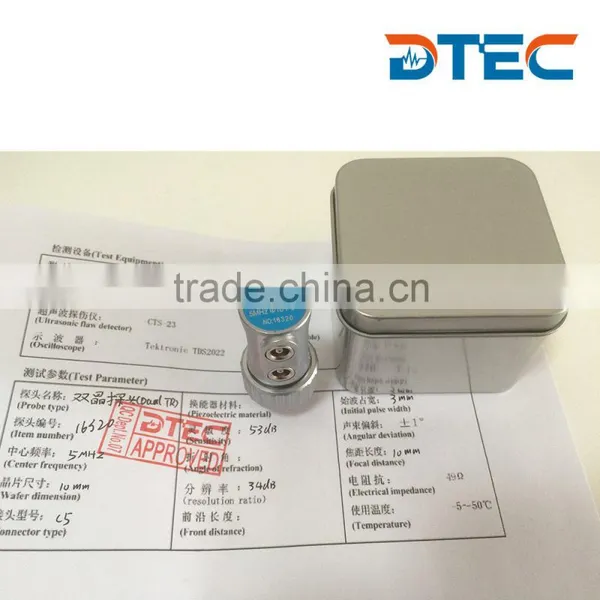

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
Below is packing detail for all UT probes(small metal case,much more safe):
