Specifications
Cylinder head machine1.Imported motor
2.Two-way position rail high precision
3.Make wood crafts

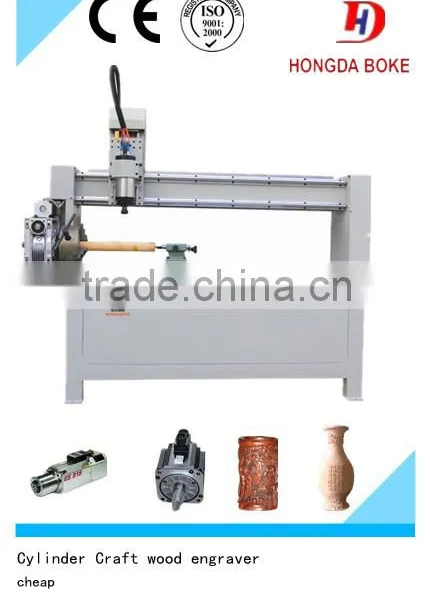

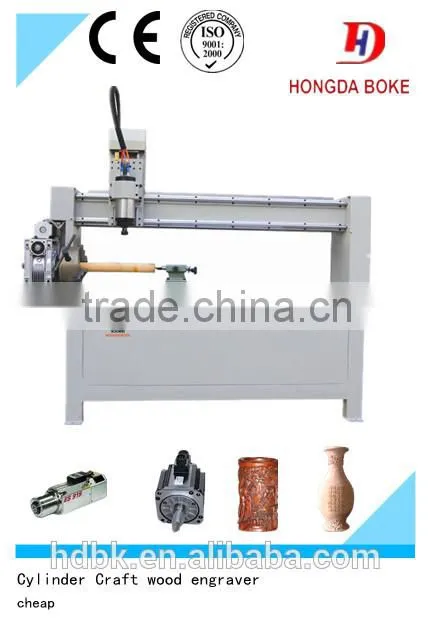

3D Cylinder head Cnc woodworking machine HD-1200Y
Performance features:
1.Supply various cylinder engraver,meet your different processing requirements.
2.Adopt imported linear square guide,ensure higher positioning accuracy.
3.Handle controlling,not occupying computer resource,one computer can control several equipments.
4.Own functions of restoring from power off,continuation from break point,repeat engraving,support nine coordinate positioning,friendly designing.
5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc.
Application:
Stereo 3D technology,furmiture stereo feet and the cylinder, the human body,figure of Buddha,the goddess of mercy,
sculpture,handicrafts,stair handrail,cylinder Musical Instruments.
What industries and materials are suitble?
1) Wood, bamboo products, acrylic plate, plastic, plexiglass, ceramic tile, marble, jade, crystal, shell
and other non-metallic materials and a variety of metal materials.
2) It specifically for cylindrical, conical body parts such as rotary engraving on patterns, characters,
relief. Materials related to aluminum sculpture, steel, plastic, timber.
Technical parameters
Model |
HD-1212Y |
Cylinder diameter |
< 200mm(optional) |
Cylinder length |
1200mm |
Working accuracy |
0.03mm |
Repositioning accuracy |
0.03mm |
Transmission |
X by rack Z by ballscrew |
Max. travelling speed |
22m/min |
Max. Working speed |
12m/min |
Spindle power |
3.0KW |
Spindle speed |
0-24000RMP |
Power supply |
AC220V/50-60Hz |
Command |
G code/mmg/plt/ |
Working area |
1200*200mm |
Dimension |
1680*800*1500mm |
Total weight |
Approx. 1500kg |
Warranty |
1 year |
Components
Spindle |
Water cooling spindle |
Inverter |
Fuling inverter |
Controlling system |
DSP handle or Ncstudio computer control |
Motor and drive |
Leadshine stepper motor and driver |
Guide rail |
Taiwan Hiwin linear rail |
Products:
why choose Hongda Boke product?
1.Hongda Boke product is widely used in almost all the materials you can think of .
2.Hongda Boke company is specialized in CNC Router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is pretty competitive.
3.Hongda Boke machine with high precision and excellent reputation is the most reliable product you can choose.
4.Hongda Boke company has all kinds of machines in store, the delivery time is much shorter than other companies.
5.Hongda Boke company has international technical service office and provides 24 hours online services and technical supports for customers.

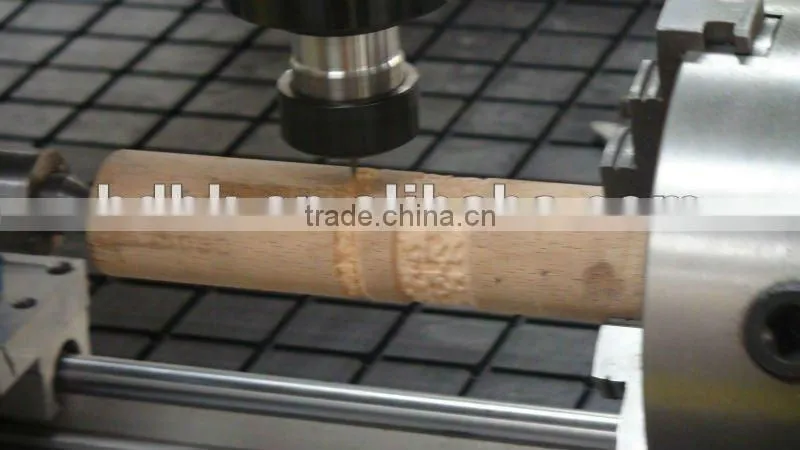

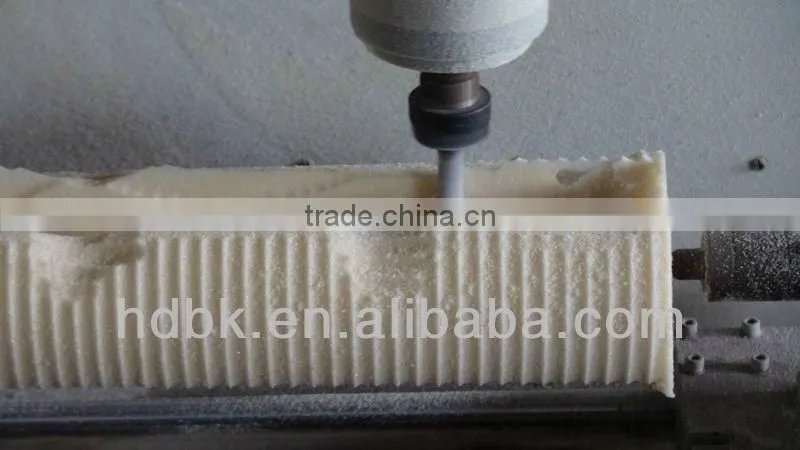

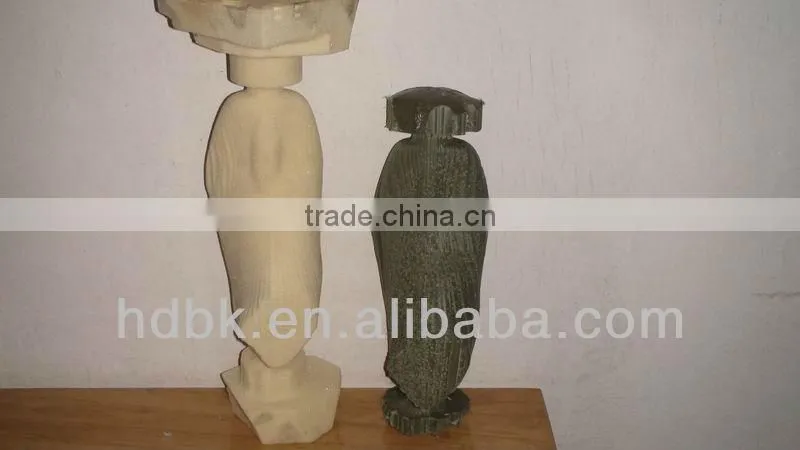

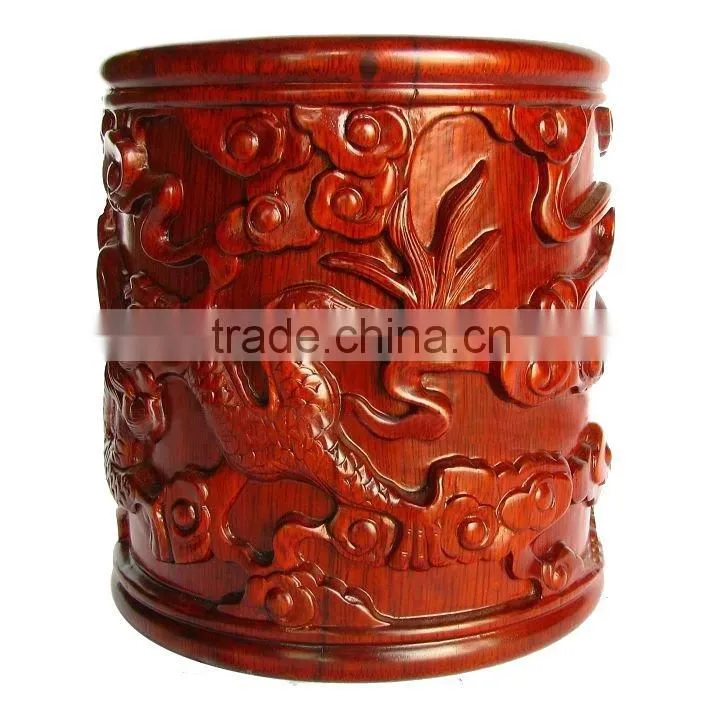

The working samples:
Our factory:
Technology support:
Packing :
Our services:
1.The processing demo video and E-catalogue will be mailed as your request.
2.One year free warranty under normal using.
3.Free training to guarrantee you can operate machine correctly.
In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting machines and so on.
we can make carving machines with all specifications to meet user's requirements.
Thank you for your visiting the product of HongDa BoKe!
Your satisfaction is our pursuit.My Skype:amy5427.
