Specifications
CNC Advertising machine1.Ncstudio control system
2.Taiwan square orbit
3.Stepper motor drive
4.T-slot alumiunium table
HD-1212 CNC Advertising machine
Standard configurations:
1.Whole Steel structure, imported Taiwan linear square orbit, gear rack for XY axis, German ball screw for Z driving.
2.Advanced DSP control system. Wentai Software and Artcam Software,
3.High frequency 1.5kw water cooling spindle.
4.Adopt high speed Stepper motor,high power driver,Taiwan Inverters.
5.Dust cover,auto-oiling system,auto-aligning system.
6.10 cutters and 2 collect(6mm,3.175mm)
Specifications:
1. Taiwan high precision Linear guide rail, the bearing of the lead guide rail is face to face. high-precision linear guide rail of CNC equipment manufacturers use some of the ordinary life of the 2200-Advisory times, long-term use of high accuracy.
2. High-speed stepper driver, faster than the original model, up nearly two meters. X-axis adopt popular no dust structure, effectively guaranteed the long-term operating performance of the mechanical aspects.
3. The compatibility is high; compatible Type3/Artcam/Castmate/Corelerow/Wentai,and other CAD/CAM software, which can produce exquisite relief, video sculpture, three-dimensional art works.
4. Dual-motor driver, a unique dual-axis drive, large strength, transmission smoothly, high-speed ensure for long time and guarantee no distortion.
Technical parameters:
Model |
HD-1212-T |
XY working area |
400X1200mm(each head) |
Z working area |
200mm |
Table size |
1380x1500mm |
Max feeding |
25m/min |
Work-holding |
By T-slot |
Processor |
DSP/Frequency 100MHz |
Interface |
USB |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
Windows98/2000/XP |
Power(not include the spindle) |
2000W |
Working voltage |
220V/50HZ |
spindle power rate |
3x1.5KW (water cooling spindle) |
spindle rotating speed |
0-24000rmp/min |
Drive motor |
Stepper |

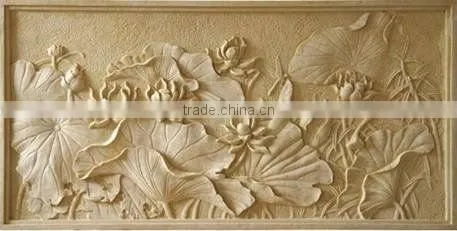

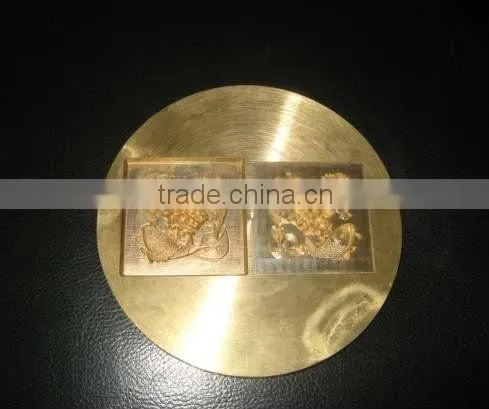

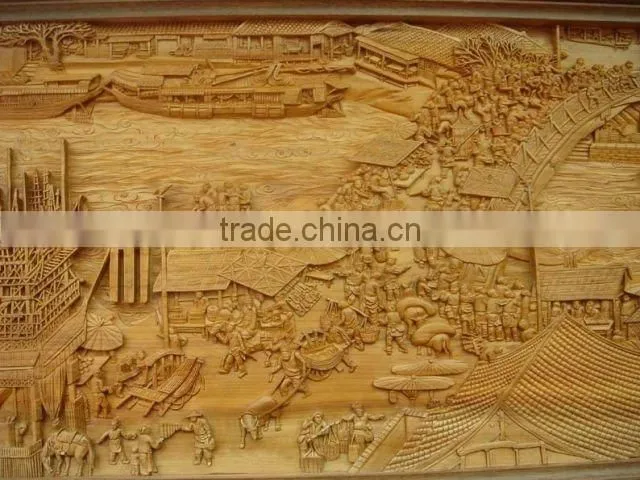

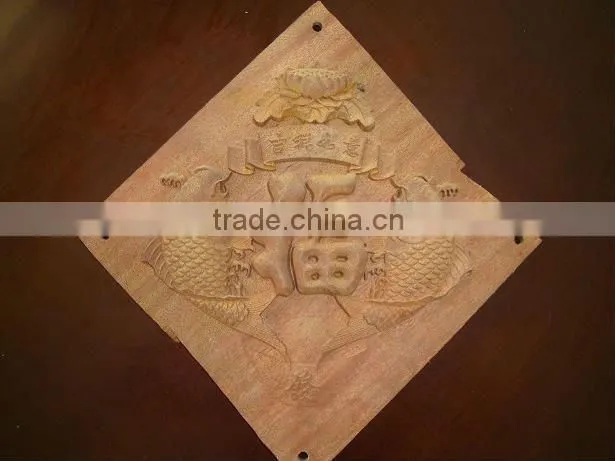

Samples:
