Specifications
Advertising CNC Router1.Work area 600*900mm,linear guide rail,,ballscrew
2.Wei Hong control system,1.5kw water-cooled spindle

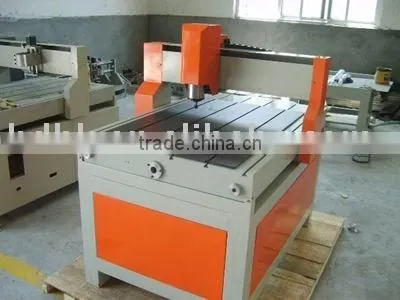

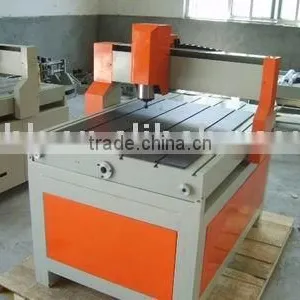

Advertising CNC Router
Equipment Features:
1. German automatic double-nut ball screws.
2. Linear guide rail,the bearing of the lead guide rail is face to face.high-precision linear guide rail of CNC equipment manufacturers use some of the ordinary life of the 2200-Advisory times,long-term use of high accuracy.
3. High-speed driver,faster than the original model,up nearly two meters.
4. X-axis adopt popular no dust structure,effectively guaranteed the long-term operating performance of the mechanical aspects.
5. Break point and break knife continue engraving function supporting up to nine pointsand can engrave at any places as you like.
6. The compatibility is high;compatible Type3/Artcam/Castmate/Corelerow/Wentai,and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works.
7. High-power frequency changing water cooled spindle can cut 20-30mm organic glass at one cut,widly applies to advertising,mold,gifts,woodworking building model processing and production.
Technical-parameters:
Model |
HD-6090 |
XY working area |
600x900mm |
Z working area |
>100mm |
Table size |
720x1150mm |
Max travel speed |
4m-5.5m/min |
Max engraving speed |
2m-3m/min |
Resolution ratio |
0.005mm |
Reposition accuracy |
0.05mm |
Max feeding height |
100mm |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
Windows98/2000/xp |
Power(not include the spindle) |
300W |
Working voltage |
AC220V/50Hz |
spindle power rate |
1.5KW |
spindle rotating speed |
0-24000rpm/min |
Drive motor |
Steper |
