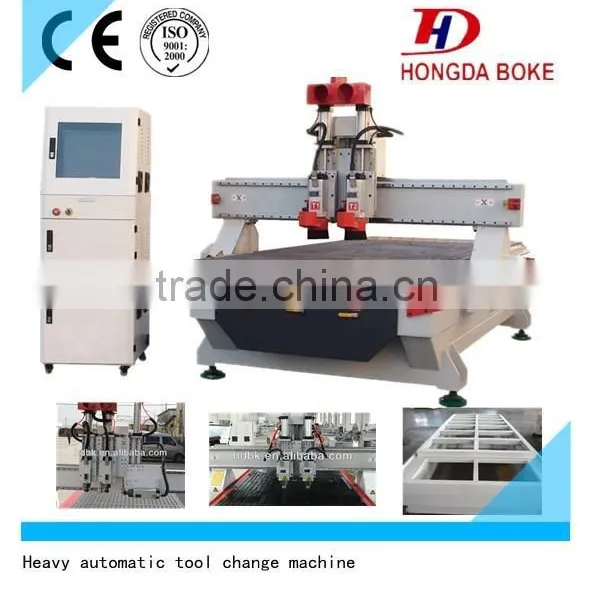

HDM25-T Two Heads Woodworking CNC Router machine/CNC Engraving machine/CNC Routers
1.Standard configurations:
1.Whole Steel structure, imported square orbit, ballscrew for z axis, gear-wheel for x axis and y axis
2.Advanced u flash disk DSP control system, Wentai Software and Type3 Software
3.Adopt 4.5KW air cooling spindle, vacuum table with 6 zones separately control, no oil vacuum pump
4.3.0kw Dust collector system , dust cover, 10 cutters( φ6, φ12.7), 2 collets
5.Well compatbility:CAD/CAM designing software,Type3/Artcam/Castmate/Wentai etc.
6.High speed Stepper motor and drivers,two motors for Y axis,the max speed is 35m/min,highly upgrade the processing speed
2.Technical parameters:
Model |
HDM25-T |
XY working area |
1300X2500mm |
Z working area |
200mm |
Table size |
1440x3040mm |
Max idling |
>45m/min |
Max feeding |
>35m/min |
Work-holding |
By clamps |
Processor |
DSP/Frequency 100MHz |
Interface |
USB |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
Windows98/2000/XP |
Power(not include the spindle) |
1850W |
Working voltage |
380V/50HZ |
spindle power rate |
4.5KW (air cooling spindle) |
spindle rotating speed |
0-24000rmp/min |
Drive motor |
Servo |
1.Beijing hongda boke scien-tech development co.,ltd is the professional CNC router manufacturer.we adopt many computerized numerical patents. Our company is devoted in the research and development of caving CAD/CAM technology and
CNC technology and have obtained remarkable achievement in the design of precise caving machine as well as artistic carving . we have relized industrialization of the CNC technology .our router series are sold in many of European and American countries which have established a leading position in the carving machine field.
2.Our products have covered woodworking industry,advertising decoration, making label industry as well as crafts and gifts fields.

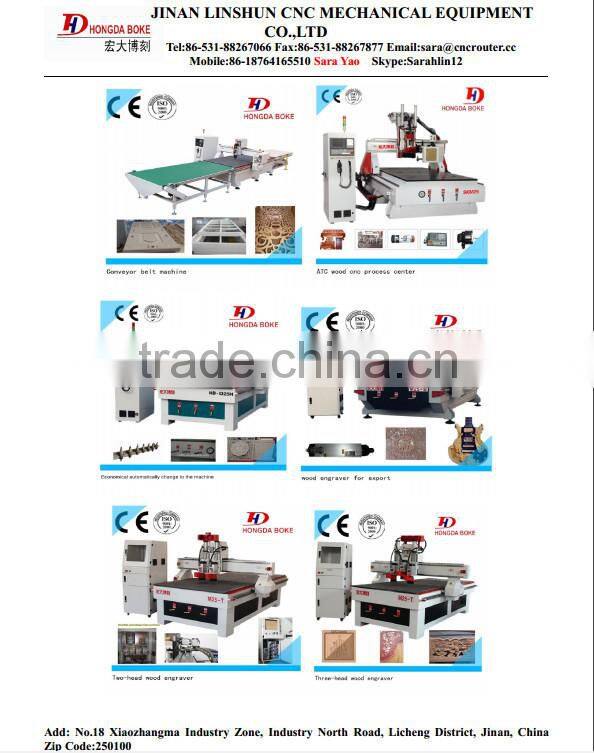

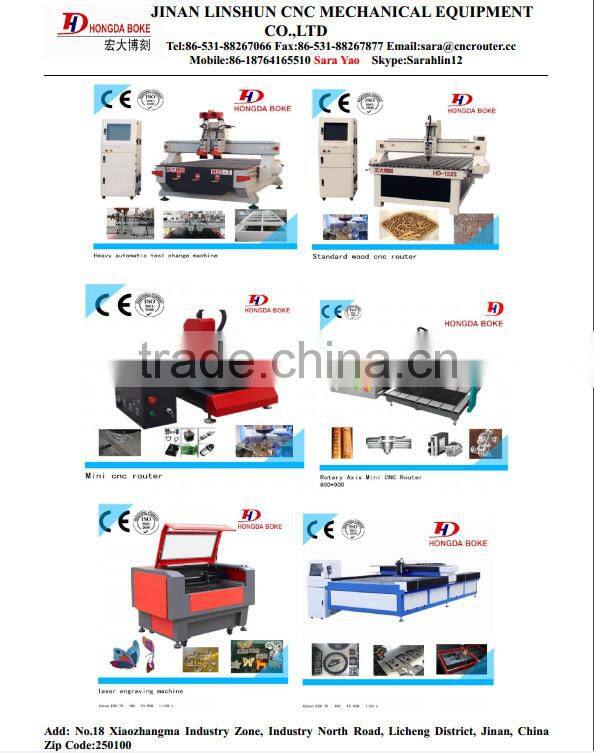

3.Our products include computer engraving ,cnc milling ,engraver,mould and so on; combination of intensity,speed and reliability as one .it formed our industrialization advantage of Hongda series CNC router
4.Our products are famous for its low price ,good quality and good after sales service.our market share have been expanding .we are still trying our best to produce innovative products and provide more better products to our customer

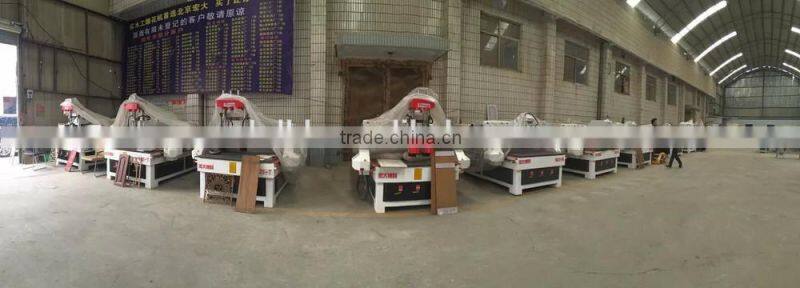

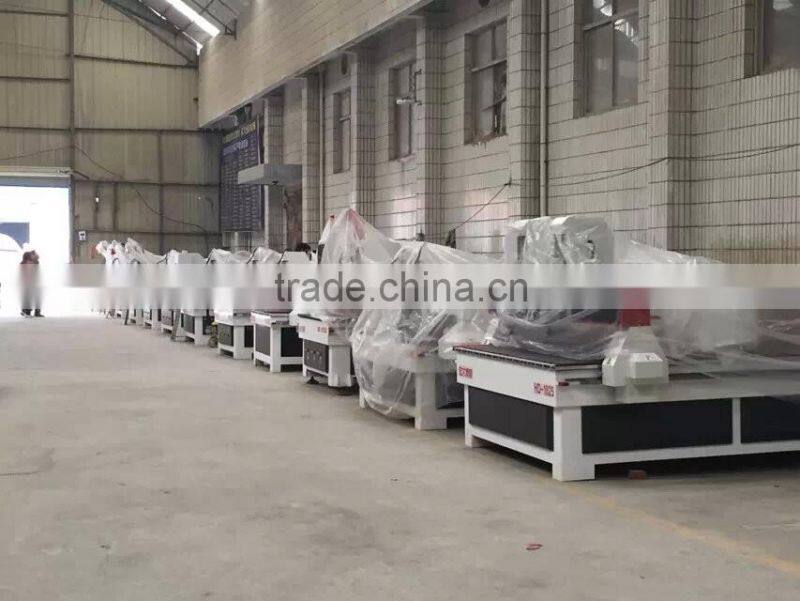

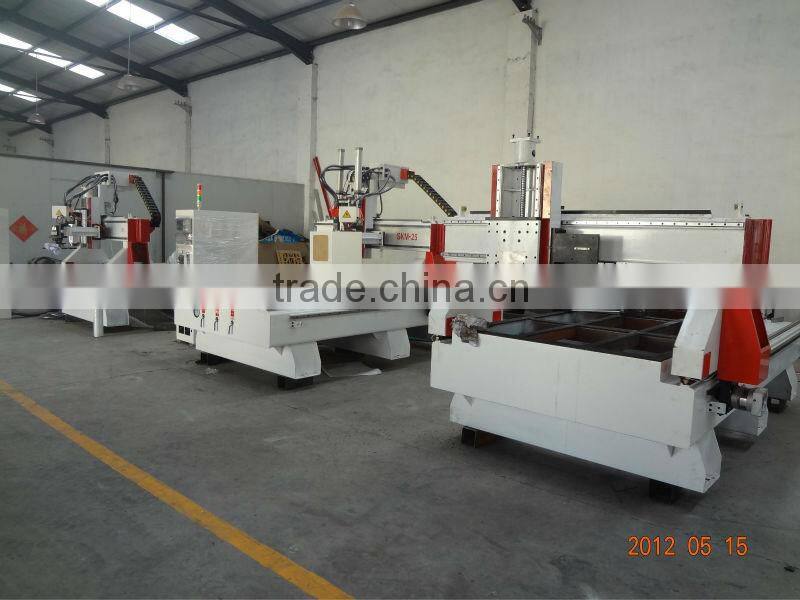

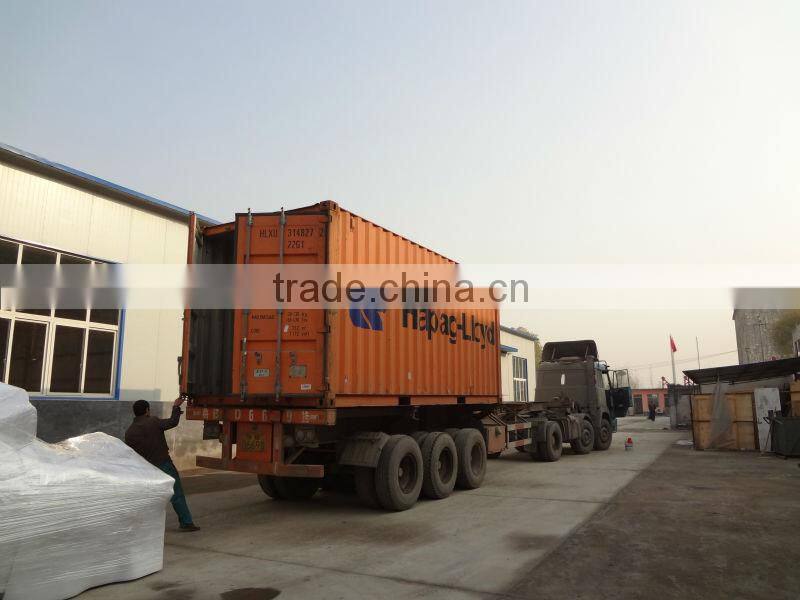

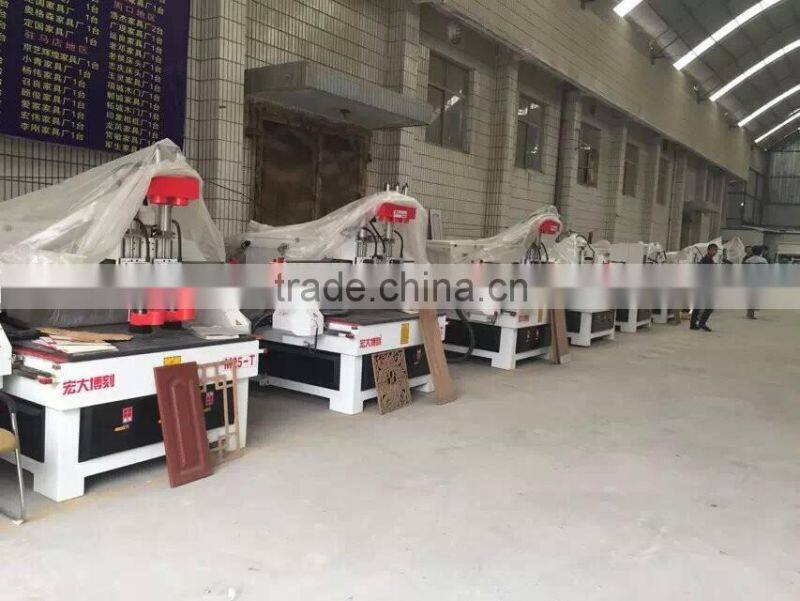

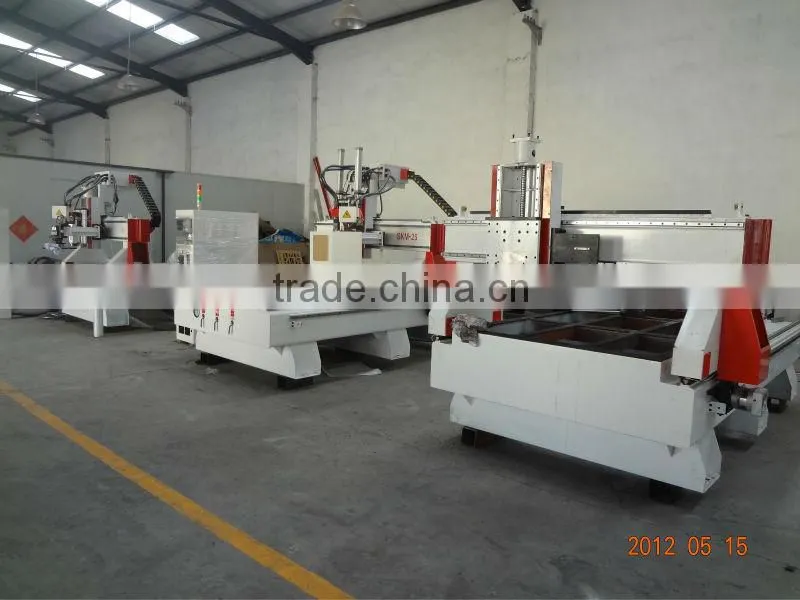

Four:Factory pictures

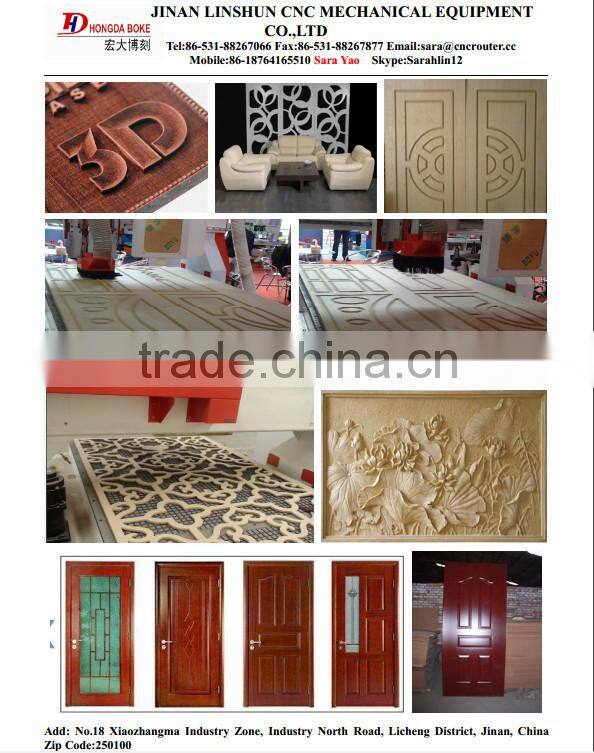

Five: Samples Show
* After the device reaches the user, Lin Shun CNC technology engineers will reach the customer site for installation on the same day, commissioning training.
*Before engineer arrived at the scene, please make sure the preparations were made.Such as unloading equipment, equipment field, power supply, computer, strip, voltage regulator, leakage protector, please users to cooperate actively.After the equipment debugging, please user acceptance.
*Pre-sale to customers training free of charge
*Trainees should have some relevant qualifications and knowledge, the supplier will be customers for programming, operator training, processing and routine maintenance. Trainees to be fixed, serious learning.
*Supplier engineers occasional visit clients. Machine operator talking with customers, product processing technology. The user can at any time in the form of telephone and e-mail, consulting Lin Shun any problems.
3.After-sale service
*One year warranty (except artificial damage and improper use)
*Free warranty for machine maintenance, the warranty period for equipment maintenance must be clearly marked.
*Guarantee to provide clients with two free maintenance.
*General maintenance work carried out on-site repair response time not exceeding 36 hours.
Good Products,Seeing Is Believing!!! More and More Customers&Agents Joined in Hongda Company,We Look Forward to Your Kindly Inquiry and Warmly Welcome You to Visit Our Factory.
Skype: Sarahlin12
