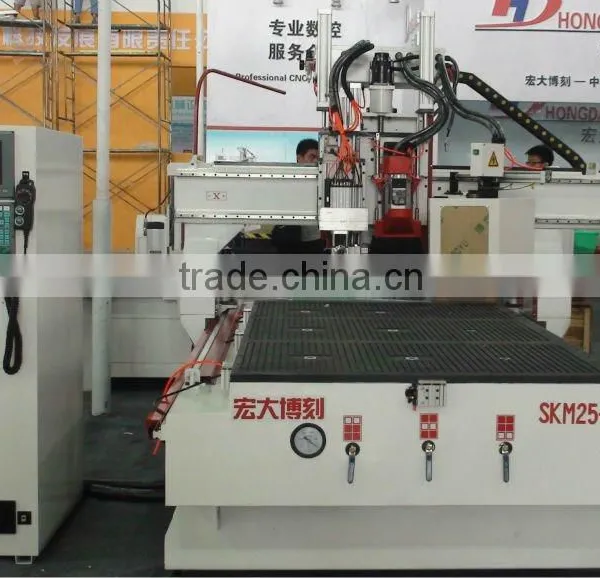

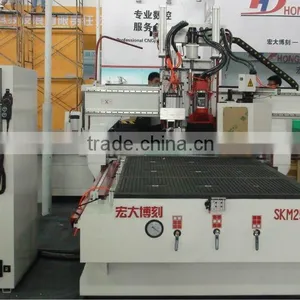

wood cnc drilling machine center HD-SKM25-Z
Features
This machine is suit for diverse complexity products processing, wide function; engraving and milling, drilling, cutting, side milling,chamfering and so on.
All mechanical, electrical components adopts international top brand products, such as Gremary vacuum system and drive system, servo drive system from Japan, Italy inported spindle.
Bam ATC system, tool changer capacity is 8 pieces, tool changing time just need 8 seconds.
Two-track and bilateral conveyor table, is heavy type cutting machine.
Applicable industry
Furniture: wood doors, cabinets, plate, office and wood furniure,tables, chair, doors and windows.
The wood products; voice box, game cabinets,computer tables, sewing machines tables,instruments
Plate processing;insulation part,plastic chemical components,PCB,inner body of bcar,bowling tracks,stairs, anti-Bate board,epoxy resin,ABS,PP,PE and other carbon mixed compounds
Decorate industry; Acrylic PVC,MDF, articial stone, organic glass,plastic and soft metals such as copper, aluminum plate engraving and milling process
Technical-parameters;
Stroke range |
X axis |
1300mm |
Y axis |
2500mm |
|
Zaxis |
300mm |
|
table structure |
Vacuum suction |
|
Idle speed |
>60000mm/min |
|
Working speed |
>25000mm/min |
|
Spindle rate |
9.0kw |
|
Spindle speed |
0-24000rpm/min |
|
Motor type |
Servo |
|
Command code |
G code |
|
Working voltage |
AC380V/50Hz |
|
Operating |
SYNTEC |
|
Hongda Boke is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise carving machine as well as artistic carving. We have realized industrialization of the CNC technology .Our route series are sold in many of European and American countries which have established a leading position in the caring machine filed .Our product have coverd woodworking industry ,advertising decoration, marking label industry as well as crafts and gifts field. Our products include computer engraving ,CNC milling, engraver, mould and so on . combination of intensity, speed and reliability as one, it formed our industrialization advantage of Hongda series CNC router.
Warranty ;
1 One year warranty for cnc router machine and spindle.
Free offer you replacement if there is a failure in warranty period .
2 Professional technical person provide 24-hour service online
by MSN, Skype, Yahoo, G-mail and so on
3 You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
1)This is the first time i use this kind of machine,is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any questions,we will provide free professional guide for you until you could use machine well.
2)If machine have any problem after i ordered it,how could i do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
