Specifications
Square Rail Advertising CNC EngraverHigh speed
High precision
High quality
High power

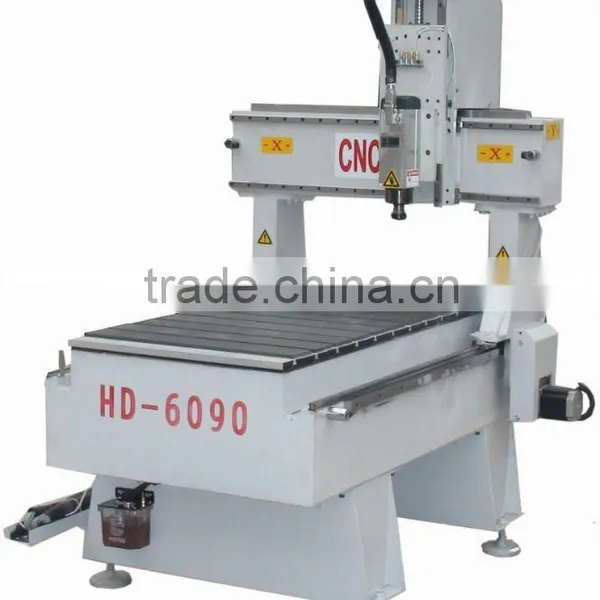

Square Rail Advertising CNC Engraver
A.High speed
B.High precision
C.High quality
D.High power
Square Rail Advertising CNC Engraver Features:
A.German automatic double-nut ball screws
B.Linear guide rail,the bearing of the lead guid rail is face to face.Is the linear guide surface contact,high-precision linear guide rail of CNC equipment manufactures use some of the ordinary life of the 2200-Advisory times,long-term use of high accuracy
C.High-speed driver,faster than the original model,up nearly two meters
D.X-axis adopt popular no dust structure,effectively guaranteed the long-term operating performance of the mech anical aspects
E.High-power frequency changing water cooled spindle can cut 20-30mm organic glasss at one cut,widly applies to adertising,mold,gifts,woodworking building model processing and production.
F. Break point and break knife continue engraving fuction supporting up to nine points and can engrave at any places as you like
G.The conpatibility is high;compatible Type3/artcarm/castmate/proe/Corelerow/Wentai,and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works
Square Rail Advertising CNC Engraver Technical Parameters:
1.X Y Z working area:600*900*100mm
2.Max travel speed:5.5m/min
3.Max engraving speed:3m/min
4.Max feeding heigh:100mm
5.Resolution ratio:0.005mm
6.Reposition accuracy:0.05mm
7.Main axle rotating speed:0-24000rpm/min
8.Word mode:Stepper
Square Rail Advertising CNC Engraver Configuration:
1.Whole Steel structure, imported square orbit, ball screw imported from German.
2.NC studio control system operate with computer. Wentai Software and Type3 Software, Artcam software.
3. 1.5Kw (imported bearing) water cooling spindle.
1.Imported high speed stepper motor, with dust cover,
In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting machines and so on.
we can make carving machines with all specifications to meet users.
SAMPLES:
