1218 Sign Making CNC Router

1218 Sign Making CNC Router photo-1
US$ 2,000 - 8,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongda Boke
Model Number:
HD-1218
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hongda Boke
Model Number HD-1218

Specifications

Sign Making CNC Router
1.Weihong control system
2. step motors
3.ballscrew
4.square orbit

1218 Sign Making CNC Router:



  • German automatic double-nut screws
  • Linear guide rail,the bearing of the lead guid rail is face to face.Is the linear guide surface contact,high-precision linear guide rail of CNC equipment manufactures use some of the ordinary life of the 2200-Advisory times,long-term use of high accuracy
  • High-speed driver,faster than the original model,up nearly two meters
  • X-axis adopt popular no dust structure,effectively guaranteed the long-term operating performance of the mech anical aspects
  • Break point and break knife continue engraving fuction supporting up to nine points and can engrave at any places as you like
  • The conpatibility is high;compatible Type3/artcarm/castmate/proe/Corelerow/Wentai,and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works
  • High-power frequency changing water cooled spindle can cut 20-30mm organic glasss at one cut,widly applies to adertising,mold,gifts,woodworking building model processing and production.

Technical Parameters for 1218 sign making cnc router:



-- X,Y working area                                    1200x1800mm
-- Z working area                                        >100mm
-- Table size                                                1340x2020mm
-- Max travel speed                                     5m-6m/min
-- Max engraving speed                             3m-3.5m/min
-- Resolution ratio                                       0.005mm
-- Reposition accuracy                               0.05mm
-- Max feeding height                                  110mm
-- Command                                                G code*. U00*. Mmg*. Plt
-- Surroundings for software                       Windows98/2000/xp
-- Power(not include the spindle)               400W
-- Working voltage                                       AC220V/50Hz
-- Spindle power rate                               1.5/2.2KW
-- Spindle rotating speed                            0-24000rpm/min

-- Drive motor                                             Steper

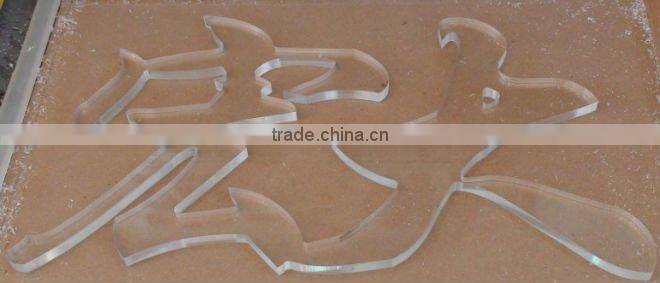

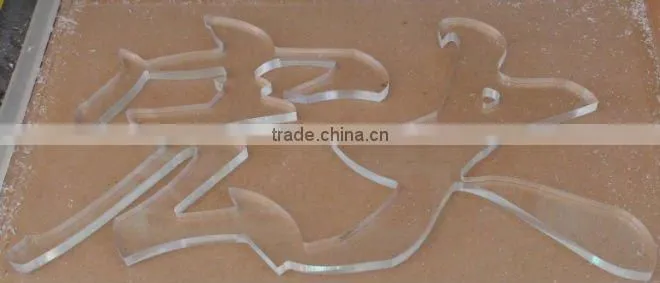

the working samples:

1218 Sign Making CNC Router1218 Sign Making CNC Router1218 Sign Making CNC Router



How to order?

1218 Sign Making CNC Router

cnc router Factory picture:

1218 Sign Making CNC Router

2012 Shanghai Fair

1218 Sign Making CNC Router



How to contact with us?

1218 Sign Making CNC Router
