Advertisment Cnc Router 1212

Specifications

cnc router:
1.with three spindle heads
2.Leadshine MD2278 high speed driver
3.1.5kw water cooling spindle
4.round rail

Advertisment cnc router 1212 :



• Cast aluminium structure
• linear orbits
• ballscrew
• Wei Hong control system
• Wentai Software
• 1.5Kw water cooling  spindle
• 20 cutters (φ3.175,  φ4,  φ6),  3 collet
• step motors
• work holding: by suction



Equipment Features:

• German automatic double-nut screws
• Linear guide rail,the bearing of the lead guid rail is face to face.Is the linear guide surface contact,high-precision linear guide rail of CNC equipment manufactures use some of the ordinary life of the 2200-Advisory times,long-term use of high accuracy
• High-speed driver,faster than the original model,up nearly two meters
• X-axis adopt popular no dust structure,effectively guaranteed the long-term operating performance of the mech anical aspects
• Break point and break knife continue engraving fuction supporting up to nine points and can engrave at any places as you like
• The conpatibility is high;compatible Type3/artcarm/castmate/proe/Corelerow/Wentai,and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works
• High-power frequency changing water cooled spindle can cut 20-30mm organic glasss at one cut,widly applies to adertising,mold,gifts,woodworking building model processing and production.

Technical Parameters:



Model	HD-1212
XY working area	1200x1200mm
Z working area	>100mm
Table size	1340x1420mm
Max travel speed	4m-5m/min
Max engraving speed	2m-3m/min
Resolution ratio	0.005mm
Reposition accuracy	0.05mm
Max feeding height	110mm
Command	G code*.u00*.mmg*.plt
Surroundings for software	Windows98/2000/xp
Power(not include the spindle)	400W
Working voltage	AC220V/50Hz
spindle power rate	1.5/2.2KW
spindle rotating speed	0-24000rpm/min
Drive motor	Stepper

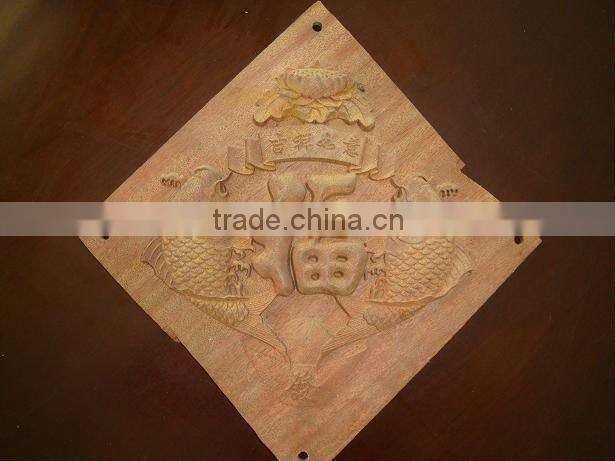

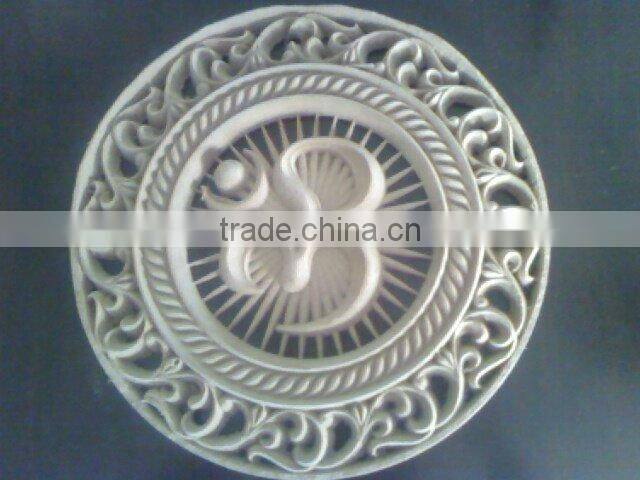

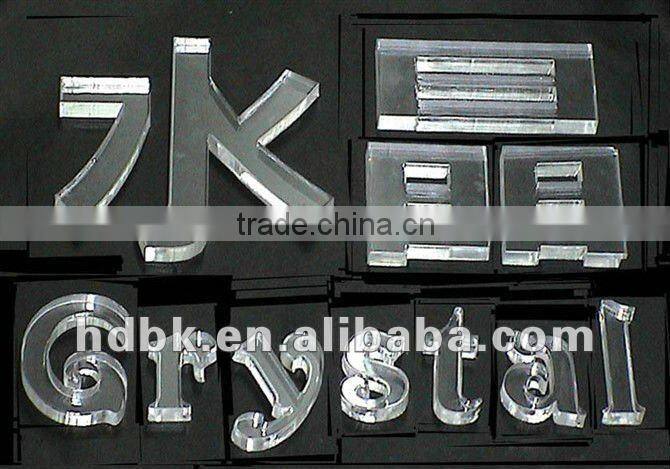

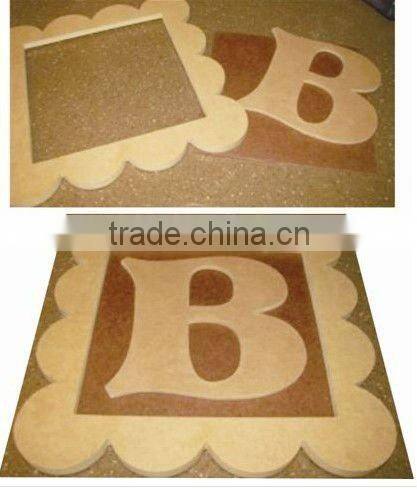

the working samples:



Our services:



 1.The processing demo video and E-catalogue will be mailed  as your request.



 2.One year free warranty under normal using.



 3.Free training to guarrantee you can operate machine correctly.



In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting  machines and so on.



we can make carving machines with all specifications to meet user's requirements.
