Help CenterSingle-Gantry CNC Router for Furniture Making
Related Products
Specifications
Single-Gantry CNC Router for Furniture Making:1.Syntec control system
2.9kw air cooling spindle
3.ATC system
4.Eston servo
Single-Gantry CNC Router for Furniture Making:
Standard Features:
Working area: 1300 x 2500 x 200mm
Maximum engraving speed: 6000mm/minimum
Frame: seamless welded steel structure
Spindle power motor: 9.0kW HSD air cooling spindle
Maximum power consumption: (without spindle) 5.0kW
Spindle speed: 6,000 to 24,000rpm
The number of knife: 4/6/8/10 pieces as user needs
The manner to change the knife circular disk
Resolution: 0.005mm
Repeatability: 0.01mm
Working voltage: 380V AC/50/60Hz, 3PH
Drive motors: servo motors and drivers
Working dictate: HPGL G code
Operating system: Syntec control system
Flash memory: 128MB (U-disk)
Software compatibility: type3, Ucancam Artcam Software
Running environment:
Temperature: 0 to 45°C
Relative humidity: 30 to 75%
Single -Gantry CNC Router for Furniture Making Applications:
It is widely used for production of cabinet door, solid wooden door, computer desk,
assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting, 3D embossment and so on.

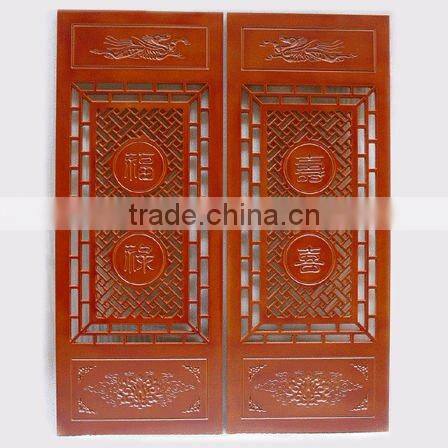

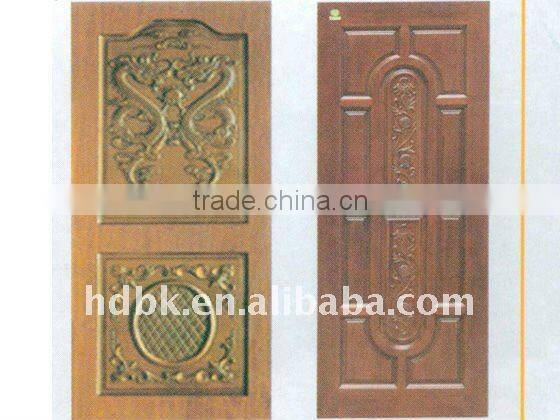

Samples:
