Promotion price food grade Pvc spiral steel wire reinforced hose/suction hose tube :
Good adaptability to hard weather condition, it won’t get softer when in summer and harder when in winter.
Temperature range: --5~65℃(23~149℉).
PVC steel wire hose is widely used for pumping and conveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines. The hose used for foodstuffs is made of high quality PVC material conforming to FDA standard. PVC steel wire hose is non-toxic, light, without odor and transparent. It can be used for conveying milk, beverage, distilled liquor, beer, jam, and other foods.
Packing: wrapped by straps and plastic woven bags.
Inch Size |
I.D. |
O.D. |
Thickness |
W.P. |
B.P. |
Length |
Weight |
Volume |
inch |
mm |
mm |
mm |
Mpa |
Mpa |
m/roll |
kg/m |
m³/roll |
1/2 " |
12 |
18 |
3.0 |
-0.1-1.0 |
3.0 |
100 |
0.220 |
0.049 |
5/8 " |
16 |
20 |
2.0 |
-0.1-0.8 |
2.0 |
100 |
0.180 |
0.061 |
3/4 " |
19 |
26 |
3.5 |
-0.1-1.0 |
3.0 |
50 |
0.390 |
0.052 |
7/8 " |
22 |
27 |
2.5 |
-0.1-0.8 |
2.0 |
50 |
0.300 |
0.058 |
1" |
25 |
33 |
4.0 |
-0.1-1.0 |
2.5 |
50 |
0.540 |
0.080 |
1" |
25 |
32 |
3.5 |
-0.1-0.7 |
2.0 |
50 |
0.500 |
0.078 |
1-1/4" |
32 |
41 |
4.5 |
-0.1-0.6 |
2.0 |
50 |
0.810 |
0.153 |
1-1/2" |
38 |
45 |
3.5 |
-0.1-0.5 |
1.6 |
50 |
0.700 |
0.173 |
1-3/4" |
45 |
53 |
4.0 |
-0.1-0.5 |
1.6 |
50 |
1.000 |
0.229 |
1-7/8" |
48 |
56 |
4.0 |
-0.1-0.5 |
1.5 |
50 |
1.200 |
0.262 |
2" |
50 |
57 |
3.5 |
-0.1-0.5 |
1.4 |
50 |
1.000 |
0.268 |
2-5/16" |
58 |
70 |
6.0 |
-0.1-0.5 |
1.5 |
40 |
2.000 |
0.350 |
2-1/2" |
64 |
78 |
7.0 |
-0.1-0.5 |
1.4 |
30 |
2.580 |
0.410 |
3" |
75 |
87 |
6.0 |
-0.1-0.4 |
1.0 |
40 |
2.500 |
0.681 |
3" |
75 |
89 |
7.0 |
-0.1-0.4 |
1.0 |
40 |
3.000 |
0.715 |
3-1/2" |
90 |
108 |
9.0 |
-0.1-0.4 |
1.2 |
20 |
4.500 |
0.640 |
4" |
102 |
112 |
5.0 |
-0.1-0.3 |
1.0 |
30 |
3.000 |
0.667 |

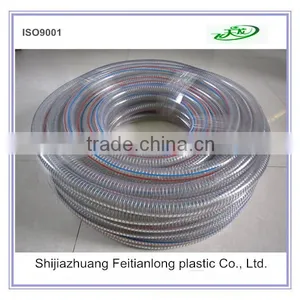

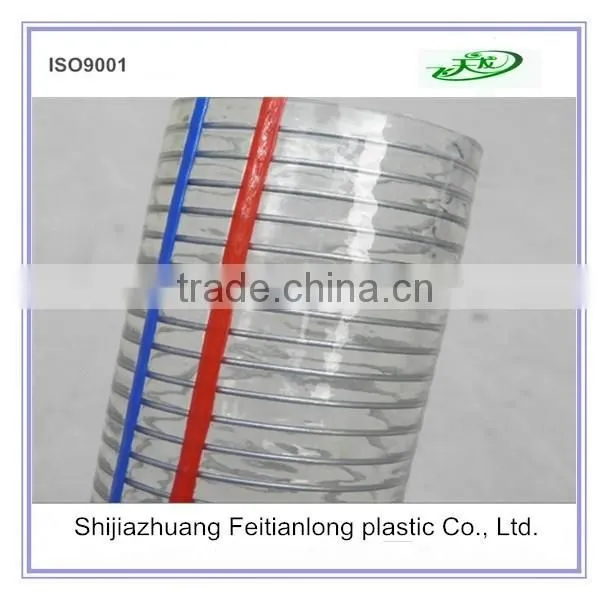

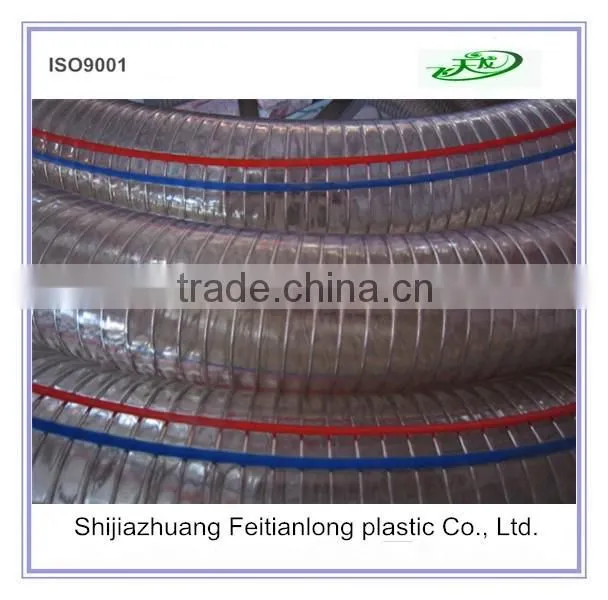

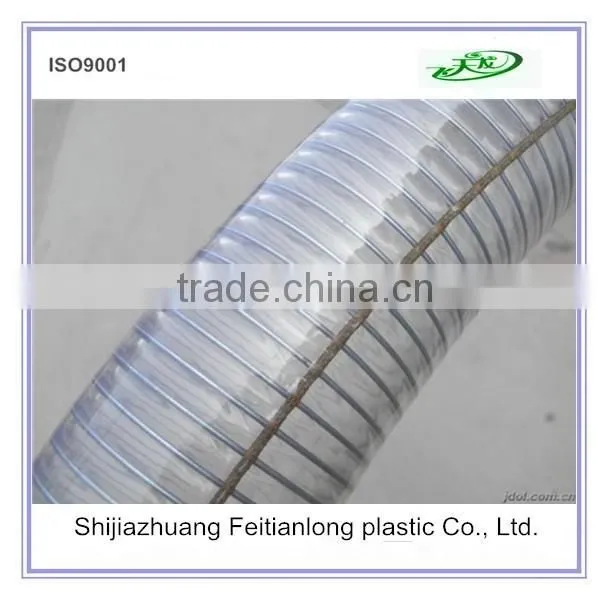

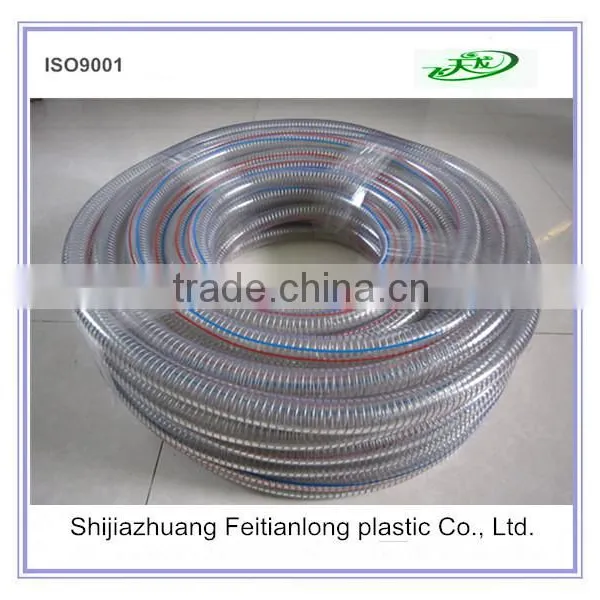

Promotion price food grade Pvc spiral steel wire reinforced hose/suction hose tube picture:

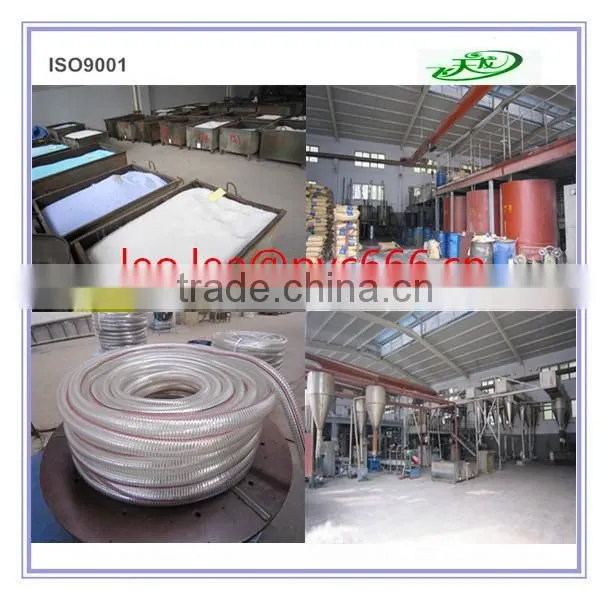

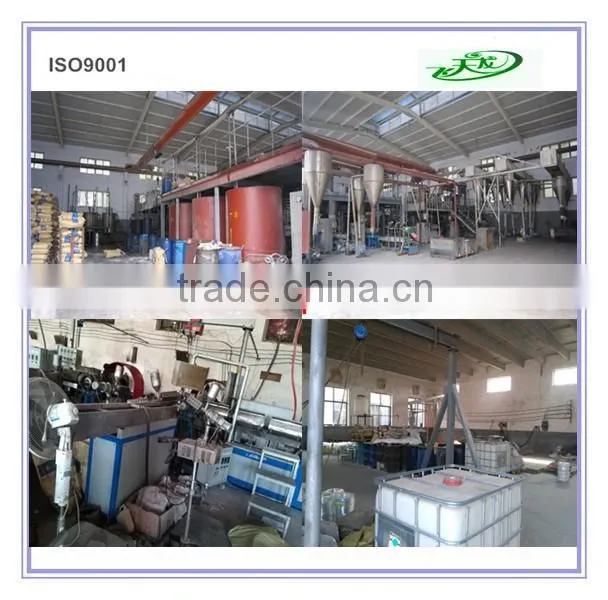

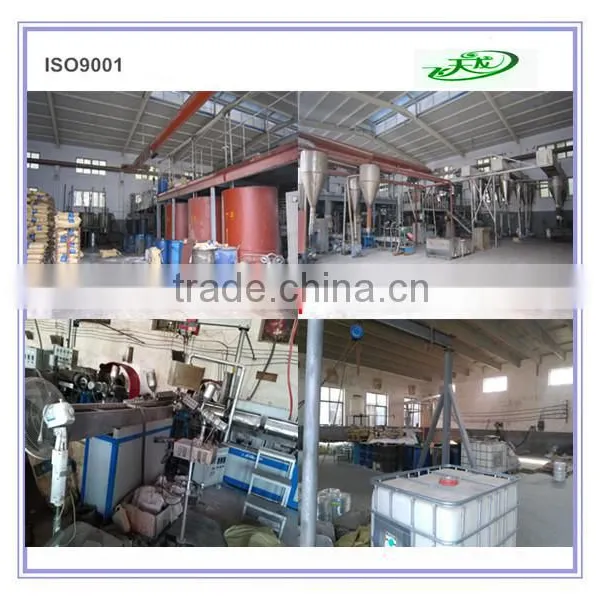

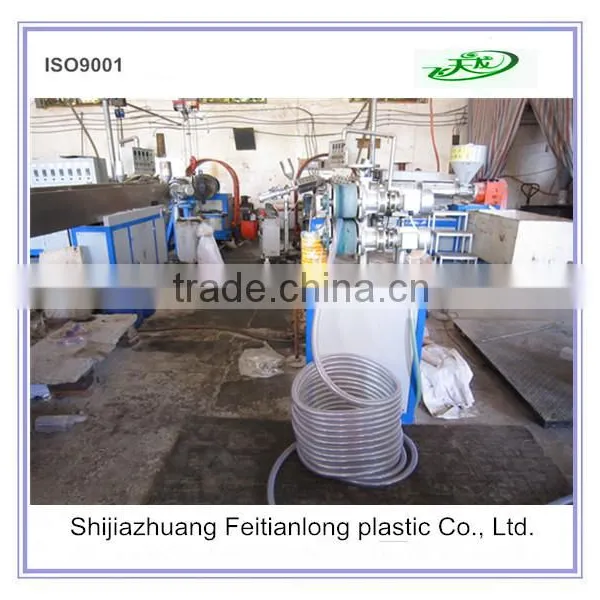

Advanced production line is able to produce good quality products for you.
The best raw material is friendly relation ship with envuironment.
The quality control is strictly meet ISO quality standard and your requirement.
Packing goods with plastick film according to sea shipment standard;
Or packing goods as per your requirement.
Shijiazhuang FEITIANLONG plastic Co., Ltd is a professional manufacturer of PVC hose pipe, single-layer transparent hose, plastic flex hose pipe,fiber reinforced high pressure flexible pipe, LPG pipe,PVC hose pipe with steel wire and so on. So far we have been in the line of manufacturing all kinds of PVC pipe for many years.Our product cover one hundred kind of specifications;We can customize all kinds of PVC hose pipe according to your requirement.
Our factory area is more than 6000 m2, having advance automatic production lines and good technical power. Annual production capacity is up to more than 5000 ton.
We set up a department of quality control for inspecting raw material and finished product; so the product quality is very well. All users accept and think our product very high.
CONTACT:
Leo.lee
Shijiazhuang FEITIANLONG plastic Co., Ltd
C-7, Shenghe Plaza, Qilian St.
Shijiazhuang, Hebei Prov. 050000. China
( : + (86)31189640559
: : +(86)31185252205
Mobile: +86 177 9691 3617
