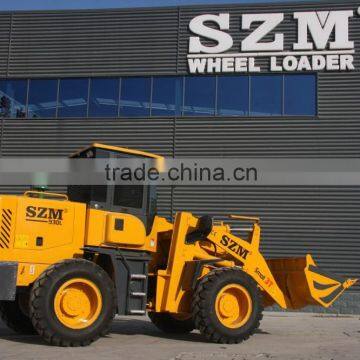

Chinese Fornt End 3t Wheel Loader With Pallet Fork ,wood Fork /CE EPA

US$ 11,000 - 11,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

SZM

Model Number:

930

Qingzhou Shanzhuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SZM

Model Number 930

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6500*2160*3050

Rated Load 2800kg

Certification CE ISO

Warranty 1 Year

After-sales Service Provided Overseas third-party support available

Performance and characteristic

New pioneer in wheel loader

1.Optional:Dongfeng Cummins, Weichai, Luotuo, Huafeng engine

2. High quality self-made hydraulic gearbox and driving axle.

3. Choose best hydraulic components, pilot operation, easy and durable.

4. Strong and durable frame, have the automatic flat function in high place.

5. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc

6. Luxurious cab, cab rollover, easy to keep and operate.

7. Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.

8. High pressure and safer air assist disc brake braking system.

9. According to clients request, customize higher dumping and longer arm products.

Model	930L
Bucket capacity	1.5m³
Rated load	2800 kg
Wheel base	2350mm
Wheel tread	2150mm
Min. ground clearance	380mm
Max. dumping height	3500 mm
Dump distance	1080mm
Total times	9s
Operation weight	7000kg
Engine model	WEICHAI HUAFENG4108 Turbo-charged
Rated power/ speed	83kw/2400 rpm
Tyre	16/70-24
