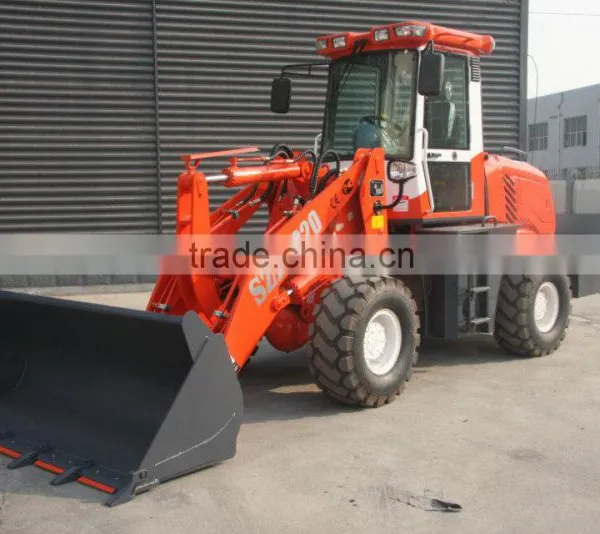

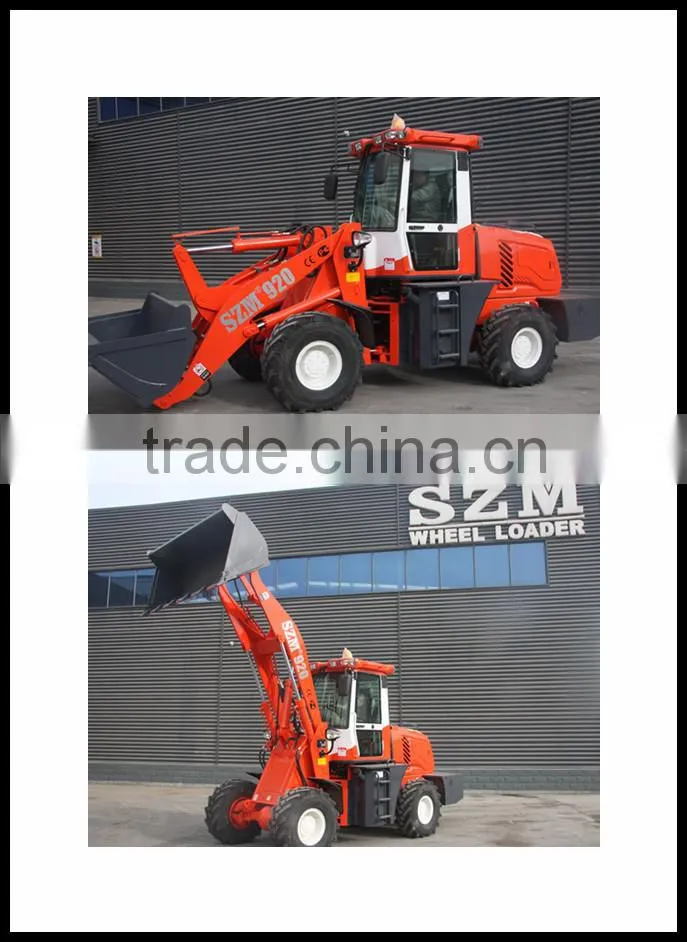

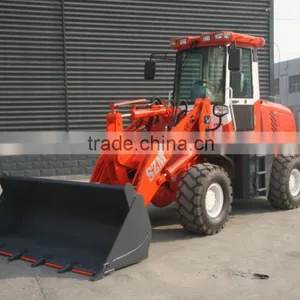

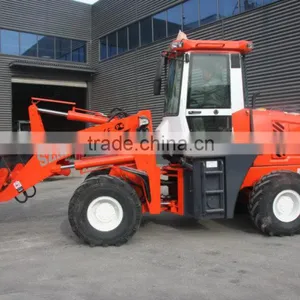

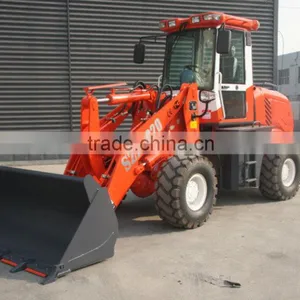

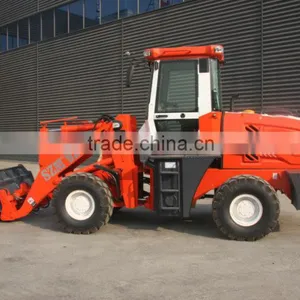

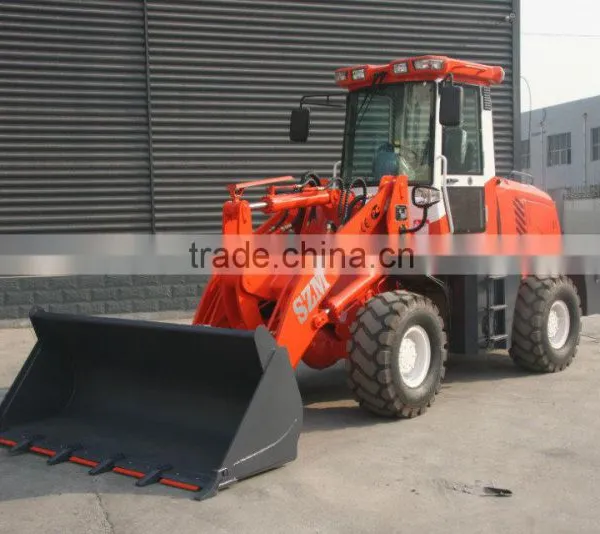

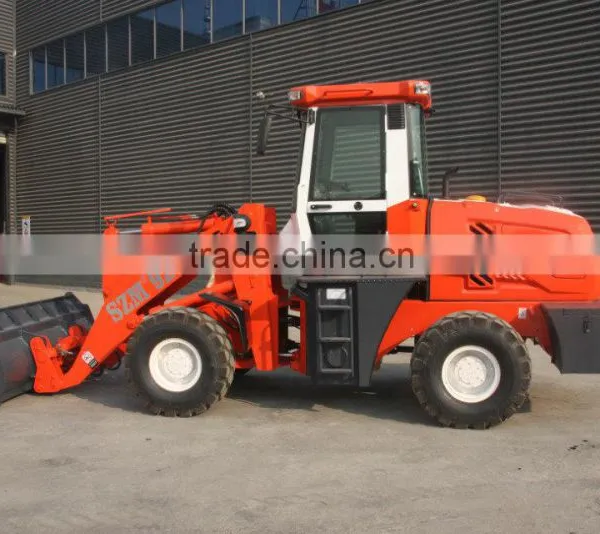

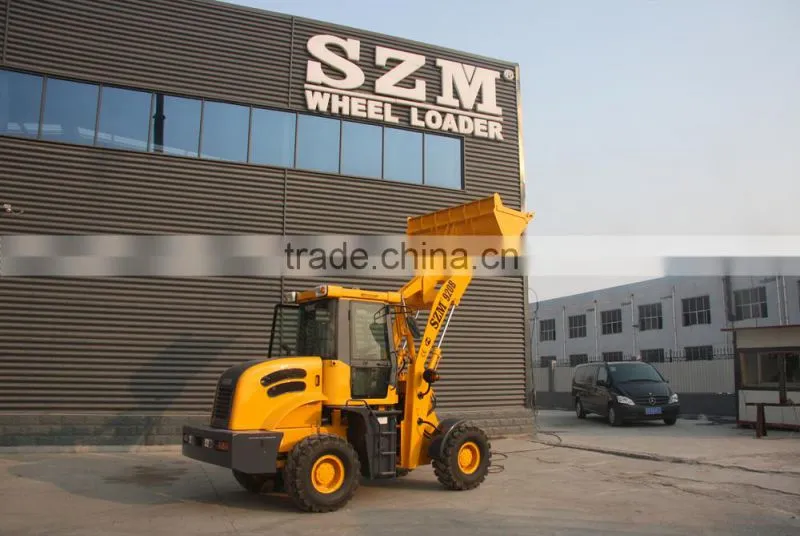

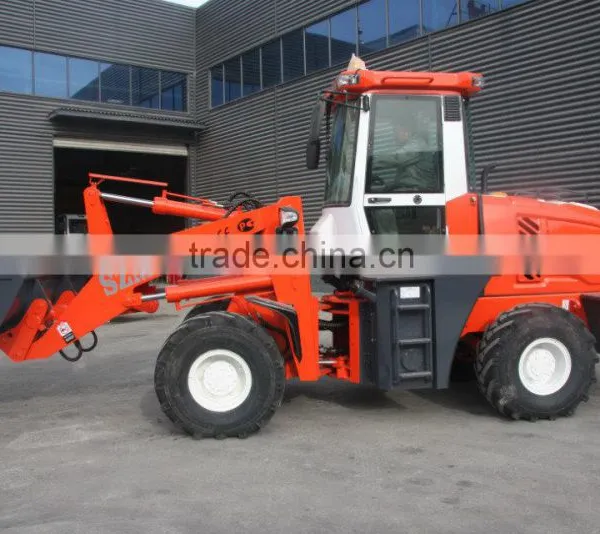

Help Center920 Wheel Loader in Automatic Transmission and Hydraulic Steering System
Related Products
-
CE 1.6Ton 916 Wheel Loader With 0.6m3 BucketNegotiableMOQ: 1 Set -
Brand 1.6 Tons Mini Wheel Loader With Sand SpreaderUS$ 1 - 7,300MOQ: 1 Set
-
Hot Sale Ming Machine Wheel Loader 920L With Pilot ControlUS$ 8,700 - 13,000MOQ: 1 Set
-
Ming Machine Wheel Loader 920L With Huafeng EngineUS$ 8,700 - 13,000MOQ: 1 Set
-
2015 New Product SZM Underground Mining Loader 910 With Pilot ControlUS$ 5,800 - 7,000MOQ: 1 Set
model |
ZL20 |
|
|
Specification
|
Bucket capacity |
1.1m3 |
Loading mass |
2000kg |
|
Operating weight |
5000kg |
|
The bucket automatically puts flat function |
Yes |
|
Max. Breakout Force |
70KN |
|
Total time |
11s |
|
Wheelbase |
2200mm |
|
Tread |
1400mm |
|
Dumping height |
3200mm |
|
Dumping Distance |
950mm |
|
Engine |
Cummins 4BT3.9-C80 |
|
Type |
Direct injection, horizontal, water-cooled, four-stroke, four-cylinder |
|
Rated power |
60KW |
|
Rated Revolution |
2200r/min |
|
Hydraulic System |
Distribution of work valve |
ZL20B |
Working pump |
CBGj1045,CBGq1018 |
|
Transmission System |
Model of torque converter |
YJ240 |
Transmission Type |
Automatic |
|
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Steering System |
Type |
Articulated hydraulic steering |
Max. turning angle |
35° |
|
Min turning radius |
5000mm |
|
Brake System |
Brake type |
Oil brake(Vacuum booster) |
Tires |
Standard tires |
20.5-16 |
Packing Details |
2 pcs/40’ CTN |
|
Delivery Time |
15 days upon the receipt of deposit |
|
Payment Terms |
T/T,30% DEPOSIT,THE BALANCE BEFORE SHIPMENT |
|
1.Equipped with Dongfeng Cummins ,Weichai,Luotuo,Huafeng engine

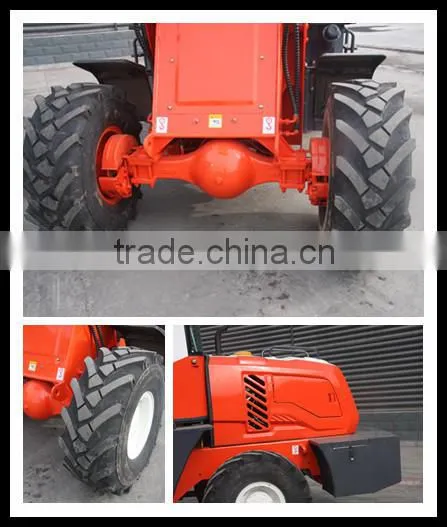

2. Strengthened and reliable transmission, drive axle
3. Optimized and choose the best quality Hydraulic component which increase the productivity ,sealing reliability
4. Articulated frame with box structure
5. Option attachment: wooden fork, pipe/pallet fork, grass fork, rock bucket, bigger bucket, long arm etc
