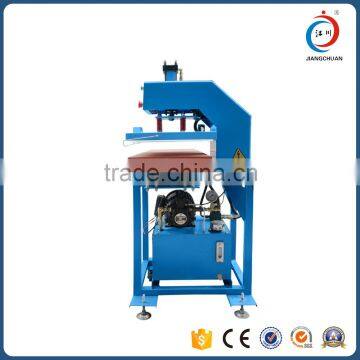

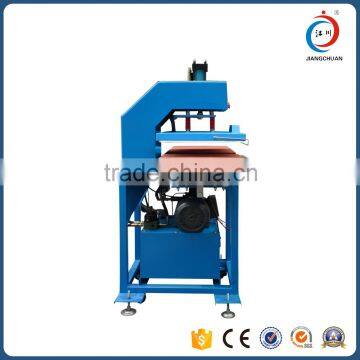

Factory supply 60*80cm automatic sublimation heat transfer machine
Kindly note that as a big factory in China with a strict quality control system,5 engineers and 15 years experience,we can promise you the quality and provide some professional guides to you if you need.
Specifications

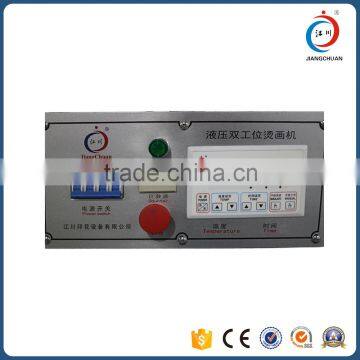

1. Digital display of temperature and time
2.220V/380V
3.With safety protecting device
Technical parameters
Printing area(CM2) |
40X40 |
40X50 |
40X60 |
50X70 |
60X80 |
Packing Dimensions (CM3) |
84*75*158 |
85*75*161 |
87*75*167 |
165*85*95 |
175*90*100 |
Weight(KG) |
150 |
170 |
200 |
250 |
290 |
Temperature range(°C) |
0-399℃ |
||||
Time control(S) |
0-999sec. |
||||
Voltage(V) |
220/380V |
||||
Power(KW) |
2.2 |
2.5 |
3.0 |
6.2 |
7.5 |
Features
1. Machine with safety protecting device and easy operation performance, it is safe and rational.
2. Adopt an integrated circuit board, electromagnetic switch ,on-off timer, it is stable , visual and highly accurate.
3. The process is controlled by digital, and uses signal indication and the thermal energy distribute averagely.
4. Hydraulic system makes noise smaller, pressure bigger even can reach 30kg/cm2 energy saved. So it is excellent for applying transfer to all type materials.
5. Adjust the temperature and the timer according to the thickness of the materials. For example, heat sublimation canvas bag need higher temperature(about 230℃) and longer time(about 23sec.)
Process of heat transfer
First,design the logo or picture you like.Second,connect the inkjet printer to the computer to print the designed on the sublimation paper.Third,set the temperature and time of the heat press machine.For example,for sublimating a t-shirt,set the time by 20 seconds,set the temperature by 200 ℃.When time is up,just remove the paper away from the T-shirt.
Finished products

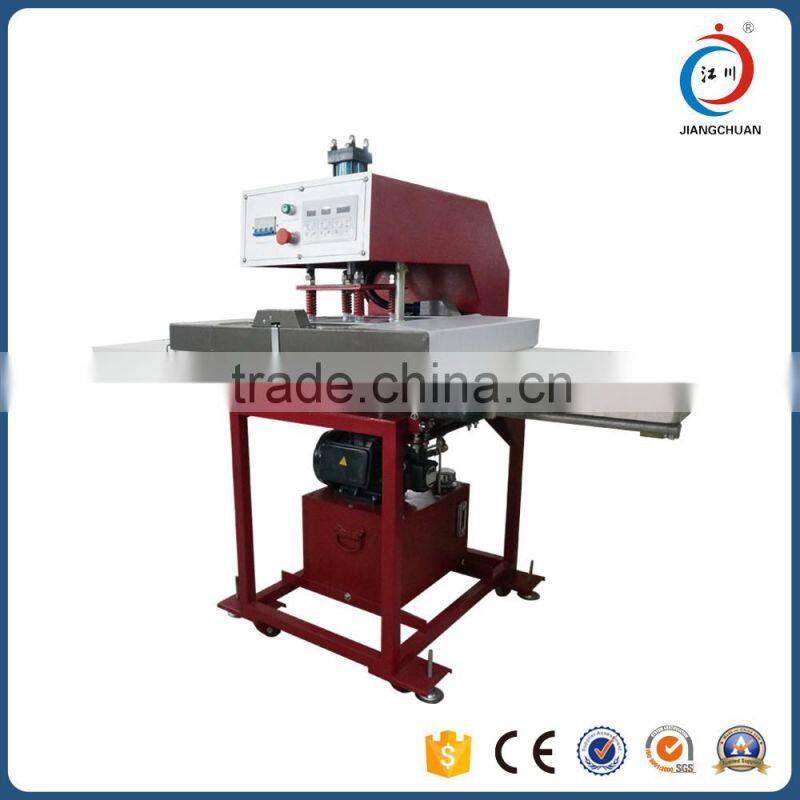

Hydraulic double position jersey heat press machine
Packing
Usually the small heat presses excluding the pneumatic heat presses will be packaged by carton cases.The large heat presses and printers will be packaged by wooden cases.
Delivery the machine by Train/Sea way/Air/international express
We will recommend the cheaper and more economic way for you.You can also advise us your need.
Hydraulic double position jersey heat press machine
1. Comprehensive service
BEFORE: We would like to recommend the machine to you according to the function you need.
AT: Find out the most cost-saving and convenient shipping way for you.
AFTER: 1) With 15 years experience, we can provide some professional guides to you if you need.
2) The technical support on line in time can be provided with the help of our 5 engineers and several electricians.
3) Engineer available to service machinery overseas.
4) You can dispatch your workers to our factory and our engineers will train them for you.
2. Quality is our culture.
1) As a big factory in China with a strict quality control system, we can assure you of the quality.We only offer high quality products.
2) We are certified to CE.
3. Competitive price
We think our machines will give you an edge over your competitors.
4. Safety
With us your business will be in safe, your money will be in safe.
Factory supply 60*80cm automatic sublimation heat transfer machine
With 15-year experience, Guangzhou Jiangchuan Printing Equipment Co., Ltd is one of the most professional manufacturers in heat press machine, heat transfer machine, and sublimation equipment and so on.
Jiangchuan always devotes to enhance the function of their machine, depends on customers’ feedback and market requirement .At the beginning of 2001 , Jiangchuan started to produce flat heat press ; since 2005 developed first roller heat press machine; since 2012 ,Jiangchuan developed 3d heat press machine; since 2016 , Jiangchuan also promotes their newest roller heat press machine model.
Jiangchuan is also a biggest manufacturer in China, which is located in Guangzhou city with 30,000 square meters. Jiangchuan has 5 engineers ,120 workers , six production lines ,two sales teams , which supply professional service for domestic market and overseas market ,such as Europe, America, Southeast Asia, The Middle East ,Africa, etc.
Welcome to visit Jiangchuan at anytime.
Factory supply 60*80cm automatic sublimation heat transfer machine
Factory supply 60*80cm automatic sublimation heat transfer machine
Contact us or send me an inquiry now,we will get back to you soon.
It would be better if you could tell us what your real need to recommend the most suitable machine for you.
Factory supply 60*80cm automatic sublimation heat transfer machine Factory supply 60*80cm automatic sublimation heat transfer machine Factory supply 60*80cm automatic sublimation heat transfer machine
