DCY 125T Shipyard Transporter Wind Turbine Generator Trailer

DCY 125T Shipyard Transporter Wind Turbine Generator Trailer thumbnail-1
DCY 125T Shipyard Transporter Wind Turbine Generator Trailer thumbnail-2
DCY 125T Shipyard Transporter Wind Turbine Generator Trailer thumbnail-3

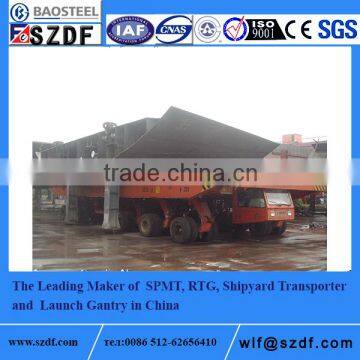

DCY 125T Shipyard Transporter Wind Turbine Generator Trailer photo-1
DCY 125T Shipyard Transporter Wind Turbine Generator Trailer photo-2
DCY 125T Shipyard Transporter Wind Turbine Generator Trailer photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SZDF
Model Number:
DCY125
Contact Supplier Request Quote Chat Now
Suzhou Dafang Special Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name SZDF
Model Number DCY125
Product Description

  DCY 50T Shipyard Transporter  Self propelled

DCY 50T Shipyard Transporter  Self propelled



DCY Series Self-Propelled Platform Hydraulic Transporter, a "Mechanical-Electronic-
Hydraulic" systemic high-tech product, was started to be researched and developed independently by Dafang in 1999, which is a product that Dafang has its own intellectual property rights and the product has been given a Utility Model Patent of China:Variable-amplitude self-propelled platform hydraulic transporter, Double-Circuit Safety Valve etc.The transporter is of hydraulic driving,hydraulic suspension,independent steering,hydraulic horizontal regulation of the frame and CAN-BUS micro-electronic control. After 8 years' constant development and improvement, Dafang transporter has been updated to the fourth generation and its performance has reached international advanced level.It has been greatly improved from the design concept to the manufacturing & assembling technology and test & experiment.

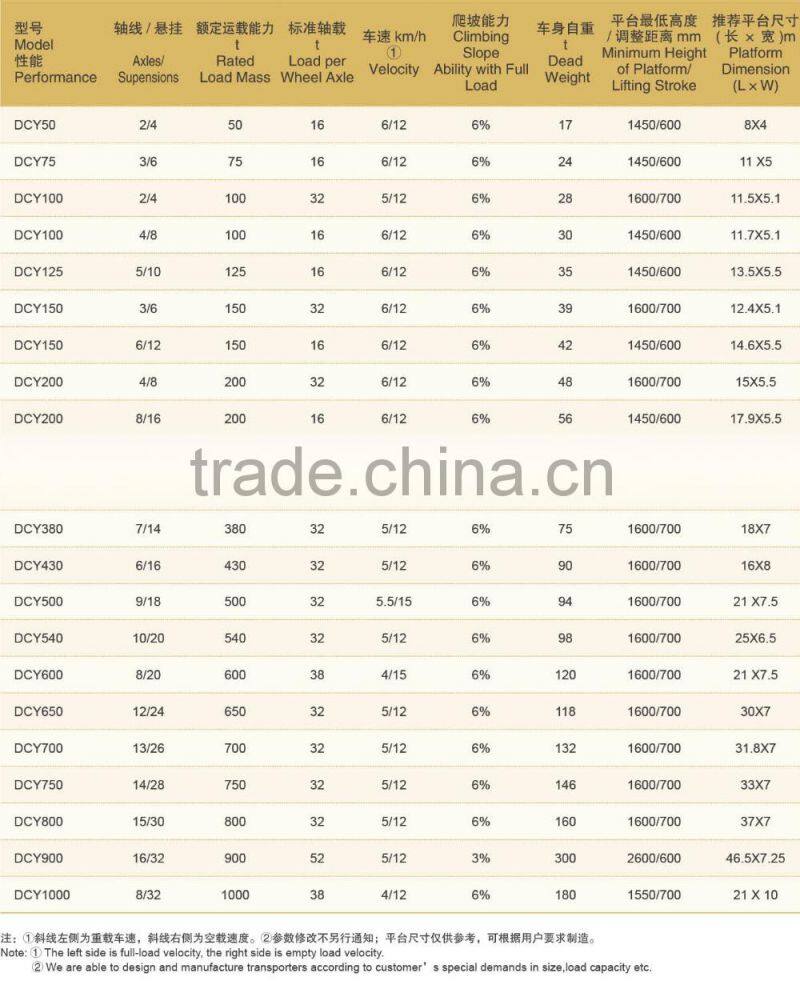

Rated load mass:125000kg

Dead mass:35000kg

Total mass:160000kg

Velocity:

No load,flat road 12km/h

Full load,flat road 6km/h

Climbing slope ability with full load

Slope in the length direction 6%

Slope in the width direction 2%

Lifting stroke of platform:600mm

Platform dimension:13000mm(Length) 5100mm(Width)

Steering mode:Straight driving,Sideways driving,Transverse driving,Center steering,8-type steering,Swing steering

User:

1,HongKong Zhenhua Engineering Co. Ltd.

2,ZheJiang Province Yangfan Shipyard Group Ltd

3,JingJiang Sumeida Shipyard Engineering Co., Ltd

4,ZhengJiang Shipyard


DCY 125T Shipyard Transporter wind turbine generator trailer






Contact Us

 DCY 125T Shipyard Transporter wind turbine generator trailer






Tel: +86-512-62656410
Web:
Add:No.71 Xuyang Road, Xuguan Industrial Park, New High-Tech District, Suzhou, China
Feel Free to Contact us!

Company Information

 DCY 125T Shipyard Transporter wind turbine generator trailer

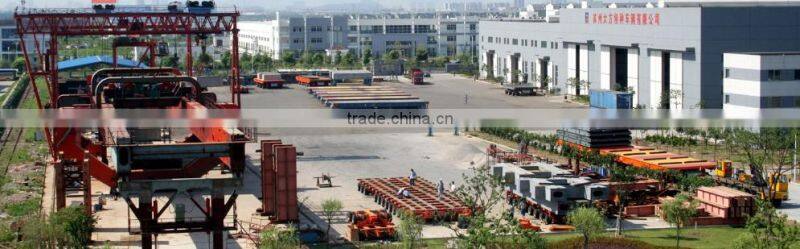

Suzhou Dafang Special Vehicle Co.,Ltd, a subsidiary of Baosteel Engineering Technology Group Co., Ltd, located in Suzhou Xuguan Industrial Park, with registered capital RMB$111,000,000, is a high-tech enterprise, mainly engaging in the fields of research, design and manufacture special purpose engineering vehicles and equipment with its own intellectual property right. Suzhou Dafang possesses more than 35,000 sq.m. production plant, 26,000 sq.m assembly and testing ground, 15,000 sq.m. office & research building, with over 120 engineering technicians, among which are 28 senior technicians, and 59 intermediate technicians.

Ever since its establishment, Suzhou Dafang has taken advantages of advanced enterprise management and flexible operational mechanism, with people-oriented value, absorbed lots of professional talents in the fields on mechanism, hydraulic, electric, auto-control, micro-electronic control, bridge engineering and etc. Suzhou Dafang has built good cooperative relationship with SJTU (Shanghai Jiao Tong University) and Tianjin University, in the R&D of technology and competitive R&D team has become technology partners, which has successfully completed the designing & manufacturing of special vehicles and equipments involved in highway, express railway, water diversion project, magnetically levitated train project, tunnel project, shipyard, port construction etc. Suzhou Dafang possesses self- intellectual property rights, and has acquired many national patents. Many research fruits have filled up the vacancy in China, the commercialization rate of research findings is up to 80%, and the quality of our products, which are highly praised by experts and customers, have reached Province-ranked Excellence and Nation-ranked Excellence.

Suzhou Dafang will, as always, adhere to the operation goal of Honest Business, Best Quality, Best Reputation and Best Service, and provide high quality products and perfect service.

Designing method: Adopt international advanced three-dimensional virtual design, to complete virtual simulation running test.

Production organization method: Possess own processing, testing and assembly base for key technology, mechanism and mechanical manufacturing of social production factors and large & medium-sized enterprises. Proceed with scale, standardization production, to realize the product industrialization.

Assembly ability: Possess over 35000m high level general assembly workshop, providing excellent basis for production, assembly and testing of equipment. Meanwhile, there's a technician team with high technical standards and ideological standards. Strict processing, assembly and testing technics is made to guarantee assembling quality of the products.

Quality control system: During research process, strictly comply with ISO Quality Assurance System to control quality, including design control, production processing control (includes evaluation & quality control of outsourcing and sub-contractor), sale& service control. A quality control group was set up for special construction and mechanism, meanwhile special technics and technics evaluation standards are made to guarantee final assembly quality of the products.
