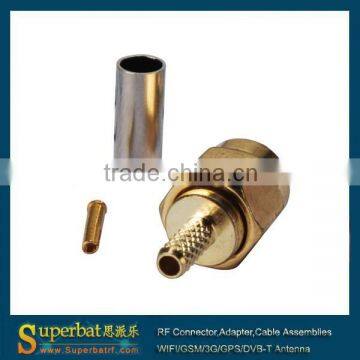

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100

Name: RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100
Brand: superbatrf
SKU: 121511033
Availability: InStock

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100 thumbnail-1

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100 thumbnail-2

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100 thumbnail-3

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100 photo-1

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100 photo-2

RF Connector RP-SMA Crimp Plug(female Pin) Connector Sma Crimp Connector RG316 RG174 LMR100 photo-3

US$ 0.73 - 0.89 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

superbatrf

Model Number:

S02-SP316-11BS00

Contact Supplier Request Quote Chat Now

Shenzhen Superbat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name superbatrf

Model Number S02-SP316-11BS00

Type SMA

Application RF

Gender Other, Female, Plug(female pin)

RP-SMA Male with socket pin RF connector for coax cable RG316/U connector

Model: S02-SP316-11BS00

Product Series:	SMA
Product Type:	Cable mount
Application:	Crimp
Attachment/Affixment:
Body Plating:	Goldplated
Body Termination:	Crimp
Cable Type:	RG174,RG-188A,RG316, LMR100
Connector Body Style:	Straight
Connector Material:	Brass
Contact Plating:	Gold
Contact Termination:	Solder
Gender:	Plug(female pin)
Impedance:	50 Ohm

Specifications

Temperature range :	-55 - +155°C
Vibration :	98m/s2 (10 - 2000Hz)10g
Frequency range :	DC -12.4GHz(Semi-Rigled Cable DC-18GHz)
Working voltage :	335V r.m.s
Contact resistance :	a) Center contact: ≤3mΩ
	b) Outer contact: ≤2.5mΩ
Insulation resistance :	≥5,000mΩ
VSWR :	a) ST: ≤1.10+0.02f;≤1.07+0.018f
	b) RA: ≤ 1.20+0.03f; ≤ 1.17+0.02f
Durability (mating) :	≥500 times
Applicable Standards :	a) IEC 60169-15 ; b) MIL-C-39012 ; c) CECC 22110
Insulator:	PTFE (Teflon)
Impedance:	50 Ohm

Other sma connector series we have

SMA Cable mount:

SMA PCB:

PAYMENT WAY
We accept T/T, Western Union, Escrow and Paypal.

SHIPPING

1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
5. Sample is available.

WARRANTY
1. We can guarantee the product quality within 1 year.
2. If products cannot work,refund or exchange is available.
We provide comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.

ABOUT US

We specialises in the sale of RF coaxial connectors,adapters,RF cable assemblies,3G/GSM/WIFI/GPS antennas etc, and especially provides custom services for these products. we own the "Xtar" and "superbat" trademark.

We own a mature and professional Sales Team and Technical Team,and set up a good and long-term relationship with over 50 domestic manufactures of coaxial connector and antenna.We have served for over 86000 customers from more than 120 countries on ebay, alibaba and our online shop.We have achieved great admiration and we are widely trusted at home and abroad.

Our mission is: Provide an Internet-based integrated supply chain for small and medium-sized users and retailers of RF and microwave components in the world.
