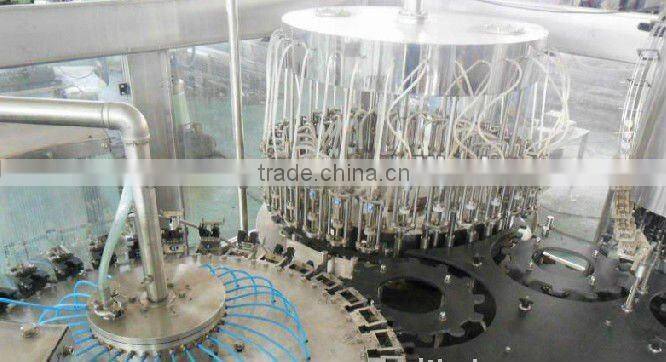

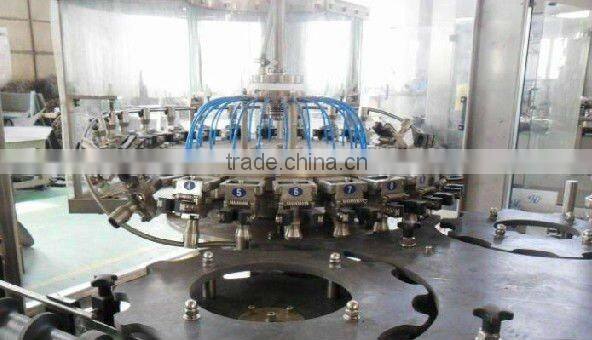

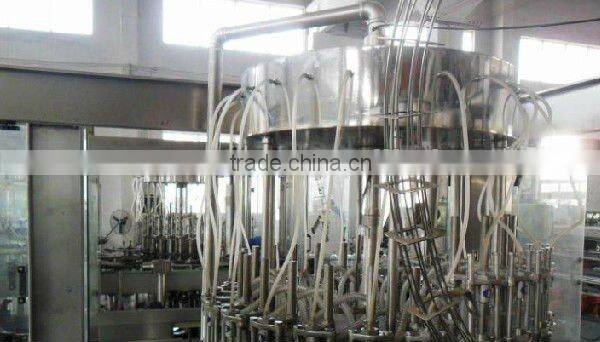

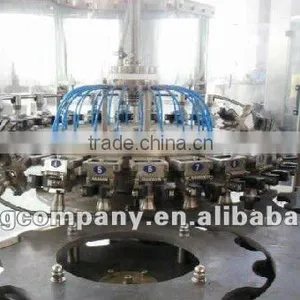

Juice filling machinebeverage juice filling machine
The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice drink. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
The automation is high. It is good equipment for choosing hot drink filling machine.
The machine is adopt block bottle-neck hanging work state design,and be adopt filling valve rise-drop design;It's be satisfy for 95 hereinafter hot filling technology demand;It's adpot person-machine interface touch-screen,PLC,transducer etc advanced control technology.It's osculant the drink material parts are adopt the SUS304 stainless steel,The machine main motor,reducer,mostly axletree,pressurize parts and electricity ware element,gas drive element etc are adopt famous international manufacturer products
Main Technological Data
Model |
RXGF16-12-6 |
RXGF16-16-6 |
RXGF24-24-8 |
RXGF32-32-10 |
RXGF40-40-12 |
| Production capacity(b/h) | 3000-4000 |
4000-6000 |
6000-10000 |
10000-15000 |
15000-20000 |
| Filling precision | ±2mmliquid level |
||||
| Polyester bottle standard(mm) | bottle diameter50-100 hight:150-300 |
||||
| Suitable cap shape | Plastic Screw Cap |
||||
| Water pressure of washing bottle(Mpa) | 0.2-0.25(Mpa) |
||||
| Wash bottle consumption water(kg/h) | 800 |
1200 |
1800 |
2400 |
3000 |
| Spraying position | 5 |
5 |
8 |
12 |
16 |
| Dripping bottle position | 3 |
3 |
4 |
7 |
9 |
| Gas source pressure(Mpa) | 0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
| gas consumption(m3/h) | 0.1 |
0.1 |
0.4 |
0.5 |
0.5 |
| Power(kw) | 4.4 |
4.4 |
5.2 |
6.2 |
7.8 |
| Weight(kg) | 2200 |
2800 |
4500 |
6000 |
7000 |
| Dimensions(L*W*H)(MM) | 2230*1630*2250 |
2360*2830*2250 |
2900*2200*2250 |
3880* |
|
