Right Angle Seri-flesxiable Cable 0.086'' RF cable connector SMA Male
Model: S01-RAS08-11BS00
Specification
| Product Series: | SMA |
| Product Type: | Cable mount |
| Application: | Crimp |
| Body Plating: | Goldplated |
| Body Termination: | Crimp |
| Cable Type: | Semi-rigid Cable .086'' , RG405 |
| Connector Body Style: | Right Angle |
| Connector Material: | Brass |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Insulator: | PTFE |
| Gender: | Plug |
| RoHS: | Yes |
Electrical Characteristics:
| Temperature Range: | -65~ +165°C |
| Impedance | 50 ohm |
| Frequency range | DC~12.4GHz |
| Working Voltage: | 335V max |
| Insulation resistance: | ≥5000 mΩ |
| Withstand Voltage | 1000V rms |
| Contact resistance: | Center Contact ≤3mΩ |
| Outer Contact ≤2mΩ | |
| Insertion loss: | ≥0.15 dB/6GHz |
| VSWR: | ≤1.20 |
| Durability | ≥ 500 (cycles) |
APPLECABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15
APPLICATION:
1) Antennas
2) Base station
3) Broad cast
4) Cable assembly
5) Cellular
6) Components
7) Instrumentation
8) Microwave Radio
9) Mil-Aero
10) PCS
11) Radar
12) Radios
13) Satcom
14) Surge protection
15) WLAN

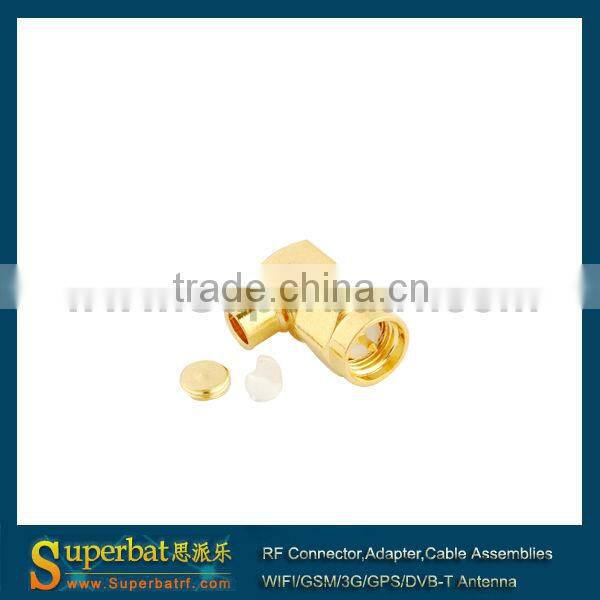

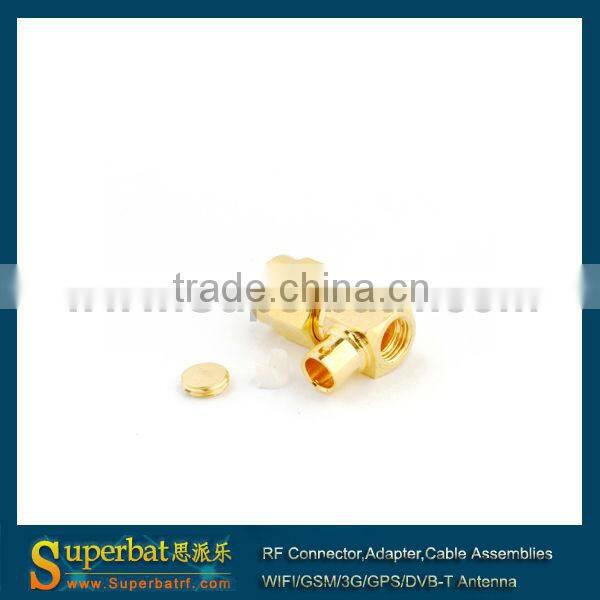

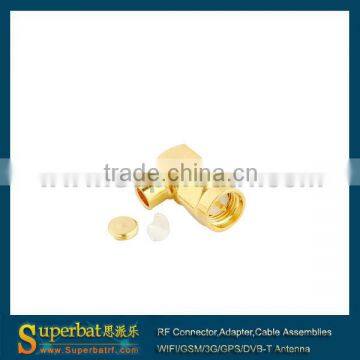

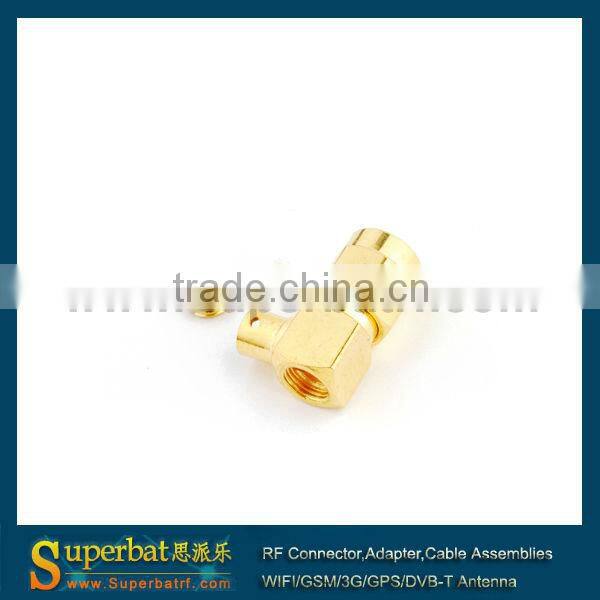

Details photos showed
The other RF connector you may be interested ,see SMA connector series in our store!
SMA Cable mount:
SMA PCB:
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
PAYMENT WAY
We accept T/T, Western Union, Escrow and Paypal.
SHIPPING
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
5. Sample is available.
WARRANTY
1. We can guarantee the product quality within 1 year.
2. If products cannot work,refund or exchange is available.
We provide comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
ABOUT US
We specialises in the sale of RF coaxial connectors,adapters,RF cable assemblies,3G/GSM/WIFI/GPS antennas etc, and especially provides custom services for these products. we own the "Xtar" and "superbat" trademark.
We own a mature and professional Sales Team and Technical Team,and set up a good and long-term relationship with over 50 domestic manufactures of coaxial connector and antenna.We have served for over 86000 customers from more than 120 countries on ebay, alibaba and our online shop.We have achieved great admiration and we are widely trusted at home and abroad.
Our mission is: Provide an Internet-based integrated supply chain for small and medium-sized users and retailers of RF and microwave components in the world.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.
Please contact us if you have other requirement.
Customer's requires are always welcome~!
