Help CenterSMA PCB Mount Connector Female Bulkhead Right Angle Type Wholesale
Related Products
-
SMA Female Connector for LMR195 Bulkhead SMA RF Assembly ConnectorUS$ 0.66 - 0.88MOQ: 1 Piece -
RP-SMA Solder Plug(female Pin) Connector for .141" CableUS$ 0.65 - 0.89MOQ: 80 Pieces
-
Sma Connectors 2 Hole Panel Mount Jack With Long DielectricUS$ 0.69 - 0.78MOQ: 30 Pieces
-
SMA rf Connector SMA Female PCB Mount Connector Tab Terminal for PCBUS$ 0.68 - 1.5MOQ: 1 Piece
-
RP-SMA Solder Jack(male Pin) Bulkhead O-ring Connector for .141"US$ 0.68 - 0.8MOQ: 50 Pieces
Specifications
1.SMA PCB mount connector2.bulkhead O-ring right angle type
3.Goldplated 50 Ohm
4.long thread

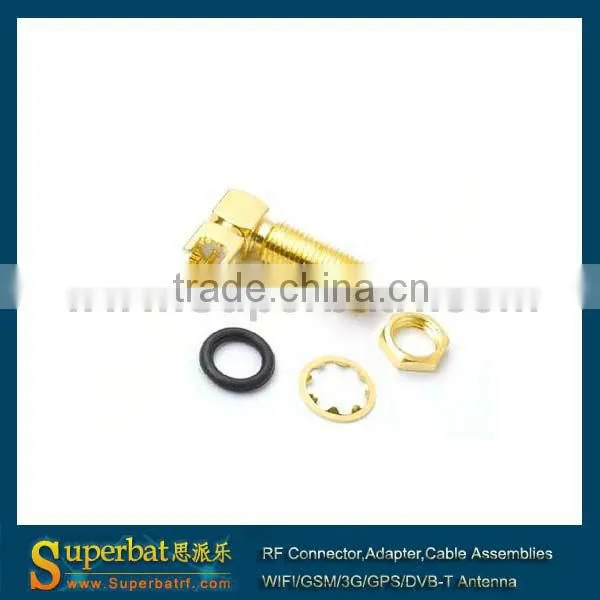

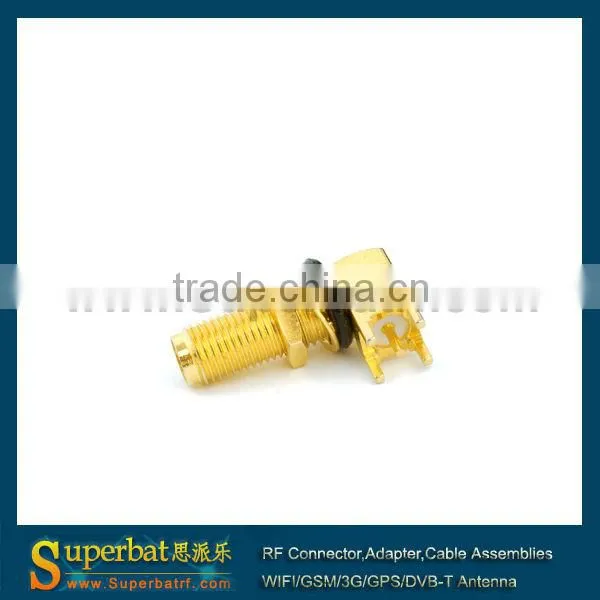

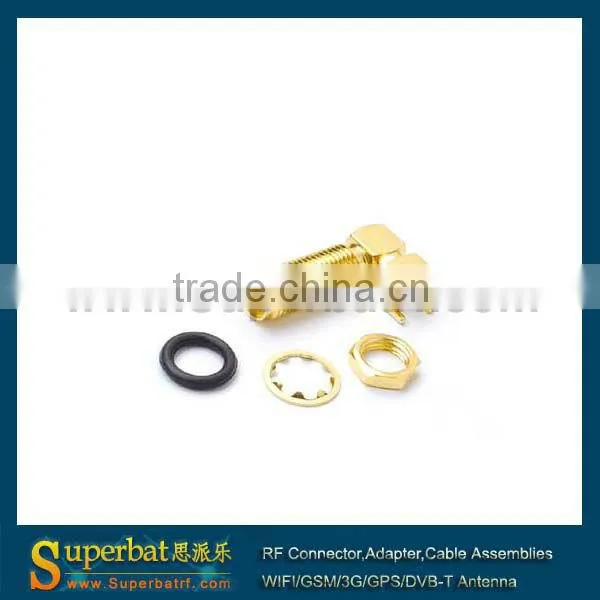

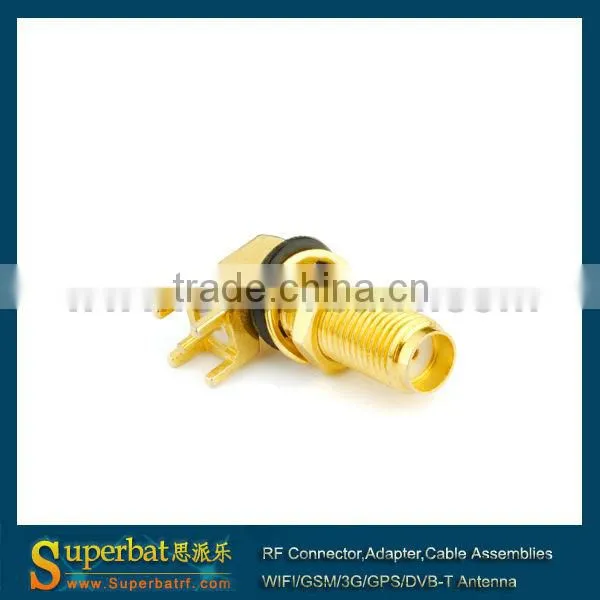

SMA PCB mount connector thru hole jack bulkhead O-ring right angle
Model: S01-ROPT4-11BS00
SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 4GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 4GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.
Technical characteristics
Temp.range.....................-65~ +165 °C(PE Cable -~ +85)
Vibration........................ MIL-STD-202,Method 213
Impedance......................50Ω
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Contact resistance
Center Contact................≤3mΩ
Outer Contact..................≤2mΩ
Insulation resistance.........≥5000 mΩ
Insertion loss ..................≥0.15 dB/6GHz
VSWR Straight...............≤1.10+0.002f
≤1.05+0.001f
Right angle .......≤1.20+0.003f
≤1.10+0.001f
Durability(mating)..............≥ 500 (cycles)
APPLECABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15
| Product Series: | SMA |
| Datasheets: | |
| Product Type: | Thru Hole PCB Mount |
| Attachment/Affixment: | bulkhead O-ring |
| Body Plating: | Goldplated |
| Connector Body Style: | Right Angle |
| Connector Material: | Brass |
| Contact Plating: | Goldplated |
| Gender: | Jack |
| Impedance: | 50 Ohm |
Send Inquiry to This Supplier
