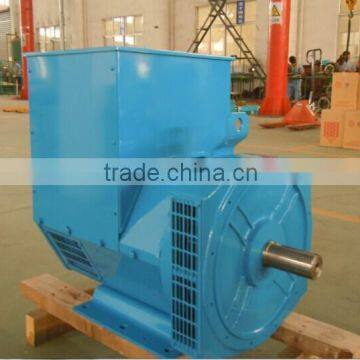

100kva 200kva ac Stamford type alternator generator for diesel genset
Specifications
4-Pole Farrand brushless alternator specifications 3 phase H Class Temperture-rise(125°C) | |||||
Rating Power Factor | 0.8/1 | ||||
Altitude | 1000m | ||||
Insulation Class | H | Excitation System | Shunt | ||
Lead Number | 12 | A.V.R Model | SX460/MX321/MX341/SX440/SX440T/AS440 | ||
Winding Pitch | 2 / 3 | Voltage Regulation | ±1% | ||
Ingress Protection | IP 22 / 23 | Transient Voltage Recovery Time(s) | ≤1.0 | ||
Waveform:NEMA-MG1 | ≤50 | Waveform:IEC-THF | ≤2% | ||
Ambient Temperature | 40° C | 40° C | 40° C | 40° C | |
Temperature Rise | 125° C | 150° C | 125° C | 150° C | |
Phase / Insulation | 3 Phase / H Class | 3 Phase / H Class | |||
Frequency | 50Hz(1500rpm) | 60Hz(1800rpm) | |||
Voltage ( V ) | 110-690 | 110-690 | |||
Type | Capacity | Capacity | |||
| Rated capacity/kva | Rated power/kw | Rated capacity/kva | Rated power/kw | |
FLD274C | 100 | 80 | 125 | 100 | |
FLD274D | 114 | 91 | 138 | 110 | |
FLD274E | 140 | 112 | 168 | 134 | |
FLD274F | 160 | 128 | 190 | 152 | |
FLD274G | 175 | 144 | 213 | 170 | |
FLD274H | 200 | 160 | 245 | 196 | |
Product assurance in materials and technology
- 100% Essex pure copper wire, cold rolled silicon (Wugang Brand, 800 Series)
- 2/3 Pitch winding as standard to avoid excessive neutral currents
- Single or two bearings construction with dynamically balanced rotor and sealed-for-life bearings
- Easy access for installation and maintenance
- IP22/ P23 protection standard, class H insulation
- Standard SX440 for FLD274, MX341, MX321 are optional AVR, as well as PMG Excitation

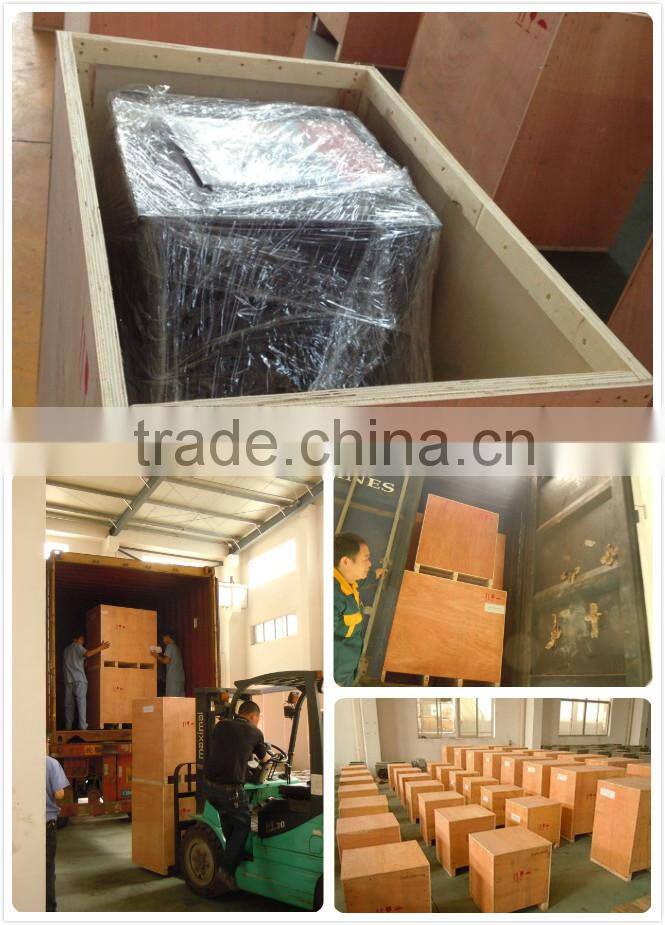

Plywood packing case,fumigation-free .
Shipping : In 3--15days since getting full payment in Shanghai Port .

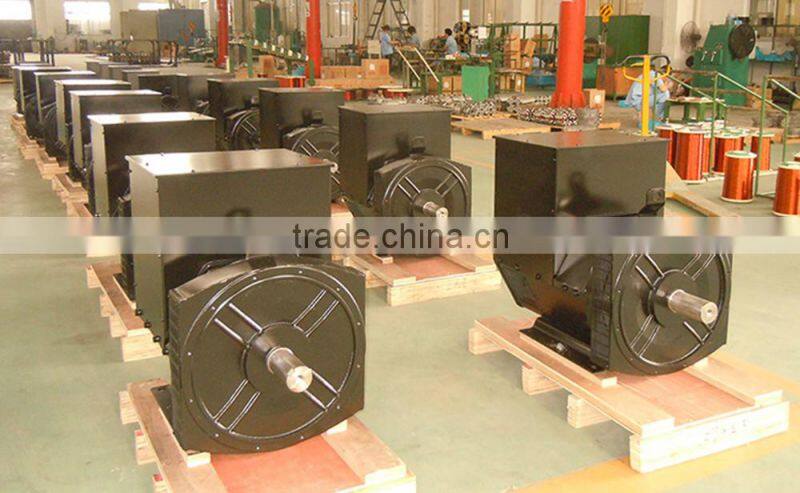

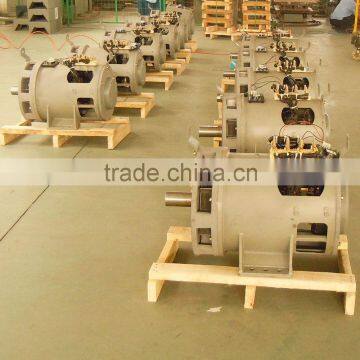

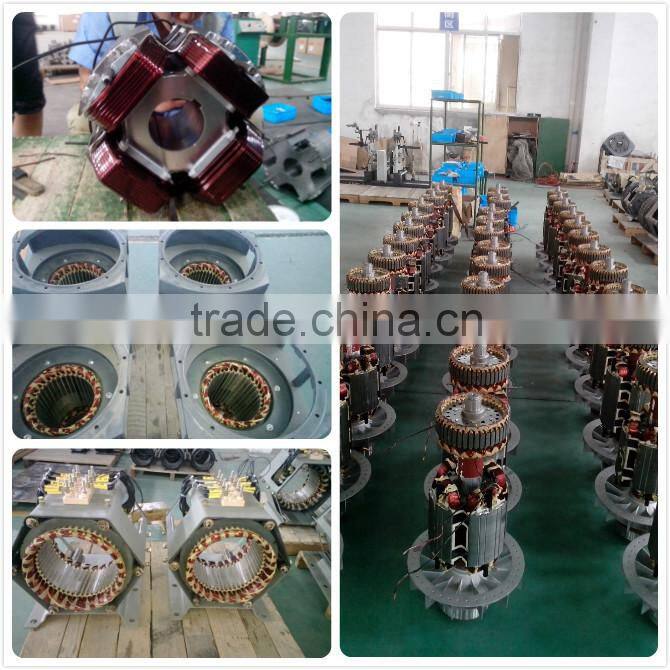

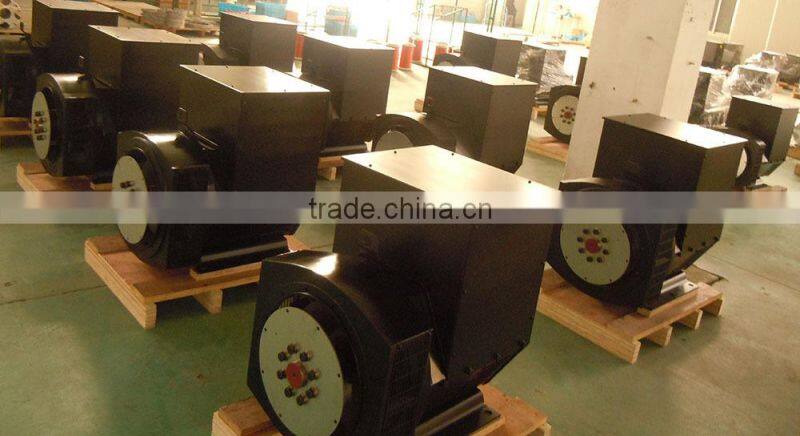

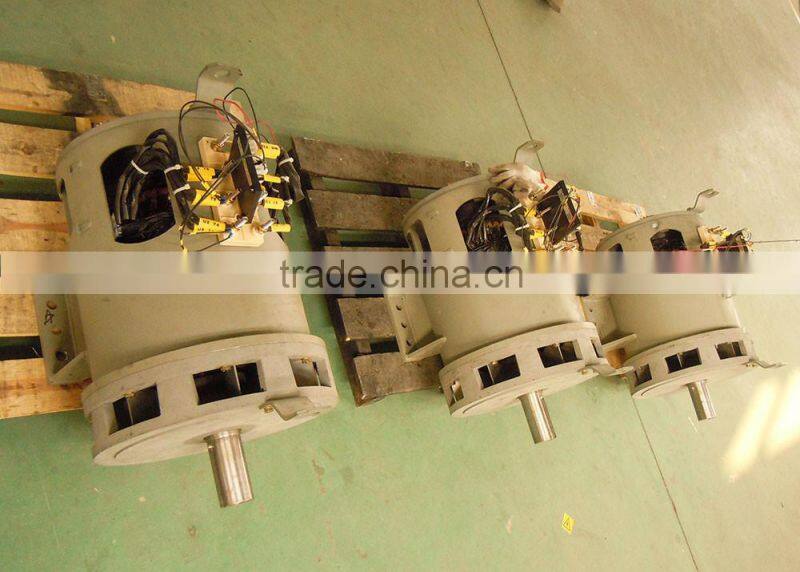

Reference Pictures
Support quality product with reasonable price, be your trustworthy alternator supplier!
