Home > Products > Connector > MC4 BRANCH ADAPTORS-T BRANCH CONNECTORS 30A TUV SOLAR PANEL PV DIY-JKKK wholesale price
MC4 BRANCH ADAPTORS-T BRANCH CONNECTORS 30A TUV SOLAR PANEL PV DIY-JKKK wholesale price
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | superbatrf | Model Number: | MC4-2292-JKKK |
Type: | Other, solar connector | Application: | Power | Gender: | Other, male and female |
Product Description
Specifications

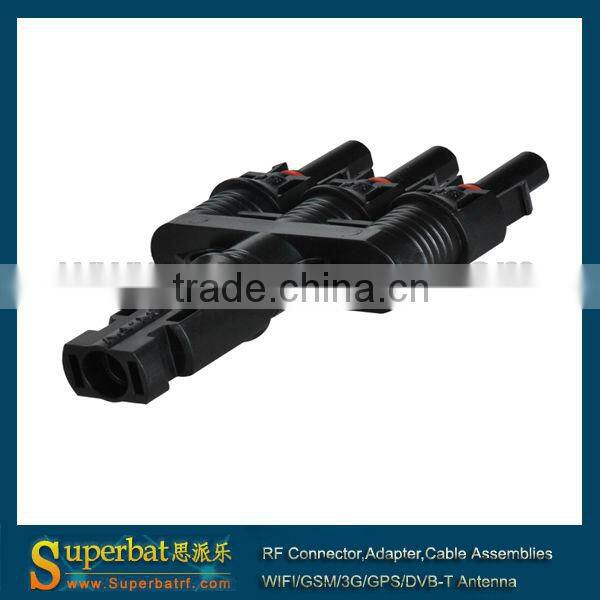

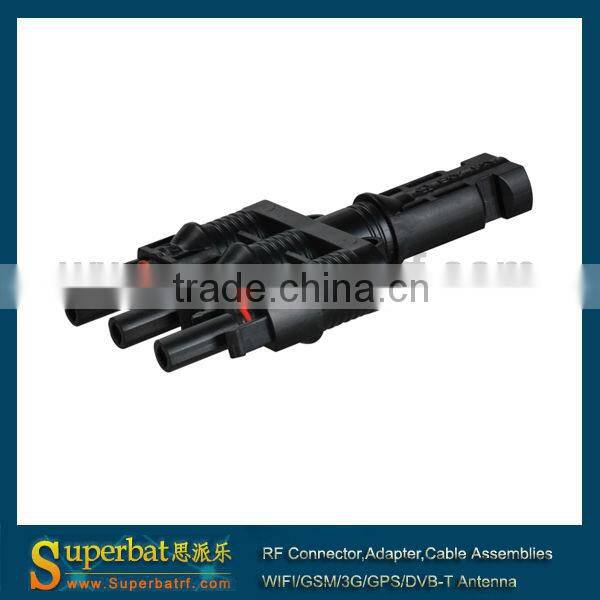

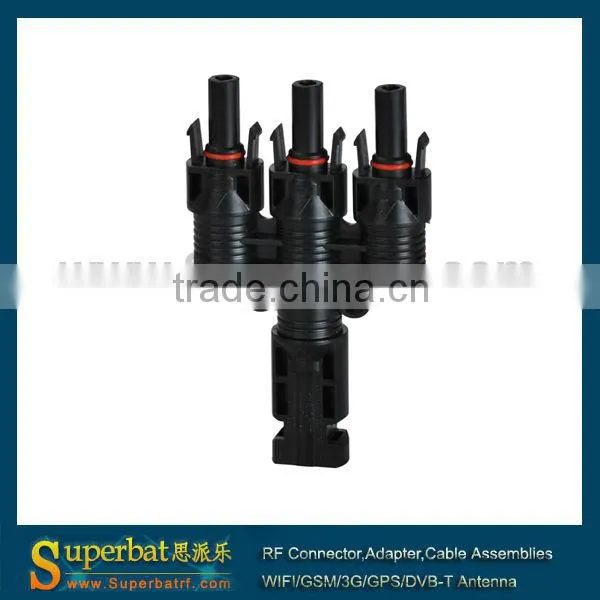

1.MC4 BRANCH ADAPTORS-T BRANCH CONNECTORS2.Reliably performance
3.Simple,quick installation
MC4 BRANCH ADAPTORS-T BRANCH CONNECTORS 30A TUV SOLAR PANEL PV DIY-JKKK A
Model: MC4-2292-JKKK
specification
Rated Voltage : TUV 1000V DC/ UL600V DC
Rated current : 20A-30A
Suitable cable cross section : 14AWG-10AWG
Pin dimension : Ø4.0mm
Proof voltage : TUV 6000V AC(1 MIN)/ UL 2200V DC (1MIN)
Polution degree : 2
Protection class : Class 2
Contact Material : Copper, Tin plated
Contact Resistance : ≤ 53
Degree of protection : IP 68
Withdrawal Force : ≥ 50N
Insertion force : ≤ 50N
Temprature range : -40 deg.~+85 deg
Flame class : UL94V-0
Package included:
1pcs MC4 Branch Adapters Male to three Female
