Help Center50Ohm Sma Bulkhead Adapter Female Connector PTFE
Related Products
-
n Type Plug Connector Right Angle Connector for LMR400US$ 0.73 - 0.89MOQ: 50 Pieces -
n Male Pigtail Cable Corrugated Copper 7/8" Cable rf Straight Connector AdapterUS$ 0.73 - 0.89MOQ: 50 Pieces
-
Dust Cap for n Type Coaxial ConnectorUS$ 0.73 - 0.89MOQ: 50 Pieces
-
RF N Connector Caps.Dust CapUS$ 0.73 - 0.89MOQ: 50 Pieces
-
Mcx Connector for tv Antenna Edge Mount Jack Antenna ConnectorUS$ 0.73 - 0.89MOQ: 50 Pieces
Specifications
1.50Ohm bulkhead sma connector2. with Nut Straight type
3.Impedance:50 Ohm
4.goldplated

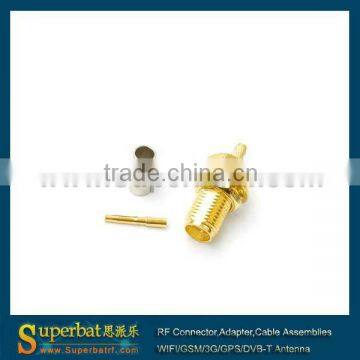

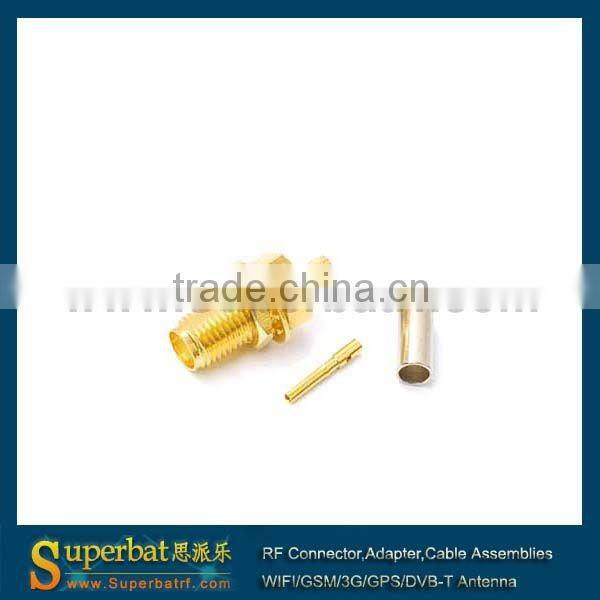

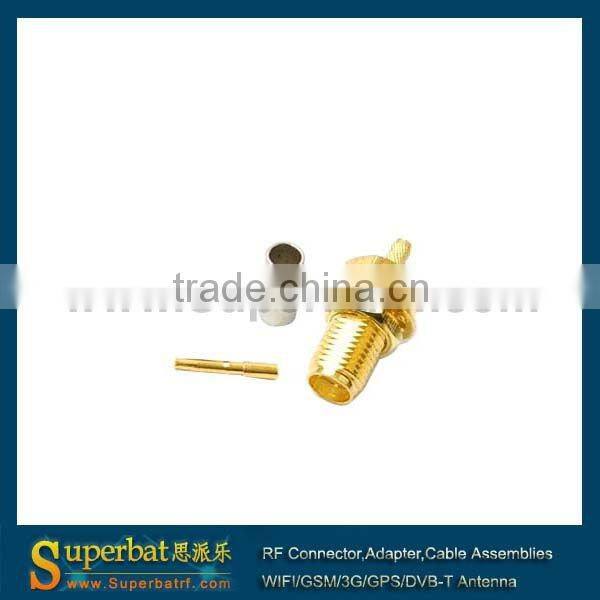

50 Ohm sma female connector bulkhead
Model: S01-BH316-11BS01.
Description:
SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.
SMA connectors are designed to conform to MIL-C-39012 specifications.
Specification:
| Product Series: | SMA |
| Product Type: | Cable mount |
| Application: | Crimp |
| Attachment/Affixment: | Bulkhead with Nut |
| Body Plating: | Goldplated |
| Body Termination: | Crimp |
| Cable Type: | RG316,RG174,RG188,LMR100 |
| Connector Body Style: | Straight |
| Connector Material: | Brass |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Gender: | Jack |
| Impedance: | 50 Ohm |
| Insulator: | PTFE |
Technical characteristics
Temp.range.....................-65~ +165 °C(PE Cable -~ +85)
Vibration........................ MIL-STD-202,Method 213
Impedanec......................50Ω
Frequency Range.............DC~12.4GHz(0~18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Contact resistance
Center Contact................≤3mΩ
Outer Contact..................≤2mΩ
Insulation resistance.........≥5000 mΩ
Insertion loss ..................≥0.15 dB/6GHz
VSWR Straight...............≤1.10+0.002f
≤1.05+0.001f
Right angle .............≤1.20+0.003f
≤1.10+0.001f
Durability(mating)..............≥ 500 (cycles)
