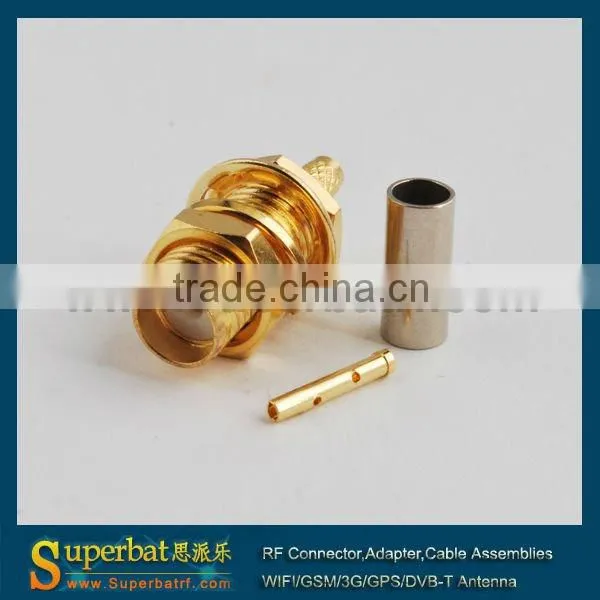

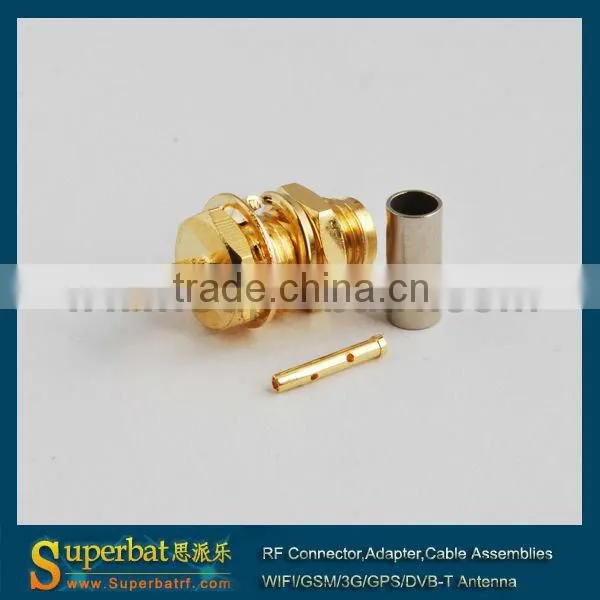

Help CenterConnector Sma Female Jack Crimp for RG316 Cable Goldplated Straight Type Wholesale
Related Products
-
n Type Connector for RG174,RG178,RG316,LMR100,1.13mmUS$ 0.73 - 0.89MOQ: 50 Pieces -
MC-Card Crimp Plug Right Angle for Option Wireless CardUS$ 0.69 - 0.8MOQ: 52 Pieces
-
N Solder Plug Connector Solder for Semi Rigid.086" CableUS$ 0.73 - 0.89MOQ: 50 Pieces
-
n Type Male Connector Solder for Semi Rigid.086" CableUS$ 0.73 - 0.89MOQ: 50 Pieces
-
n Type Coax Connectors Semi Rigid.086" CableUS$ 0.73 - 0.89MOQ: 50 Pieces
Specifications
nnector sma2.Bulkhead with Nut Straight
4.Impedance:50 Ohm
5.Style:Straight
sma connector female type for RG316
Model: S01-BH316-11BS00
Description:
SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz.
SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community.
SMA connectors are designed to conform to MIL-C-39012 specifications.
Specification:
| Product Series: | SMA |
| Datasheets: | |
| Product Type: | Cable mount |
| Application: | Crimp |
| Attachment/Affixment: | Bulkhead with Nut |
| Body Plating: | Goldplated |
| Body Termination: | Crimp |
| Cable Type: | RG316,RG174,RG188,LMR100 |
| Connector Body Style: | Straight |
| Connector Material: | Brass |
| Contact Plating: | Gold |
| Contact Termination: | Solder |
| Gender: | Jack |
| Impedance: | 50 Ohm |
Technical characteristics:
Temp.range.....................-65~ +165 °C(PE Cable -~ +85)
Vibration........................ MIL-STD-202,Method 213
Impedanec......................50Ω
Frequency Range.............DC~12.4GHz(0~18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Contact resistance
Center Contact................≤3mΩ
Outer Contact..................≤2mΩ
Insulation resistance.........≥5000 mΩ
Insertion loss ..................≥0.15 dB/6GHz
VSWR Straight...............≤1.10+0.002f
≤1.05+0.001f
Right angle .............≤1.20+0.003f
≤1.10+0.001f
Durability(mating)..............≥ 500 (cycles)
