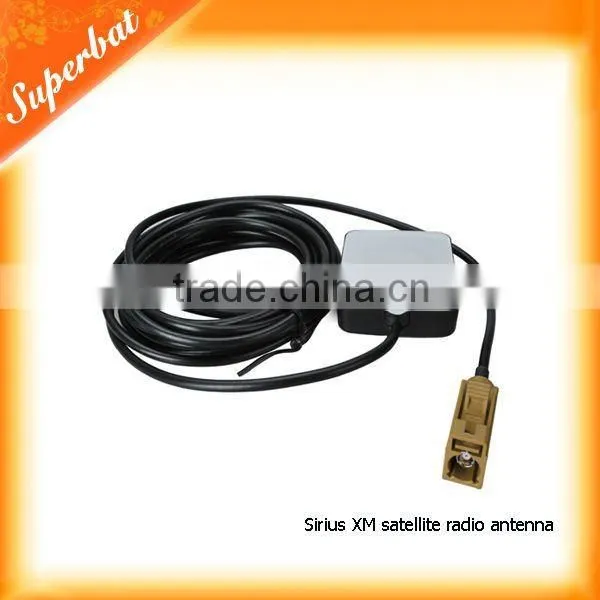

2320-2345MHz Sirius XM Satellite Radio Antenna With Fakra
US$ 10.94 - 13
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
superbatrf
Model Number:
EA3-854-F03KSJ-300
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2320-2345MHz Sirius XM Satellite Radio GPS Antenna Fakra ConnectorUS$ 10.94 - 13MOQ: 100 Pieces -
10DBi 3g Gsm Umts Antenna 890-960 1710-2500 Mhz CRC9 Connector for GSM/3G Devices/WirelessUS$ 18 - 21MOQ: 10 Pieces
-
2.4ghz 12dbi Omni Antenna RP SMA for Wireless RouterUS$ 6.4 - 9.2MOQ: 20 Pieces
-
External 3g Antenna 9dbi 3G Magnetic Mount Antenna BaseUS$ 7.5 - 11.5MOQ: 10 Pieces
-
3g Wifi Router With External Antenna 12dbi With CRC9 ConnectorUS$ 5.6 - 9MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
superbatrf
Model Number
EA3-854-F03KSJ-300
Frequence Range
2320-2345 MHz
Gain(dB)
28dB
Cable Length
84x53.8x62mm
Specifications
1.Sirius XM Satellite Radio Antenna2.2320-2345MHz
3.Application GPS Recieve Mobile System
4.HighStability
2320-2345MHz Sirius XM Satellite Radio Antenna Fraka
Model: EA3-854-F03KSJ-300
Feature:
Frequency range: 2320 - 2345 MHz
Bandwidth: 25 MHz
Impedance: 50 ohms
Azimuth: Omni directional
Polarization: LHCP
LNA Gain: 30dB, typical
Noise Figure: 1.5 dB
V.S.W.R: ＜2.0
DC Voltage: 3.0V to 5.5V
DC Current: 10mA Max
Weight: ＜110gram
Size: 44×35.5×14mm
Cable: RG174, 10 feet (3M)
Connector: FAKRA K female
Mounting: Magnetic base
Housing: Black
Working Temp: -40℃~+85℃
Storage Temp.: -45℃~+100℃
Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis
Humidity Humidity: 95%~100%RH
Weatherproof: 100%Waterproof
Optional GPS Antenna we can cuztomize with : Eg : AVIC, GT5-1S, Wiclic ...
