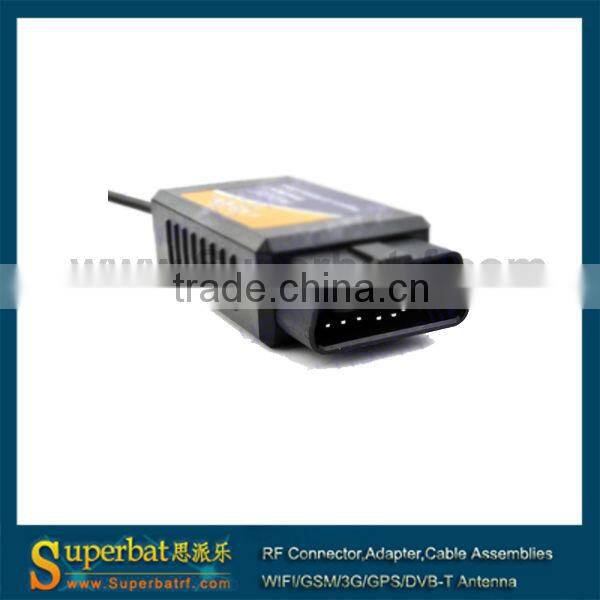

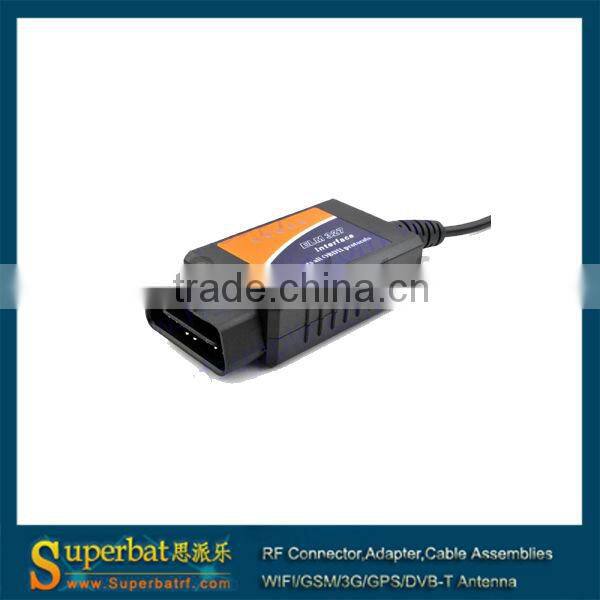

Auto Scan Tool OBDII ELM327 USB Diagnostic Interface Elm327 Interface Supports All Obdii Protocols

Specifications

Description:

ELM327 USB is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM327 USB. The output protocol (connection to laptop) is USB.
Net Weight: 0.12KG

Detailed Product Description

Feature:
1. Read Codes display diagnostic Code(DTCs)
2. Clear DTC and Reset MIL(check Engine Light )
3. Support the latest vehicles with the new CAN-BUT protocols
4. USB Connection support bu wider range of computer
5. No battery required power is supplied by the OBD port
6. LED indicate power and show communication staus

OBDII V1.3 USB Interface
This interface used the OBE-D-IV1.4 chipset with FTDI Serial to USB for reliable connections to your vehicle and computer, its the most compatible version of the OBDII scanner ,for car and van owners ,its easy to save time and money with this OBDII interface which enables you to connect your vehicle to your PC, by reading the diagnostic trouble code (DTC) that appear when MIL(checking engine)light is showing ,you can troubleshoot any problem in your vehicle.
DTCs are code stored by the vehicles computer system when a vehicle issue occurs .Each DTC represent a particular vehicle issue which is used as a guide to locate the root cause, in order for you to fix the vehicle.

The interface is the most powerful member of the series and is compatible with a wider range of protocols than before.
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPM (10.4 kbaud)
SAE J1939
ISO 9141-2 (5 baud init.10.4 kbaud)
ISO14230-4 KWP(5 baud init.10.4 kbaud)
ISO14230-4 KWP(fast init.10.4 kbaud)
ISO15765-4 CAN (11 baud init.500 kbaud)
ISO15765-4 CAN (29 baud init.500 kbaud)
ISO15765-4 CAN (11 baud init.250 kbaud)
ISO15765-4 CAN (29 baud init.250 kbaud)
ISO15765-4 CAN (29 /11baud init.250 kbaud)

Compatible with following vehicles:
Car in Europe market form 200.1
Diesel cars in Europe from year 2004
Car (Domestic & Import) in the USA market from 1996
Light trucks (Domestic & Import ) from 1996
Software included :
Easy OBD V2.2 freeware
Digtal Dash 5 (A free Car PC Frontend that includes and monitoring)
OBD2 Crazy 1.51 freeware
Putty 0.60 (Termianl program for windows that allows you to send ELM AT codes directly to the unit)

Interface specification:
OBDII v1.3 and FTDI USB to Serial chipset
Connect to your PCS USB port
Baud rate:38400 8-N-1
Operating voltage:12v
Nominal idle current:45mv
No need for adapter or batteries take its power directly form the vehicles OBD2 plug

Package including:
1 X OBD-II V1.4 interface
1 X Software with USB Driver, Easy OBDII ,OBDII Spy, scamtool-net113win
