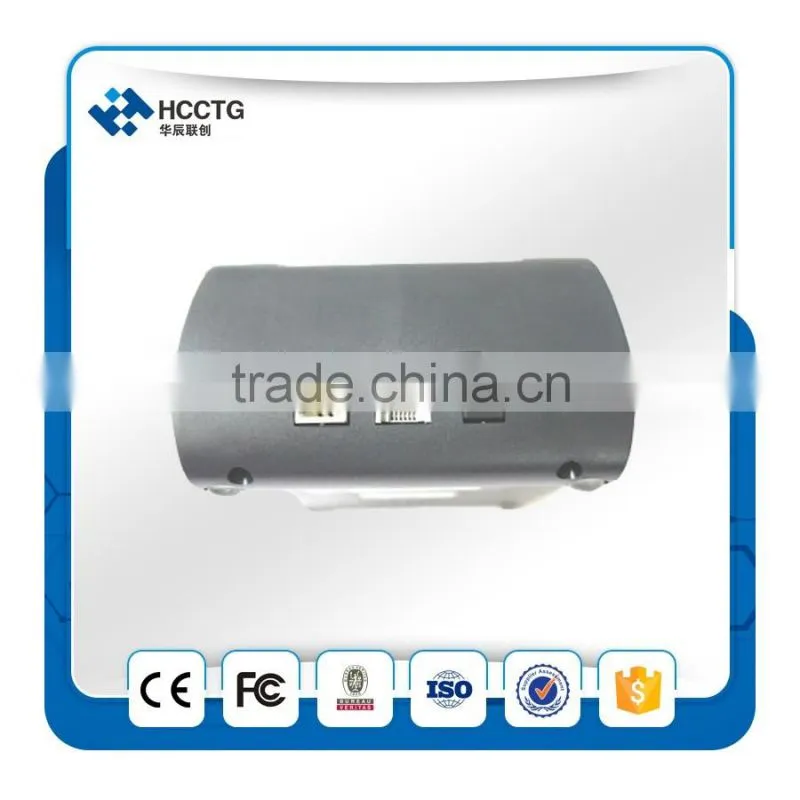

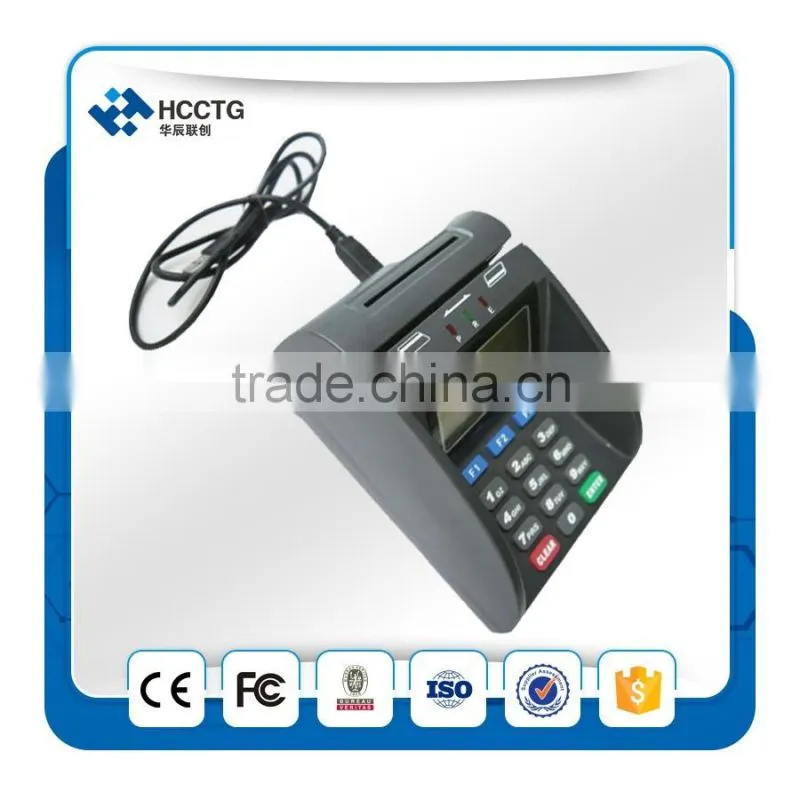

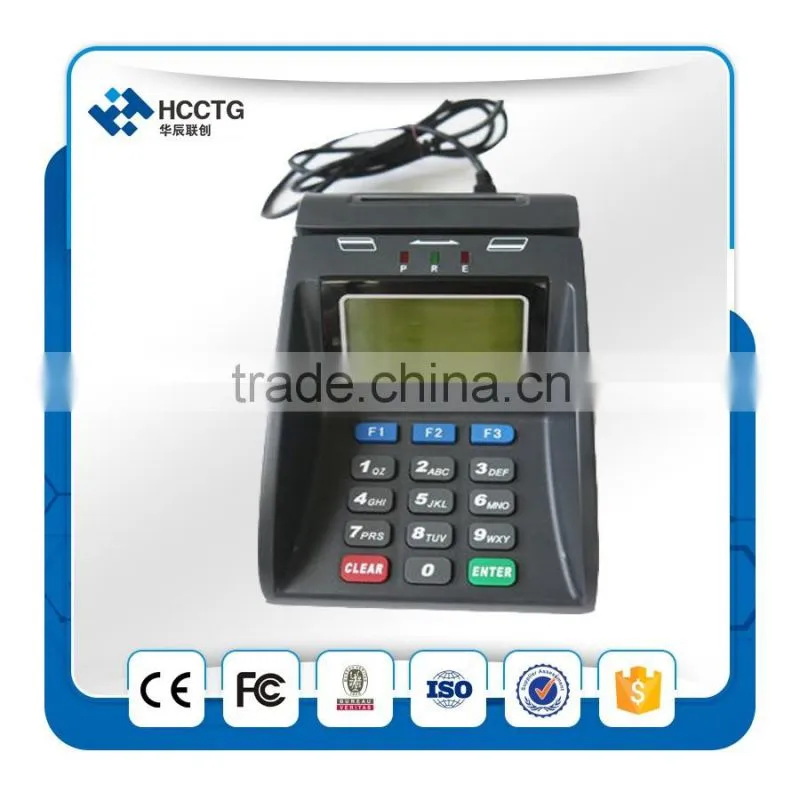

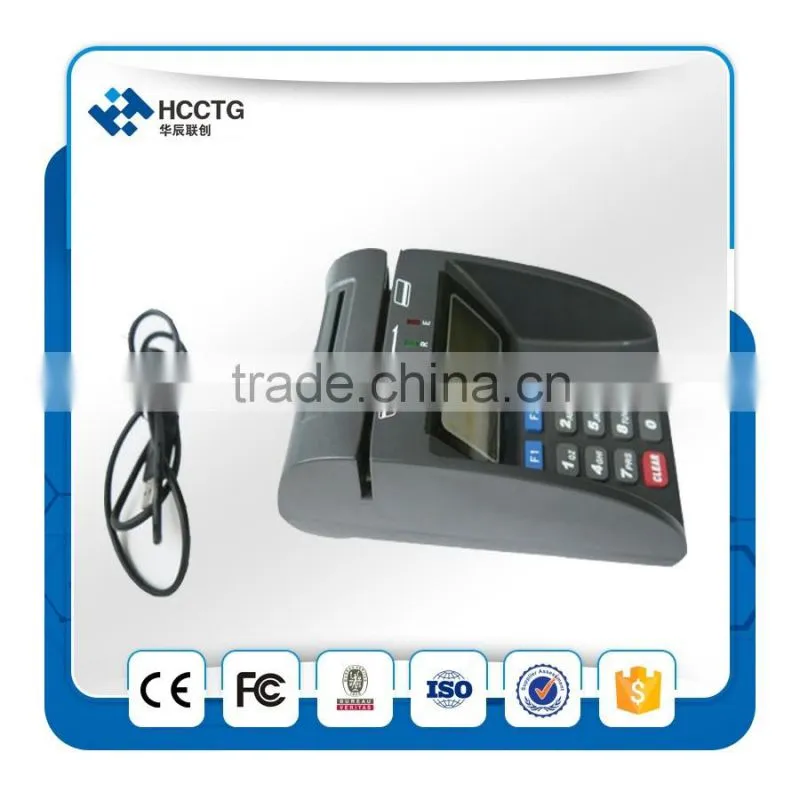

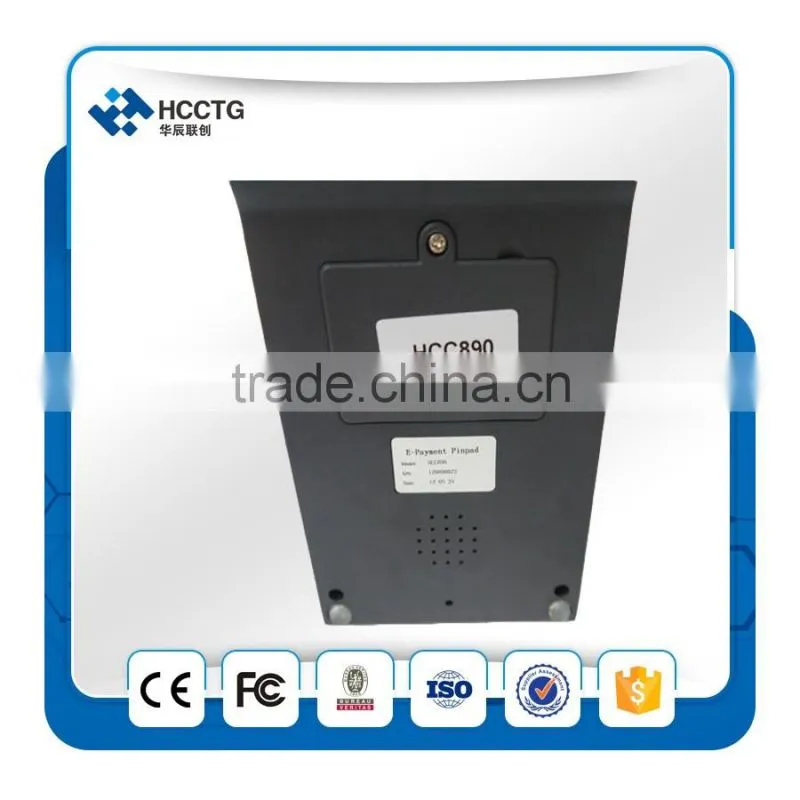

E-Payment Pinpad/handheld terminal/bill payment model-HCC890
General
HCC890 is a multifunction Pinpad which perfectly combine the magnetic card reading, IC card / SAM card reading & writing, contactless card reader/writer and also customer personal information & password entry.
HCC890 has compact and refined appearance to save counter space, ergonomically design and user-friendly for operation, reliable performance and flexible application to ensure highly secure service. It is much suitable for bank network, insurance, medical treatment, tariff and POS system.
Feature
Ÿ 15 key include general number input 0-9, ENTER , CANCEL and 3 other functional keys;
Ÿ LCD graphic display and beep indication
Ÿ With internal DES module (3DES module available), realize data transfer and authentication under encryption
Ÿ Encryption support DUKPT & Master/Session Key, compatible with
ANSI X9.24
Ÿ PC/SC, T=0 and T=1 compatible
Ÿ Self-destroyed against violation
Ÿ Provide DEMO drive program and tools for further development in Windows.
Specification
LCD graphic display |
128×64 dots, display 16×2 characters at optional |
Keypad |
15 key, include 10 numeric key 0-9, ENTER , CANCEL and 3 function key |
Magnetic reader |
Bi-directional reading track 1/2/3 of magnetic card complied with ISO-7811/7816 ( Dual magnetic head design at optional) |
IC card reader/writer |
IC card wedge, also read memory card & CPU card, internal 1-4 SAM card wedge available at option. |
Contactless card reader/writer |
ISO 14443 Type A protocol |
Keypad encryption |
DES/3DES & DUKPT |
Communication Interface |
Standard RS232 interface or USB interface available at option |
Power supply |
RS232 interface: P4 power connector supply DC+12V, (AC 90 ~ 250V) USB interface:USB interface supply DC+12V, or fetch power from USB directly; |
Dimension |
180×110×70mm |
Weight |
600g |
Working environment |
-10-60, RH, noncondensing |
Model Description:
890x1-x2x3x4x5
Type |
X1 |
Interface |
X2 |
LCD |
X3 |
Magnetic Tracks |
X4 |
IC/PSAM |
X5 |
Contactless card |
|
890 E-Payment Pinpad |
R |
RS232 Series port |
S |
16*2 Character |
4 |
1&2 tracks |
0 |
NO |
0 |
NO |
U |
USB |
L |
128*64 Graphic |
5 |
2&3 tracks |
1 |
Smart Card |
1 |
Yes |
|
|
|
|
|
6 |
1&2&3 tracks |
2 |
Smart Card and SAM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For example
HCC890 R S420 – Pin Pad, with RS232 series interface, 16*2 characters LCD, 1/2 magnetic strips reader, smart card reader, SAM module.
