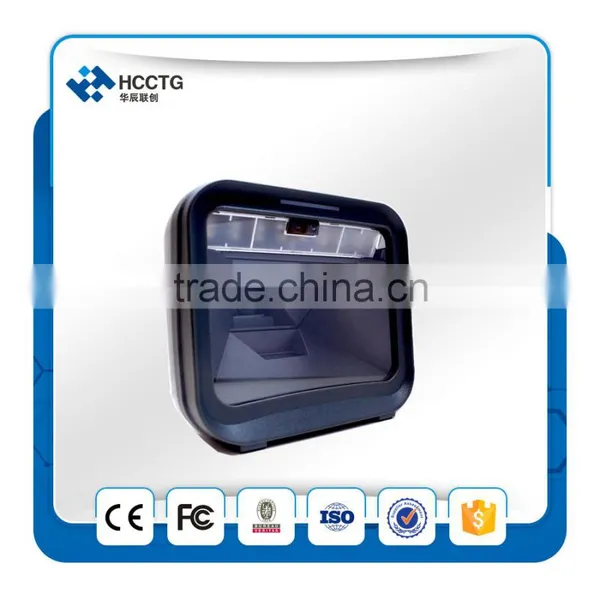

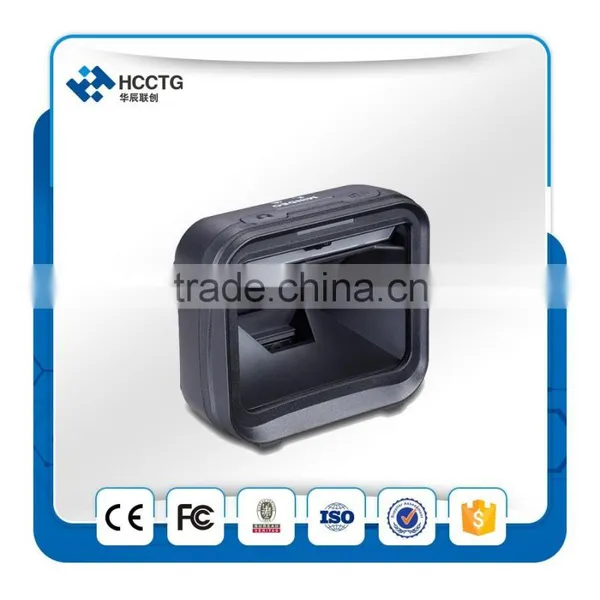

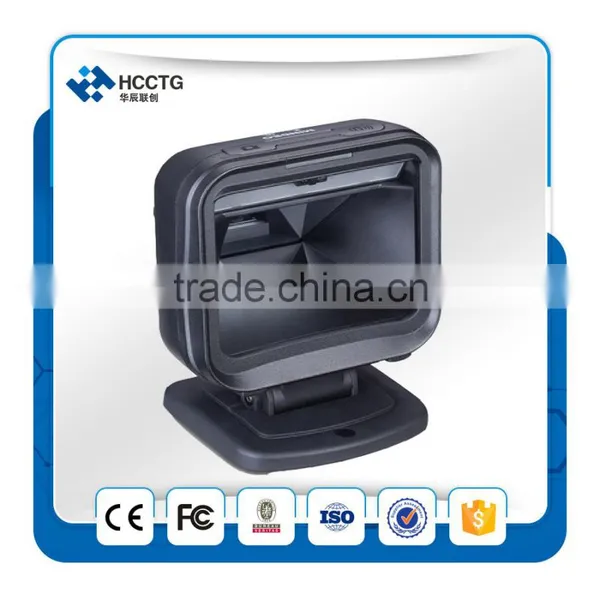

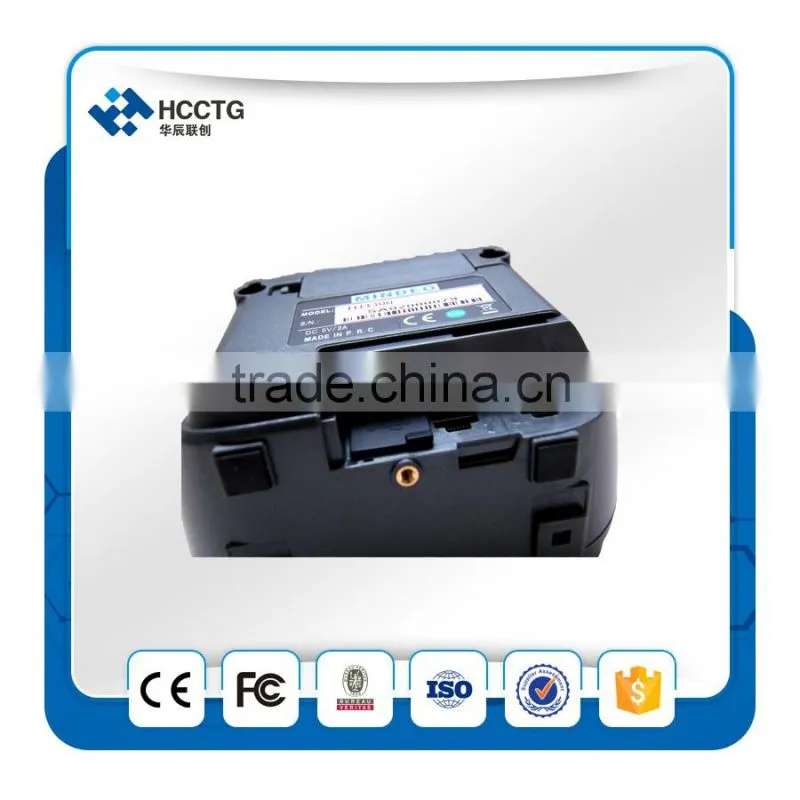

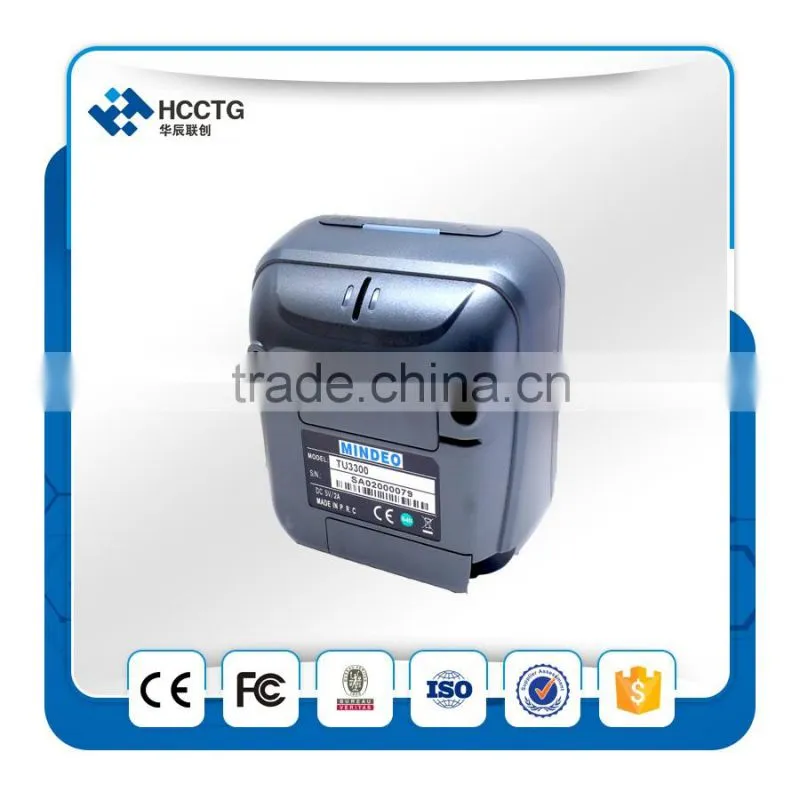

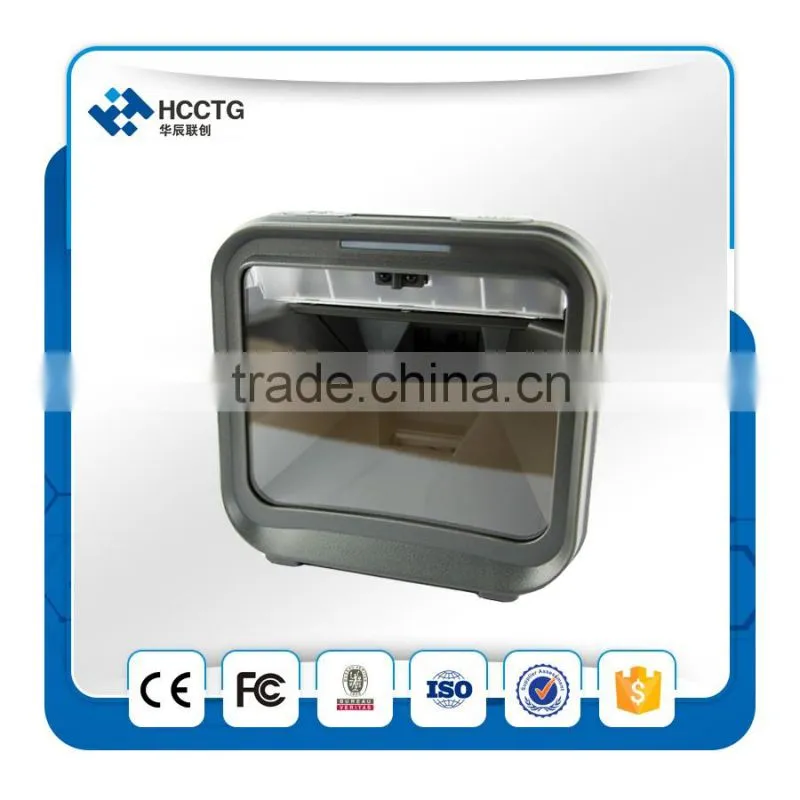

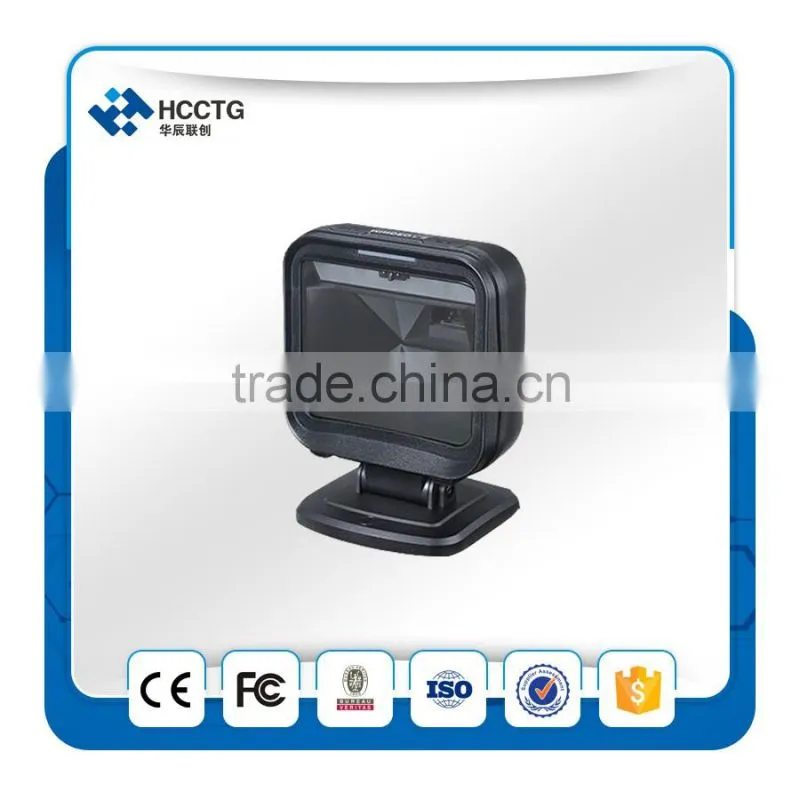

wireless video camera machine working platform-HTU3300D
Technical Specifications
Input vpltage |
5 VDC±0.25V |
Power |
5.00W(working);0.40W(standby) |
Current |
1000Ma(working);80mA(standby) |
Image size |
1280*1024 pixels |
Scanning angle |
±60°, ±40°, 360°(Skew,Pitch,Roll) |
Decode capability |
1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN),ISSN, Code 39, Code 39 full ASCII, Code32, Trioptic Code 39, Interleaced 2 of 5, Industrial 2 of 5(Discrete 2 of 5),Matrix 2 of 5, Codabar(NW7), Code 128, UCC/EAN 128 (GSI-128), ISBT128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GSI DateBar (formely RSS) variants, 2D: PDF417, MicroPDF417, QR code, DataMatrix, Chinese Sensible Code, Code Aztec. |
Indicator |
Beeper, LED |
Interface supported |
Keyboard wedge, RS232, USB Keyboard, USB virtual COM |
Trigger mode |
Auto-induction, manual operation |
Dimensions |
Height*Width*Depth: 152mm*81mm*144mm(without stand) 152mm*112mm*184mm(with stand) |
Weight |
563g(without stand ,without cable) 832g (with stand, with cable)
|
Cable |
Straight 2.0m |
Connector type |
RJ-45 phone jack connector |
Case material |
PC+TPU |
Temperature |
0-50(32° to 122°F)Operating ;-40-70(-40° to 158°F)Storage |
Humidity |
5% - 95%(non-condensing) |
Programmable method |
Manual (reading special barcode) |
Program upgrade |
Online |
Min. element width |
3.5mil , 1 mil=0.0254mm |
|
Decoding depth
|
5mil Code39 (20 chars): 0mm-60mm |
13mil Code39 (12 chars): 0mm-17mm | |
20mil Code39 (5 chars): 0mm-180mm | |
6.7mil PDF417(20 chars): 0mm- 100mm | |
10mil DM(20 chars): 0mm- 130mm | |
20mil QR(20 chars): 0mm- 220mm | |
Safety |
EMC: EN55022,EN55024 Electrical safety : EN60950-1 Photobiological safety: EN62471:2008 Illumination : 0-100,000LUX Protection class : IP52 Drop resistance : 1.5m(5.0ft) drops to concrete |
