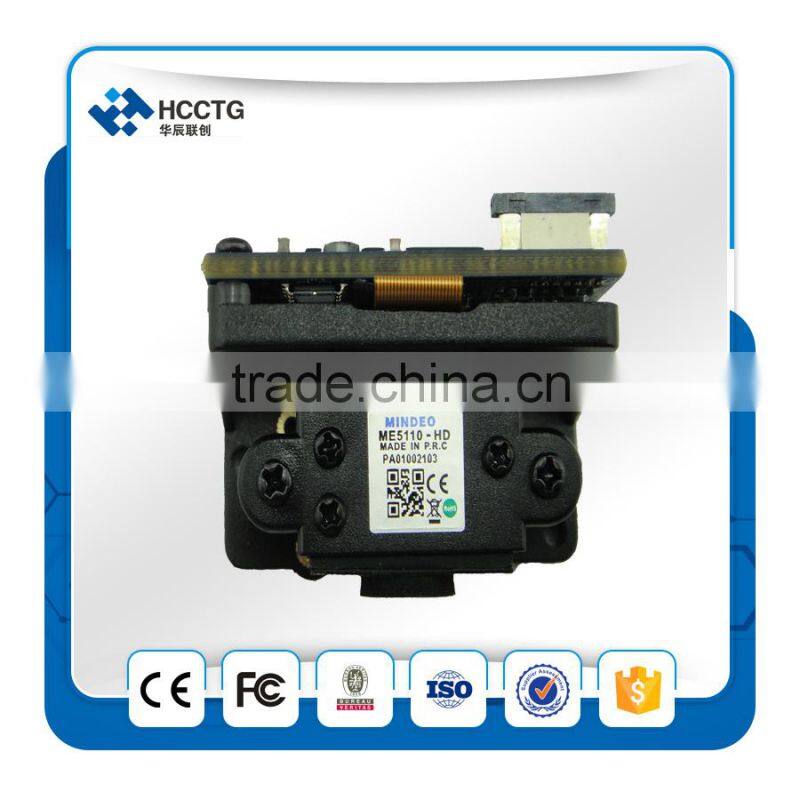

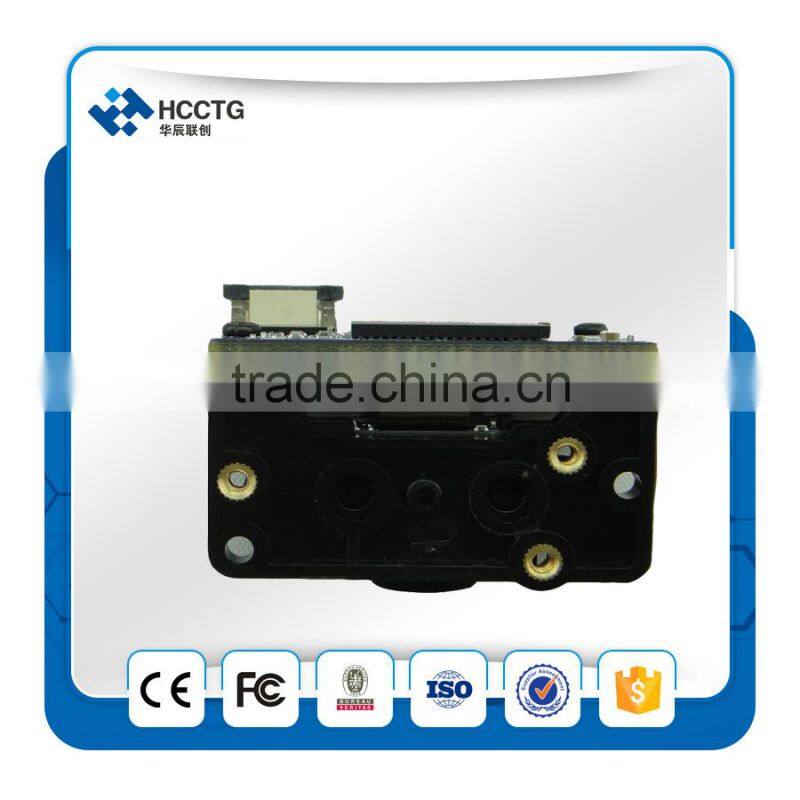

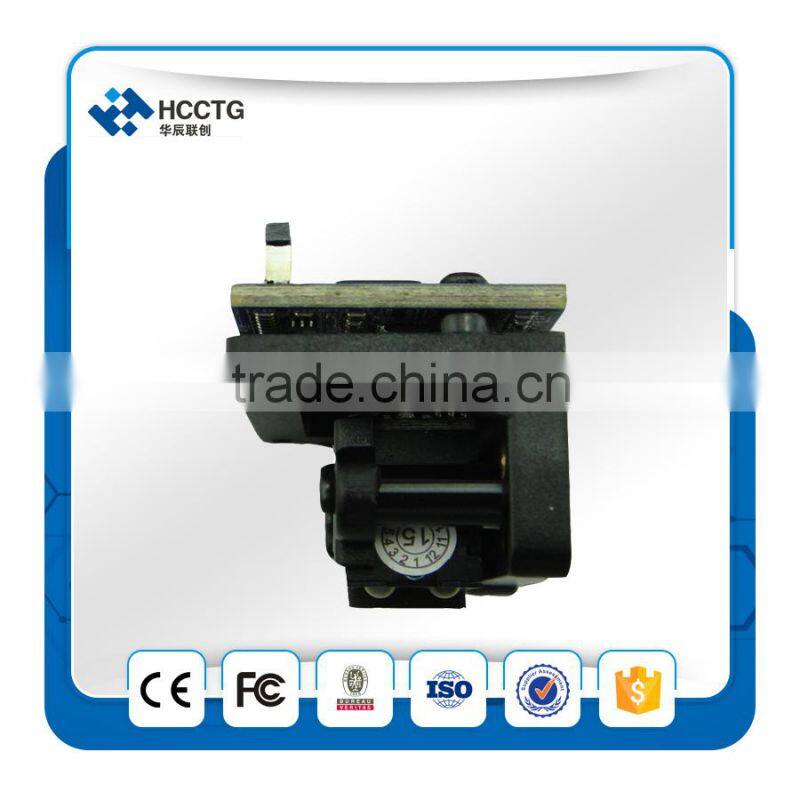

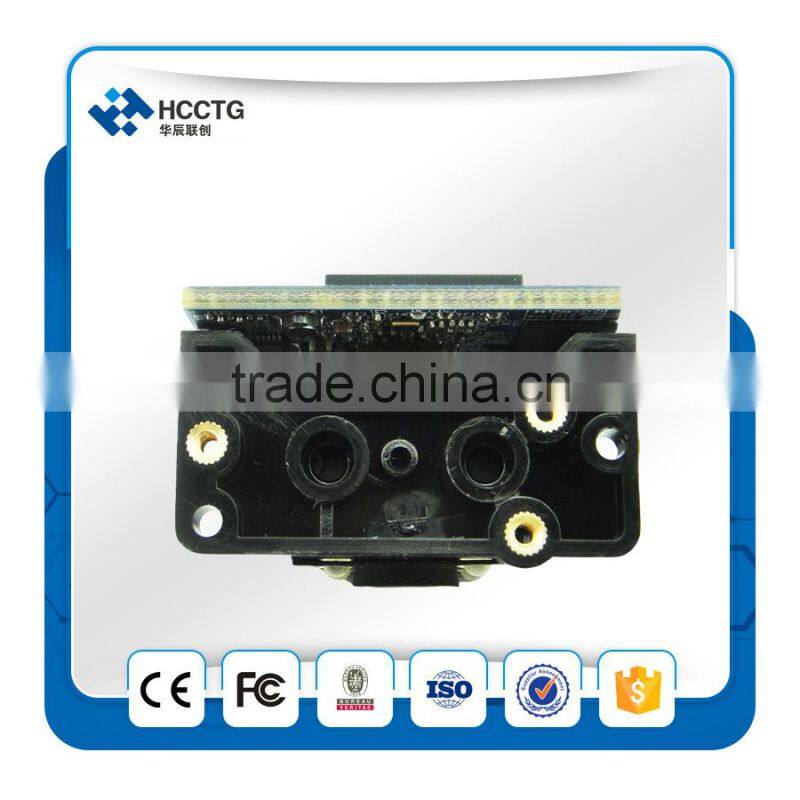

China RS232 Laser Mini QR 2D Barcode Scanner Module--HME5110

Item

Description

Input voltage

3.3 VDC±5%

Scanning current

Typical: 360 mA

Maximum: 386 mA

Standby current

8 mA

Image size

752 × 480 pixels

Scanning angles

±60°, ±40°, ±42° (Skew, Pitch, Roll)

Decode capability

1D:

UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code

39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial

2of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11

(USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China

Finance, GS1 DataBar (formerly RSS) variants

2D:

PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code

Indicator Interface

To control external Beeper and LED

Interface supported

RS-232 (3.3V TTL-level)

Scan mode

Good-Read off, Momentary, Alternate, Continuous, Time-Out Off, Host

Dimensions

Image module: 10.0 mm × 20.0 mm × 16.2 mm (Height × Width × Depth)

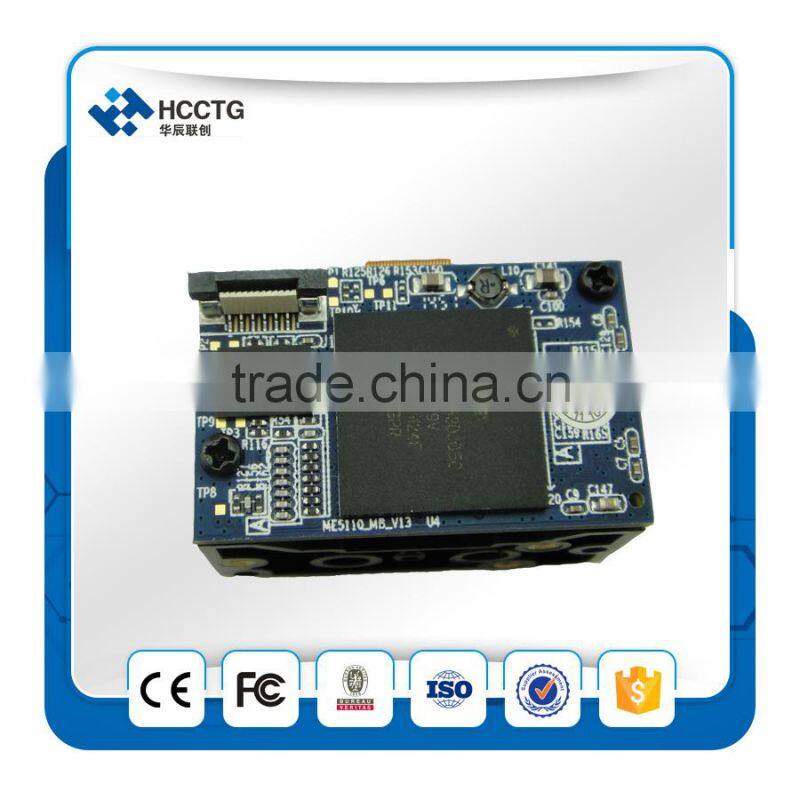

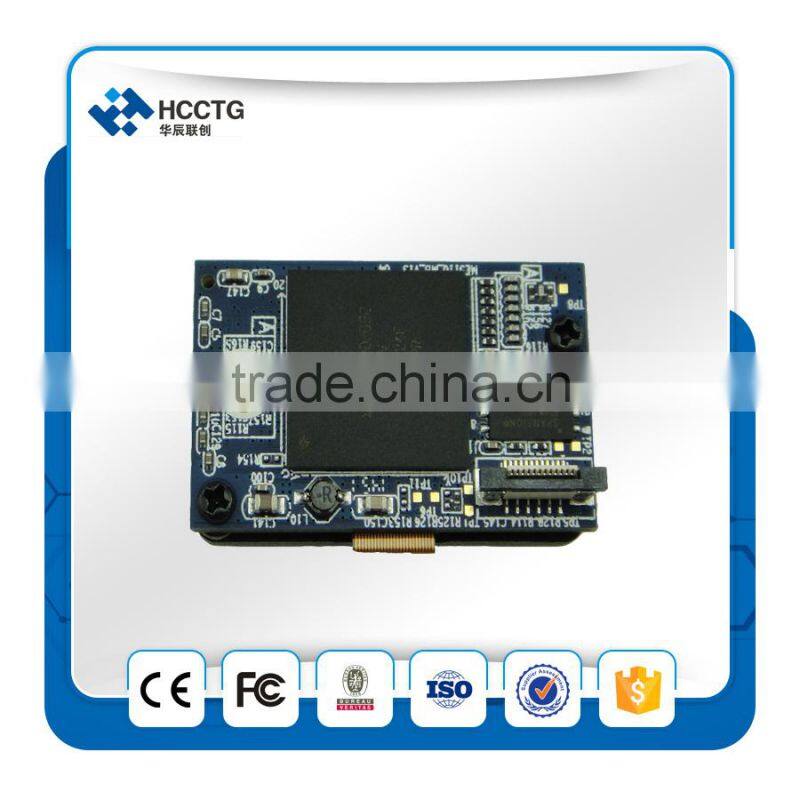

Decode board: 23.3 mm × 38.4 mm × 7.9 mm (Height × Width × Depth)

Weight

Image module: 8 g

Decode board: 7 g

Cable

Tapered 12-pin flex strip (12 × 0.5 mm)

Min. element width

3.5 mil, 1 mil = 0.0254 mm

Decoding depth

3.5mil Code128 ( 9 chars): 1.5cm – 3.5cm

5mil Code39 (20 chars): 0.8cm – 5.5cm

13mil UPC (12 chars): 0.7cm – 16.5cm

20mil Code39 ( 5 chars): 3.5cm – 21.0cm

6.7mil PDF417 (20 chars): 0.0cm – 7.5cm

10 mil DM (20 chars): 0.0cm – 11.5cm

20 mil QR (20 chars): 0.0cm – 19.5cm

Temperature

Operating: -10 °C to 60 °C (-4 °F to 140 °F)

Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Humidity

5% to 90% (non-condensing)

Programming method

Manual (scanning special barcodes in sequence)

Sending commands via RS-232 interface

Firmware upgrade

Online

Safety

Laser Safety: EN60825-1, Class 1

EMC: EN 55022, EN 55024

ESD protection: EN 55024 (IEC 61000-4-2, contact discharge: ±2kV, air

discharge: ±8kV), IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC

61000-4-11
