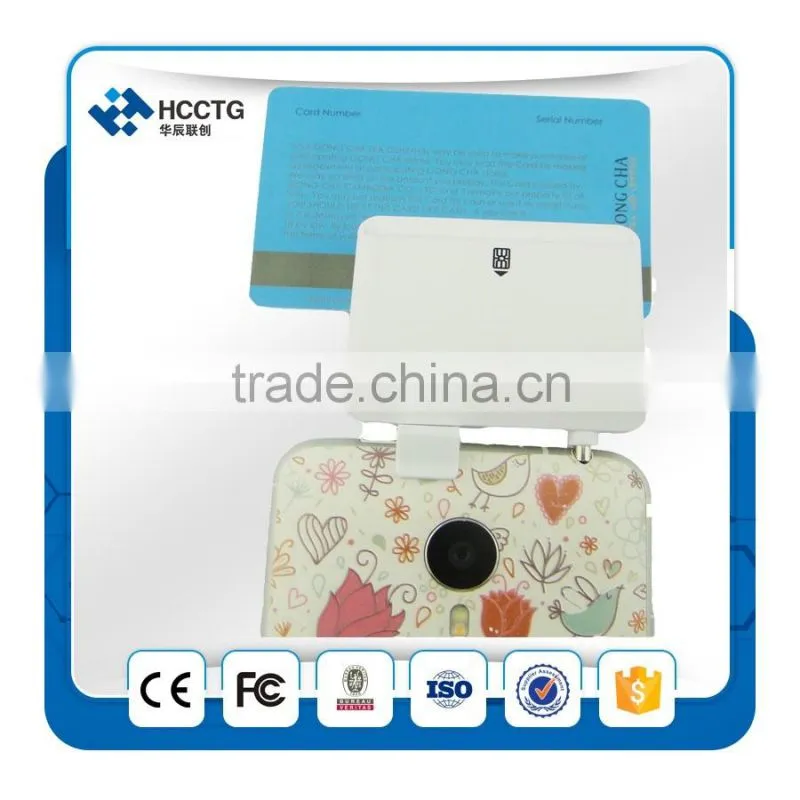

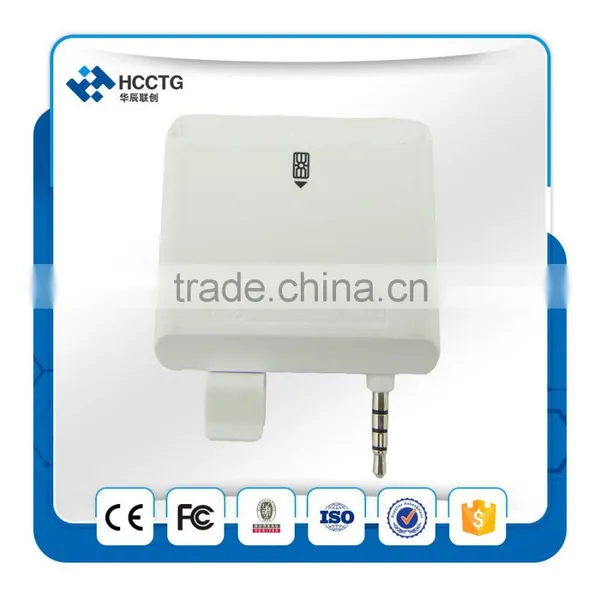

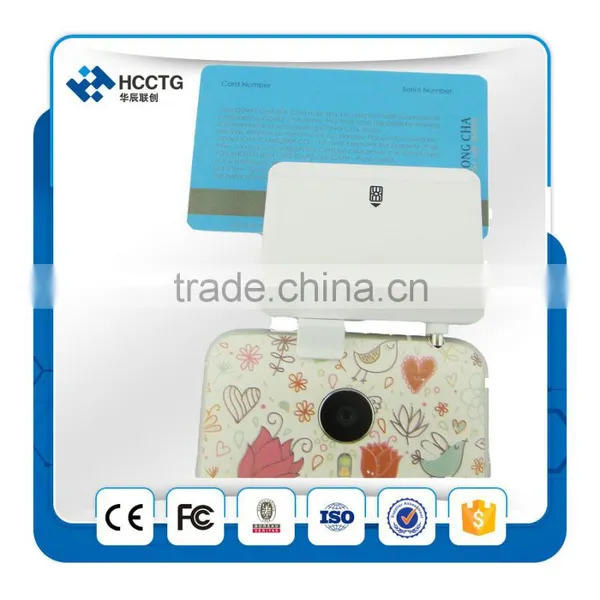

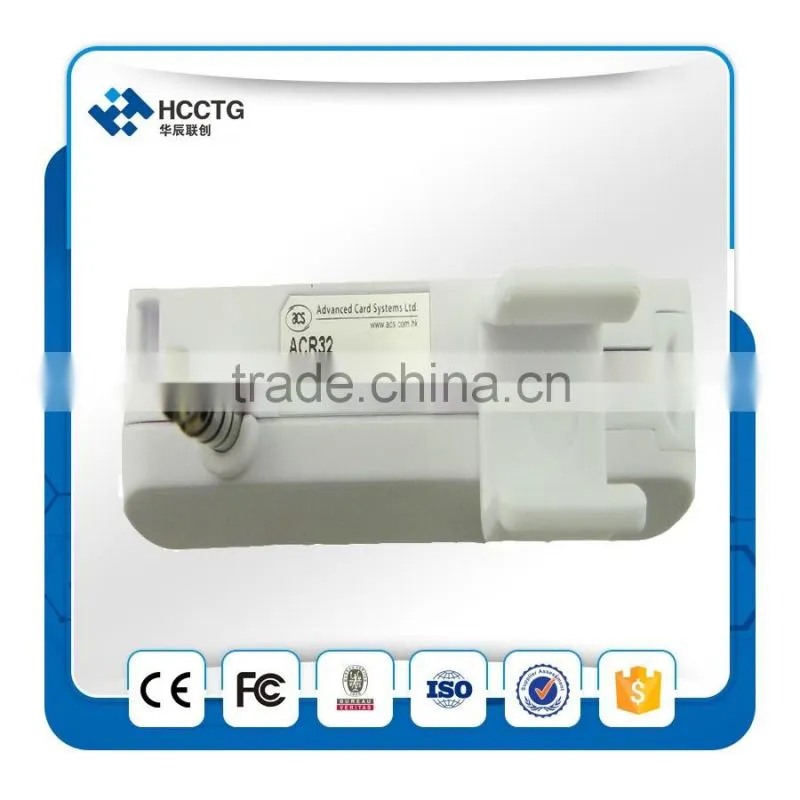

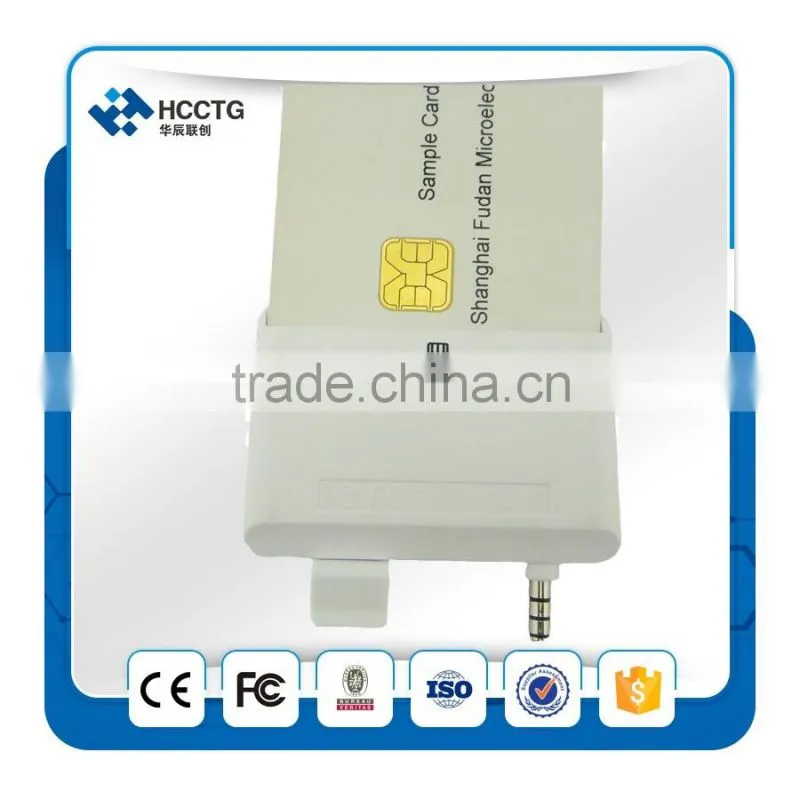

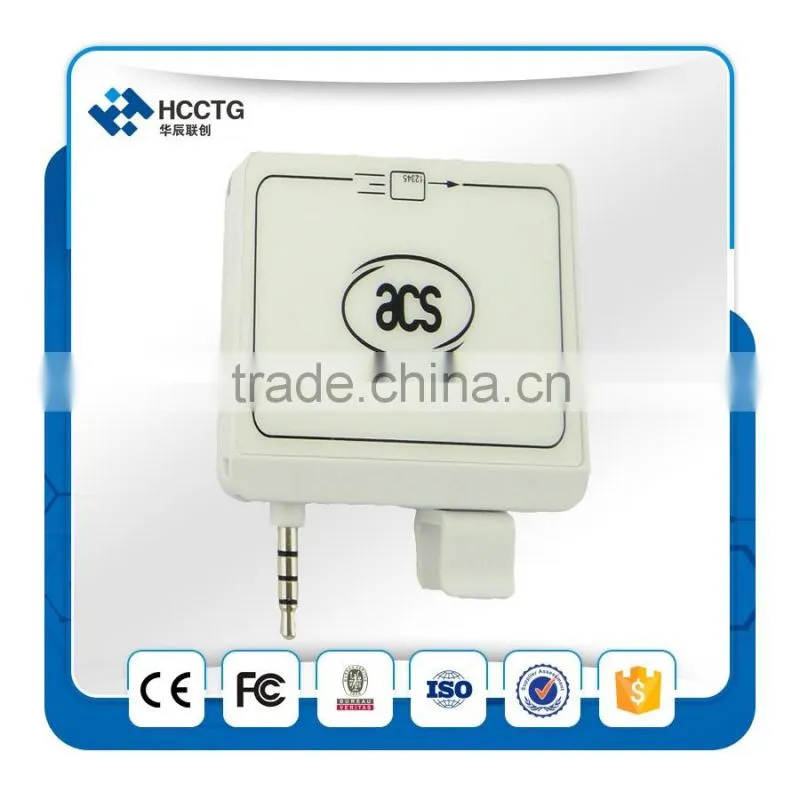

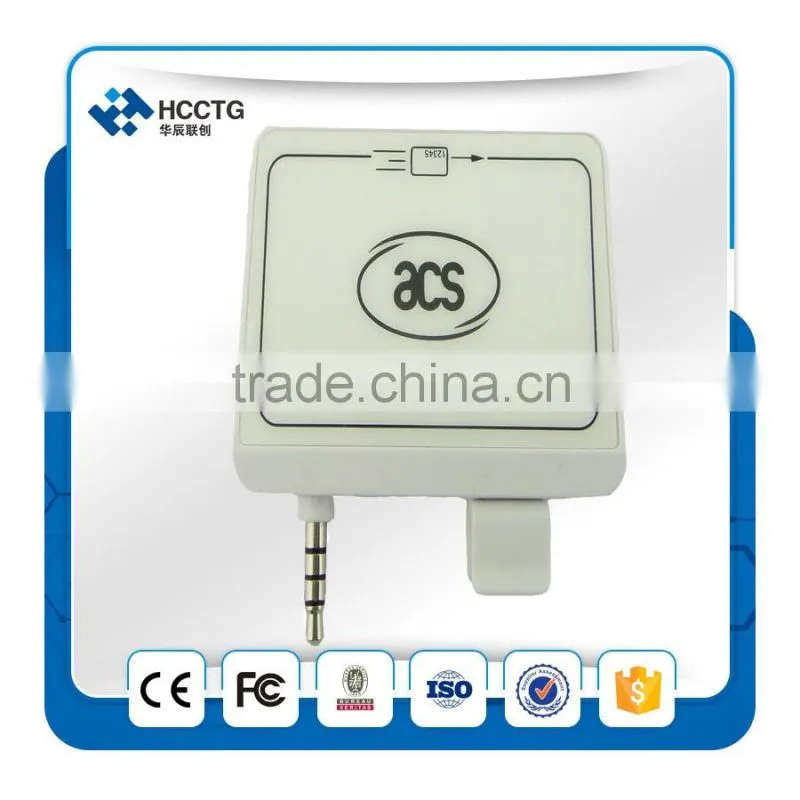

mPOS reader ACR32 Mobile Mate Card Reader
Features
3.5mm Audio Jack Interface
USB-Powered (PC-linked Mode):
USB 2.0 Full Speed Interface
CCID Compliance
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Battery-Powered:
Powered by a Lithium-ion battery (rechargeable through PC-linked
mode)
Smart Card Reader:
Supports ISO7816 CLass A, B and C (5 V, 3V, 1.8 V) cards
Supports microprocessor cards with T=0 and T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Magnetic Stripe Card Reader:
Reads up to two tracks of card data (Track 1 Track 2)
Capable of bidirectional reading
Supports AES128 encryption algorithm
Supports DUKPT Key Management System
Supports ISO 7810 7811 magnetic cards
Supports Hi-Coercivity and Low-Coercivity magnetic cards
Supports JIS1 and JIS2
Applications
Mobile Banking & Payment
e-Healthcare
e-Purse & Loyalty
Tech Specs
Dimensions 60.0mm (L) x 45.0mm (W) x 16.0mm (H)
Interface 3.5mm 4-pole audio jack
USB Full Speed
Power Lithium-ion battery (rechargeable through USB)
Supply Voltage 3.2 to 3.7 V DC
Supply Current 5 mA
Operating Temperature 0-50°C
Card Swipe Speed Max. 10 IPS (inches per second)
Card Swipe Cycles Min. 500,000
Contact Card Insertion
Cycles
Min. 100,000
Magnetic Stripe Card
Support
ISO7810 / ISO7811 cards
Hi-coercivity and Low-coercivity cards
JIS1 and JIS2 cards
Smart Card Interface
Support
ISO7816 Class A, B and C cards
Microprocessor cards with T=0 and T=1 protocol
Memory cards
Compliance /
Certifications
EN60950/IEC 60950, ISO7816, CE, FCC, VCCI, PC/SC, CCID, EMV
Contact Level 1, RoHS 2, REACH, USB Full Speed
Microsoft WHQL: 2000, XP, Vista, 7, 8, 8.1, Server 2003, Server 2008,
Server 2008 R2, Server 2012, Server 2012 R2
Operating System
Support
Windows CE, 98, ME, 2000, 2003, 2003 R2, XP, Vista, 2008, 7, 8, 8.1
Windows XP x64, 2003 x64, 2003 R2 x64, Vista x64, 2008 x64, 2008
R2 x64, 7 x64, 8 x64, 8.1 x64, 2012 x64, 2012 R2 x64
Mac
Linux
Android™ 2.0 and above
iOS 5.0 and above
